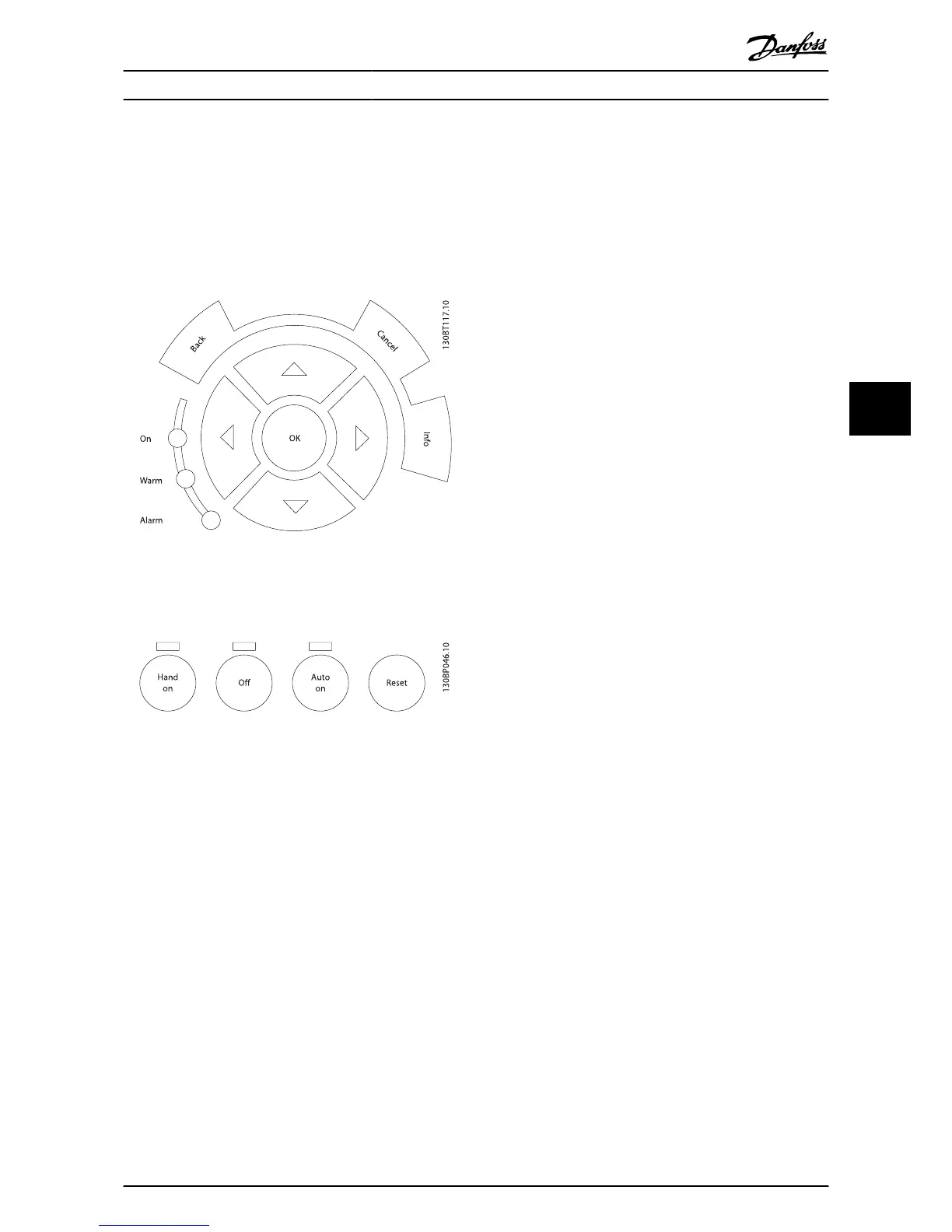

Navigation Keys
The four navigation arrows are used to navigate between the
different choices available in [Quick Menu], [Main Menu] and
[Alarm Log]. Use the keys to move the cursor.
[OK] is used for choosing a parameter marked by the cursor
and for enabling the change of a parameter.
Operation Keys for local control are found at the bottom of the
control panel.
[Hand On]
enables control of the frequency converter via the GLCP.
[Hand On] also starts the motor, and it is now possible to enter
the motor speed data by means of the arrow keys. The key can
be selected as Enable [1] or Disable [0] via par. 0-40 [Hand on]
Key on LCP.
The following control signals will still be active when [Hand
On] is activated:
•
[Hand On] - [Off] - [Auto on]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select lsb - Set-up select msb
•
Stop command from serial communication
•
Quick stop
•
DC brake
NOTE
External stop signals activated by means of control
signals or a serial bus will override a “start” command via
the LCP.
[Off]
stops the connected motor. The key can be selected as Enable
[1] or Disable [0] via par. 0-41 [Off] Key on LCP. If no external
stop function is selected and the [Off] key is inactive the motor
can only be stopped by disconnecting the mains supply.
[Auto on]
enables the frequency converter to be controlled via the
control terminals and/or serial communication. When a start
signal is applied on the control terminals and/or the bus, the
frequency converter will start. The key can be selected as
Enable [1] or Disable [0] via par. 0-42 [Auto on] Key on LCP.
NOTE
An active HAND-OFF-AUTO signal via the digital inputs
has higher priority than the control keys [Hand on] –
[Auto on].
[Reset]
is used for resetting the frequency converter after an alarm
(trip). It can be selected as Enable [1] or Disable [0] via
par. 0-43 [Reset] Key on LCP.
The parameter shortcut can be carried out by holding down
the [Main Menu] key for 3 seconds. The parameter shortcut
allows direct access to any parameter.
