Danfoss FC 101 User Manual

I2 enclosure
130BC299.10
7
3
2
5
1
8
4
6
1 RS-485
2 Mains
3 Ground
4 Cable clamps
5 Motor
6 UDC
7 Relays
8 I/O

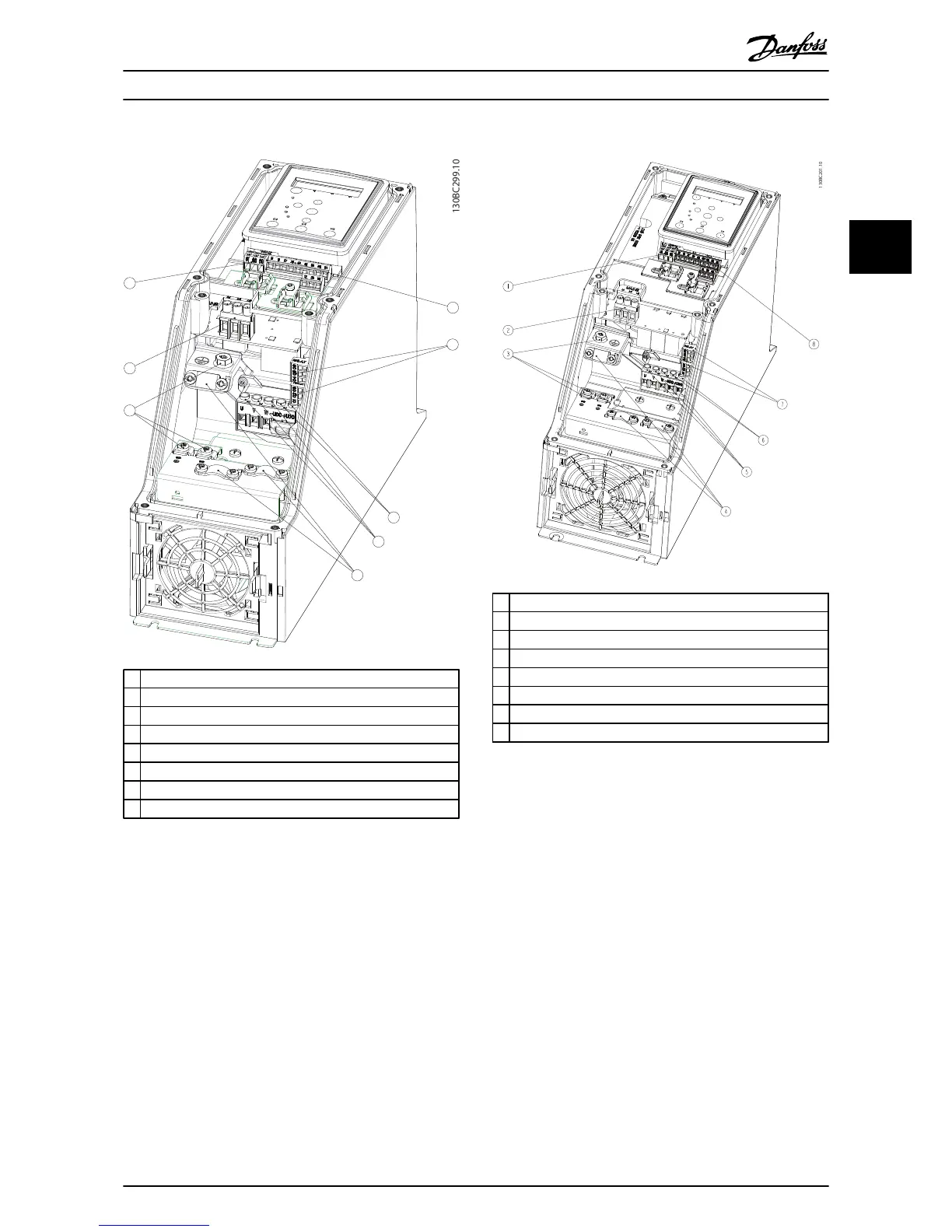

Illustration 3.13 I2 Enclosure
IP54, 380-480 V, 0.75-4.0 kW (1-5 HP)
I3 enclosure
130BC201.10
1 RS-485
2 Mains
3 Ground
4 Cable clamps
5 Motor
6 UDC
7 Relays
8 I/O
Illustration 3.14 I3 Enclosure
IP54, 380-480 V, 5.5-7.5 kW (7.5-10 HP)
Installation Quick Guide
MG18A602 Danfoss A/S © 08/2014 All rights reserved. 15
3 3

Danfoss FC 101 Specifications

General

Model	FC 101
Manufacturer	Danfoss
Protection Class	IP20
Relative Humidity	95% (non-condensing)
Communication Interface	RS-485
