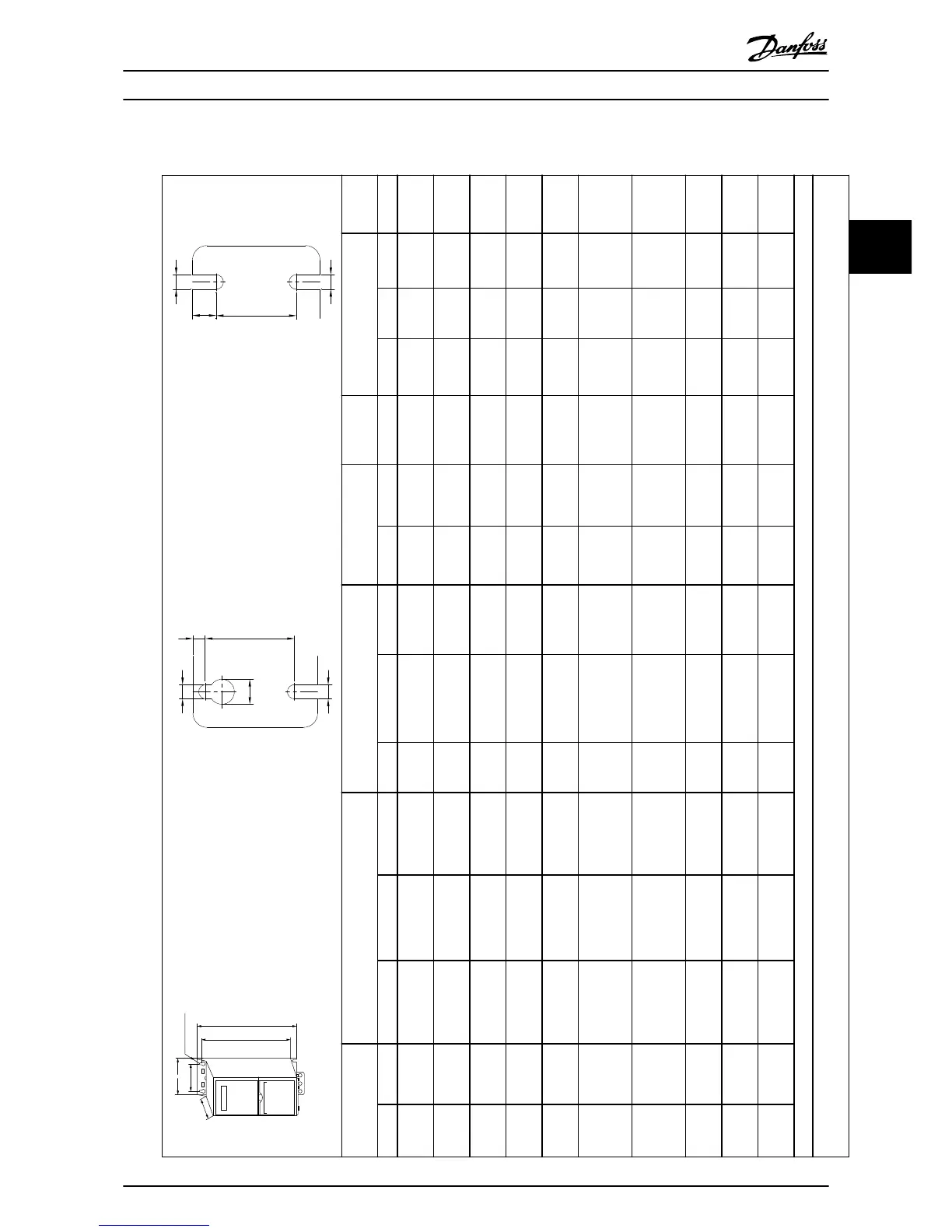

3.1.2 Frequency Converter Dimensions
A
a
b
B
C
D
130BB614.10
e
f
a
d
e
130BC205.10
e
f
a
e
130BC246.10
Enclosure Power [kW(HP)] Height [mm (in)] Width [mm(in)] Depth
[mm(in)]
Mounting hole [mm(in] Max.
Weight
Size IP Class 3x200-240 V 3x380-480 V 3x525-600 V A
A
1)
a B b C d e f kg(lb)
H1 IP20 0.25–1.5 (0.33–
2)
0.37–1.5 (0.5–2) 195 (7.7) 273 (10.7) 183 (7.2) 75 (3.0) 56 (2.2) 168 (6.6) 9 (0.35) 4.5
(0.18)
5.3 (0.21) 2.1 (4.6)
H2 IP20 2.2 (3) 2.2–4.0 (3–5) 227 (8.9) 303 (11.9) 212 (8.3) 90 (3.5) 65 (2.6) 190 (7.5) 11 (0.43) 5.5
(0.22)
7.4 (0.29) 3.4 (7.5)
H3 IP20 3.7 (5) 5.5–7.5 (7.5-10) 255
(10.0)
329 (13.0) 240 (9.4) 100 (3.9) 74 (2.9) 206 (8.1) 11 (0.43) 5.5
(0.22)
8.1 (0.32) 4.5 (9.9)
H4 IP20 5.5–7.5 (7.5-10) 11–15 (15-20) 296
(11.7)
359 (14.1) 275 (10.8) 135 (5.3) 105 (4.1) 241 (9.5) 12.6
(0.50)
7 (0.28) 8.4 (0.33) 7.9 (17.4)
H5 IP20 11 (15) 18.5–22 (25-30) 334
(13.1)
402 (15.8) 314 (12.4) 150 (5.9) 120 (4.7) 255 (10) 12.6
(0.50)
7 (0.28) 8.5 (0.33) 9.5 (20.9)
H6 IP20 15–18.5 (20–
25)
30–45 (40–60) 18.5–30
(25-40)
518
(20.4)
595 (23.4)/635
(25)
(45 kW)
495 (19.5) 239 (9.4) 200 (7.9) 242 (9.5) 8.5
(0.33)
15 (0.6) 24.5 (54)
H7 IP20 22–30 (30–40) 55–75 (70–100) 37–55 (50–70) 550
(21.7)
630 (24.8)/690
(27.2)
(75 kW)
521 (20.5) 313 (12.3) 270 (10.6) 335 (13.2) 8.5
(0.33)
17 (0.67) 36 (79)
H8 IP20 37–45 (50–60) 90 (125) 75–90 (100–
125)
660 (26) 800 (31.5) 631 (24.8) 375 (14.8) 330 (13) 335 (13.2) 8.5
(0.33)
17 (0.67) 51 (112)
H9 IP20 2.2–7.5 (3–10) 269
(10.6)
374 (14.7) 257 (10.1) 130 (5.1) 110 (4.3) 205 (8) 11 (0.43) 5.5
(0.22)
9 (0.35) 6.6 (14.6)
H10 IP20 11–15 (15-20) 399
(15.7 (
419 (16.5) 380 (15) 165 (6.5) 140 (5.5) 248 (9.8) 12 (0.47) 6.8
(0.27)
7.5 (0.30) 12 (26.5)
1) Including decoupling plate
The dimensions are only for the physical units. When installing in an application it is necessary to allow space above and below the units for cooling. The amount of space for free air passage
is listed in Table 3.1.
Table 3.3 Dimensions, Enclosure Size H1-H10
Installation Quick Guide
MG18A602 Danfoss A/S © 08/2014 All rights reserved. 7
3 3
