Alternate Fuses 525 - 600V drives 50 hp
to 800 hp (37 kW - 630 kW)
FC 300 Bussmann SIBA
Ferraz-
Shawmut
kW JFHR2 Type RK1 Type RK1
P37K 170M3013 2061032.125 6.6URD30D08A0125
P45K 170M3014 2061032.160 6.6URD30D08A0160
P55K 170M3015 2061032.200 6.6URD30D08A0200
P75K 170M3015 2061032.200 6.6URD30D08A0200
P90K 170M3016 2061032.250 6.6URD30D08A0250
P110K 170M3017 2061032.315 6.6URD30D08A0315
P132K 170M3018 2061032.350 6.6URD30D08A0350
P160K 170M4011 2061032.350 6.6URD30D08A0350
P200K 170M4012 2061032.400 6.6URD30D08A0400
P250K 170M4014 2061032.500 6.6URD30D08A0500
P315K 170M5011 2062032.550 6.6URD32D08A0550
P355K 170M4017 2061032.700 6.9URD31D08A0700
170M5013
P400K 170M4017 2061032.700 6.9URD31D08A0700
170M5013
P500K 170M6013 2063032.900 6.9URD33D08A0900
P560K 170M6013 2063032.900 6.9URD33D08A0900
170M fuses shown from Bussmann use the -/80 visual indicator. –TN/80 Type T, -/110
or TN/110 Type T indicator fuses of the same size and amperage may be substituted.
170M fuses from Bussmann when provided in the 525-600/690 V FC-302 P37K-P75K,
FC-102 P75K, or FC-202 P45K-P90K drives are 170M3015.
170M fuses from Bussmann when provided in the 525-600/690V FC-302 P90K-P132,
FC-102 P90K-P132, or FC-202 P110-P160 drives are 170M3018.
170M fuses from Bussmann when provided in the 525-600/690V FC302 P160-P315,
FC-102 P160-P315, or FC-202 P200-P400 drives are 170M5011.

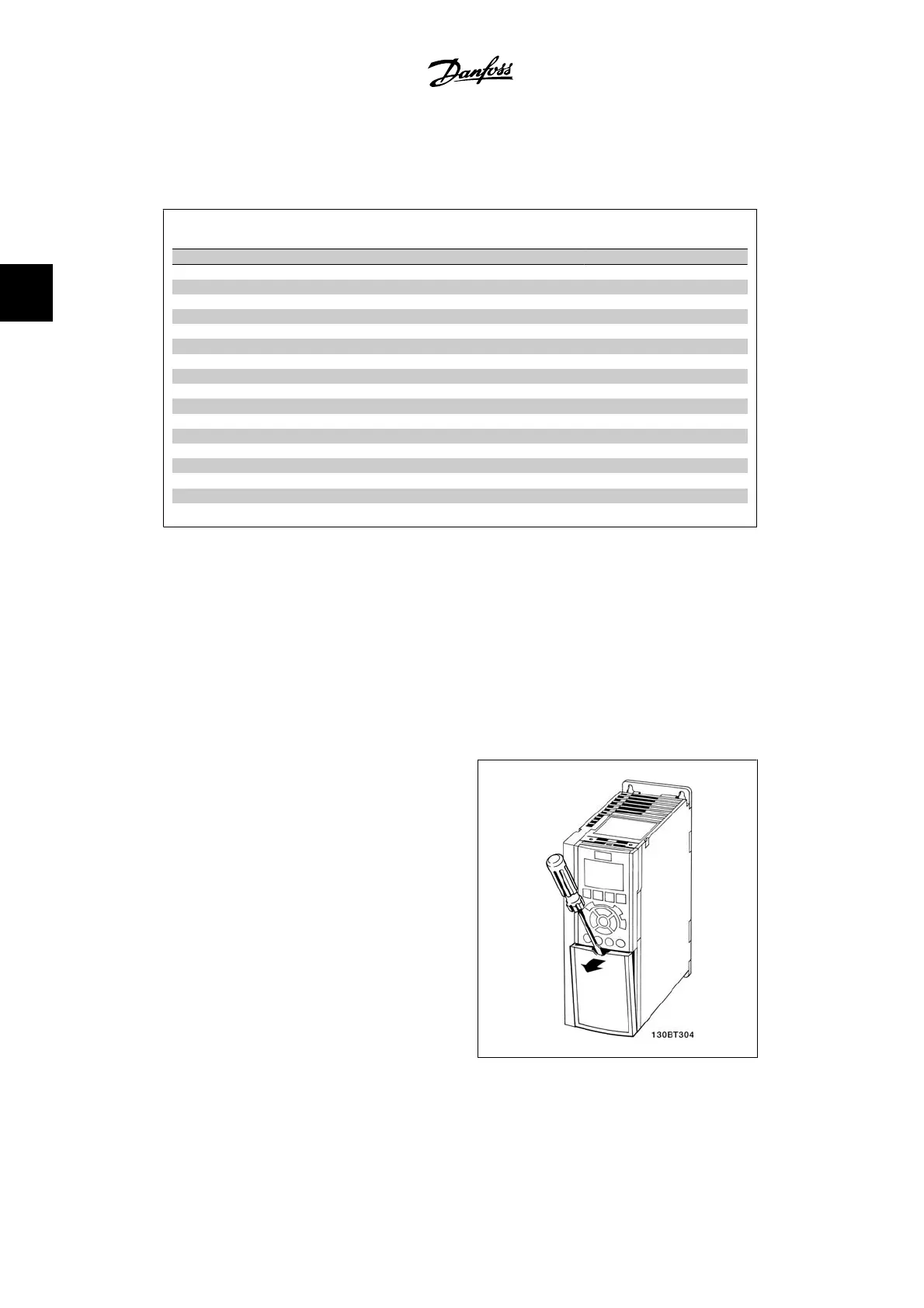

3.3.5. Access to Control Terminals
All terminals to the control cables are located
underneath the terminal cover on the front of
the adjustable frequency drive. Remove the
terminal cover with a screwdriver.
