FC 300 Instruction Manual
How to Install

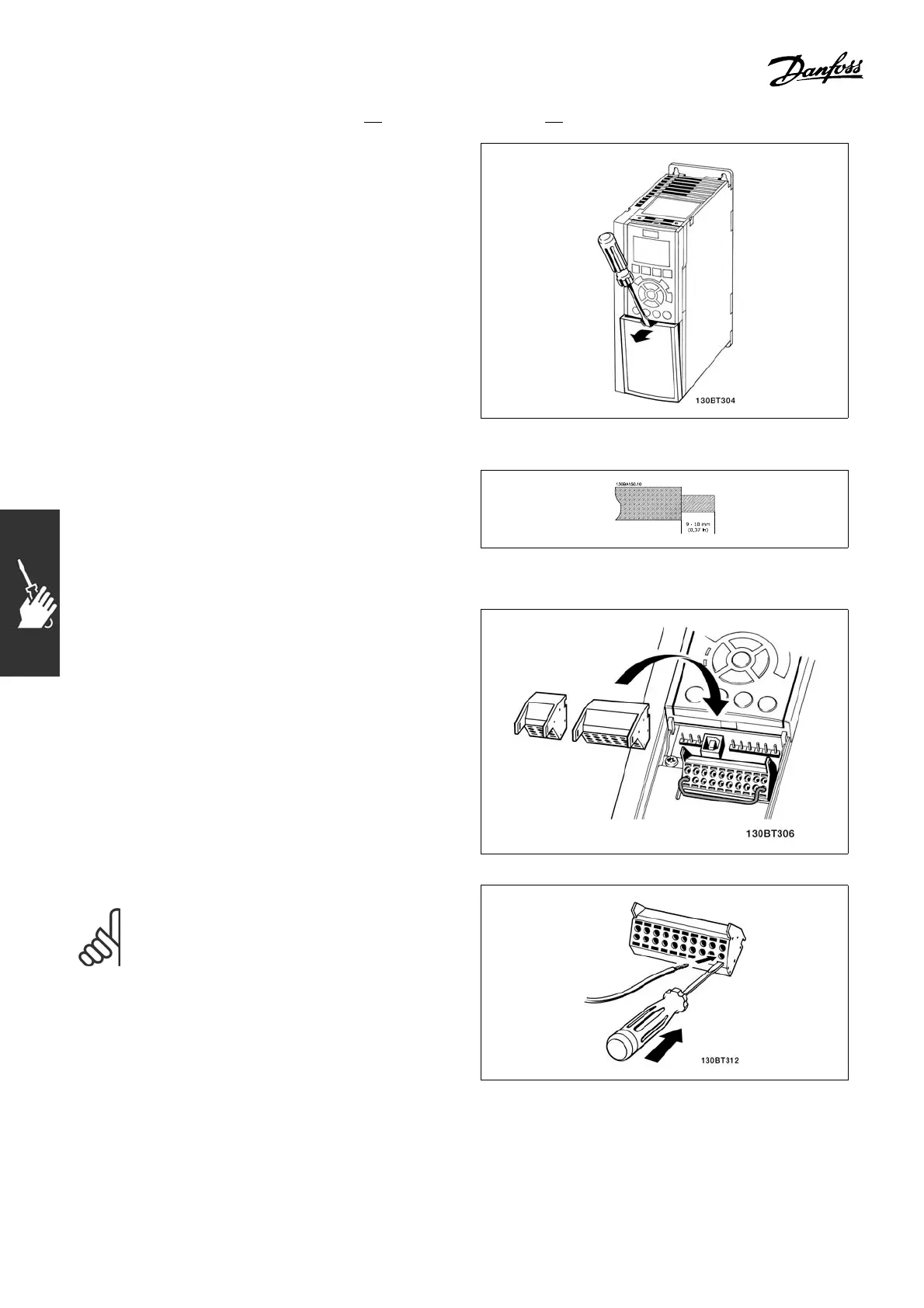

" Access to control terminals
All terminals to the control cables are located
underneath the terminal cover on the front of the
FC 300. Remove the terminal cover by means
of a screwdriver (see illustration).
" Electrical Installation, Control Terminals
1. Mount terminals from the accessory bag
to the front of the FC 300.
2. Connect terminals 18, 27, and 37 to +24 V
(terminal 12/13) with the control cable.
Default settings:
18 = start
27 = coast inverse
37 = safe stop inverse
NOTE
To mount t
he cable to the terminal:
1. Strip isolation of 0.35 - 0 .4 in. (9-10 mm)
2. Insert a screwdriver in the square hole.
3. Insert th
e c ab le in the adjacent circular hole.
4. Remove the screwdriver. The cable is now
mounted to the terminal.
20
MG.33.A4.22 - VLT is a registered Danfoss trademark
