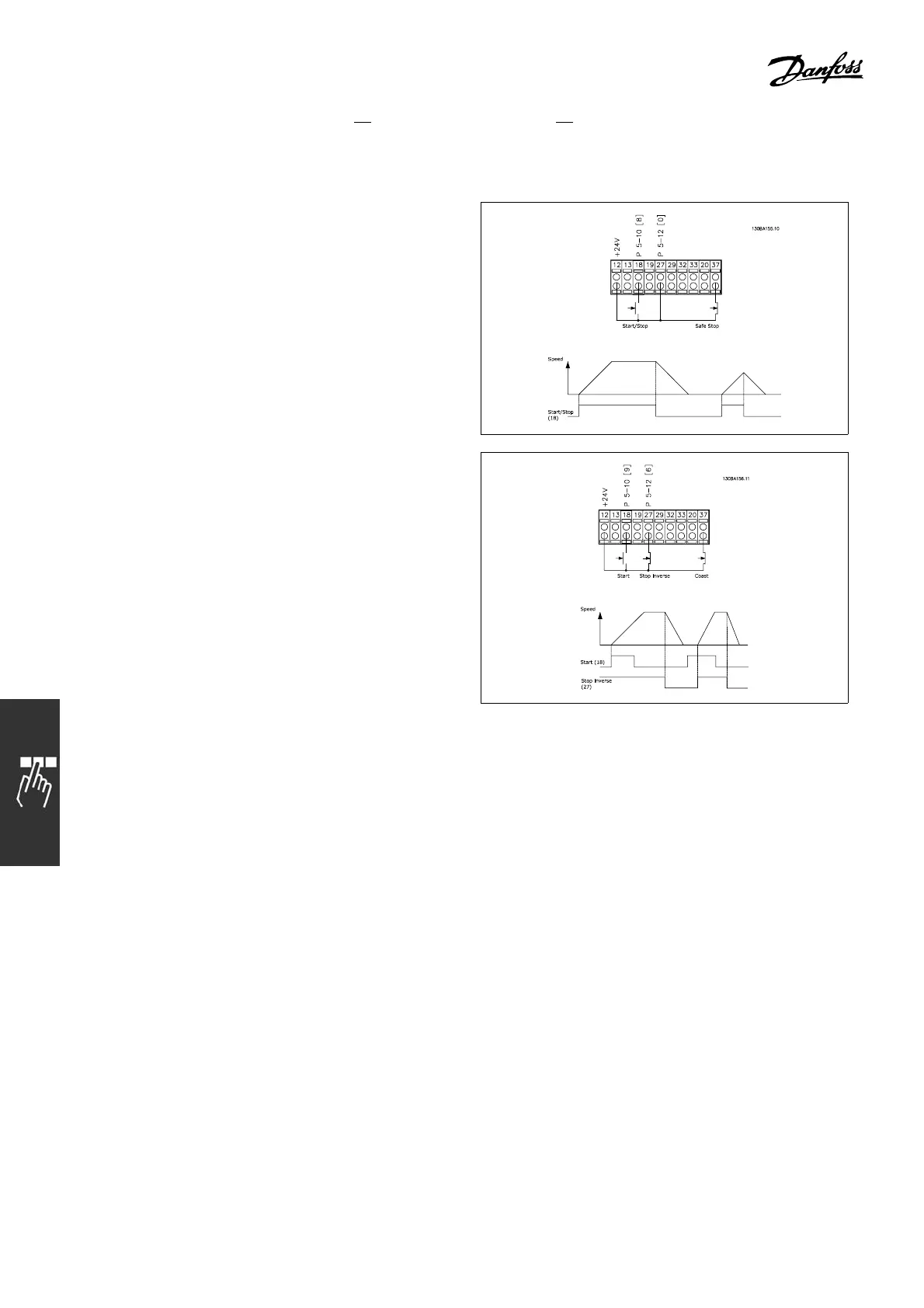

FC 300 Instruction Manual
How to Program
" Connection Examples
" Start/Stop
Terminal 18 = start/stop par. 5-1 0 [8] Start
Terminal 27 = No operation p ar. 5-12 [0] No
operation (Default coast inverse
Terminal 37 = coasting stop (safe)
Par. 5-10 Digital Input = St art (default)
Par. 5-12 Digital Input = coast inverse (default)
" Pulse start/stop
Terminal 18 = latched start
Terminal 27= stop inverse
Par. 5 Digital input = Pulse start -10
Par. 5 Digital input = Stop inverted -12
40
MG.33.A4.22 - VLT is a registered Danfoss trademark
