FC 300 Instruction Manual
How to Install
NOTE

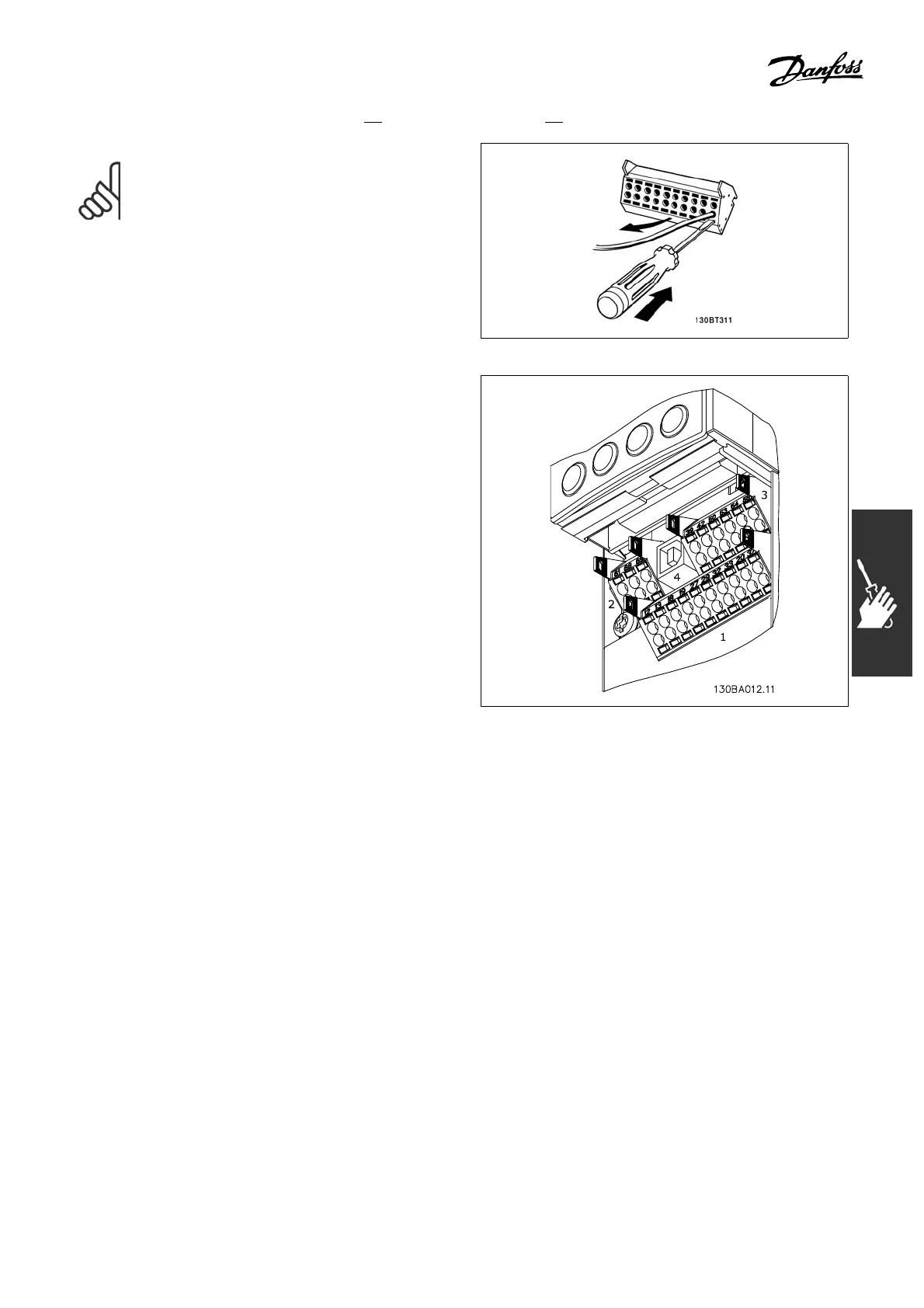

To re m ove the c able from the terminal:
1. Insert a screwdriver in the square hole.
2. Pull out the cable.
" Control Terminals
Control Terminals (FC 301)
Drawing reference numbers:
1. 8 pole plug digital I/O.
2. 3poleplugRS485Bus.
3. 6poleanalogI/O.
4. USB Connection.
Control Terminals (FC 302)
Drawing reference numbers:
1. 10 pole plug digital I/O.
2. 3poleplugRS485Bus.
3. 6poleanalogI/O.
4. USB Connection.
Control terminals
21
