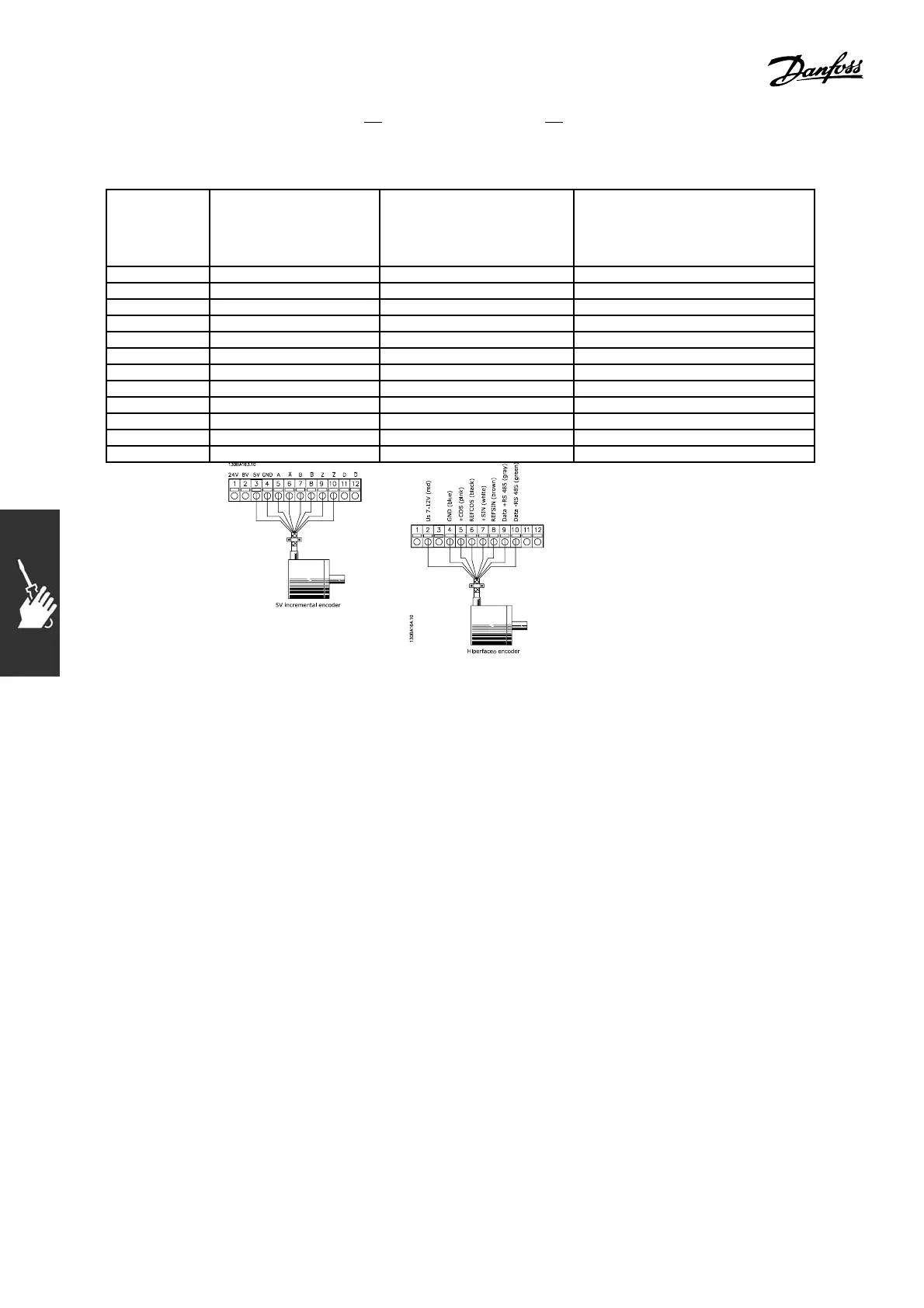

FC 300 Instruction Manual
How to Install
Connector
Designa-
tion
X31
Incremental
Encoder
SinCos Encoder
Hiperface
Description
1 NC 24 V Output
2 NC 8VOutput
3 5VCC 5VOutput
4 GND GND
5 Ainput +COS Ainput
6 Ainvinput REFCOS Ainvinput
7 Binput +SIN B input
8 Binvinput REFSIN Binvinput
9 Zinput +Data RS485 Z input OR +Data RS485
10 Zinvinput -Data RS485 Z input OR -Data RS485
11 NC NC Future u se
12 NC NC Future u se
Max. 5V on X31.5-12
28
MG.33.A4.22 - VLT is a registered Danfoss trademark
