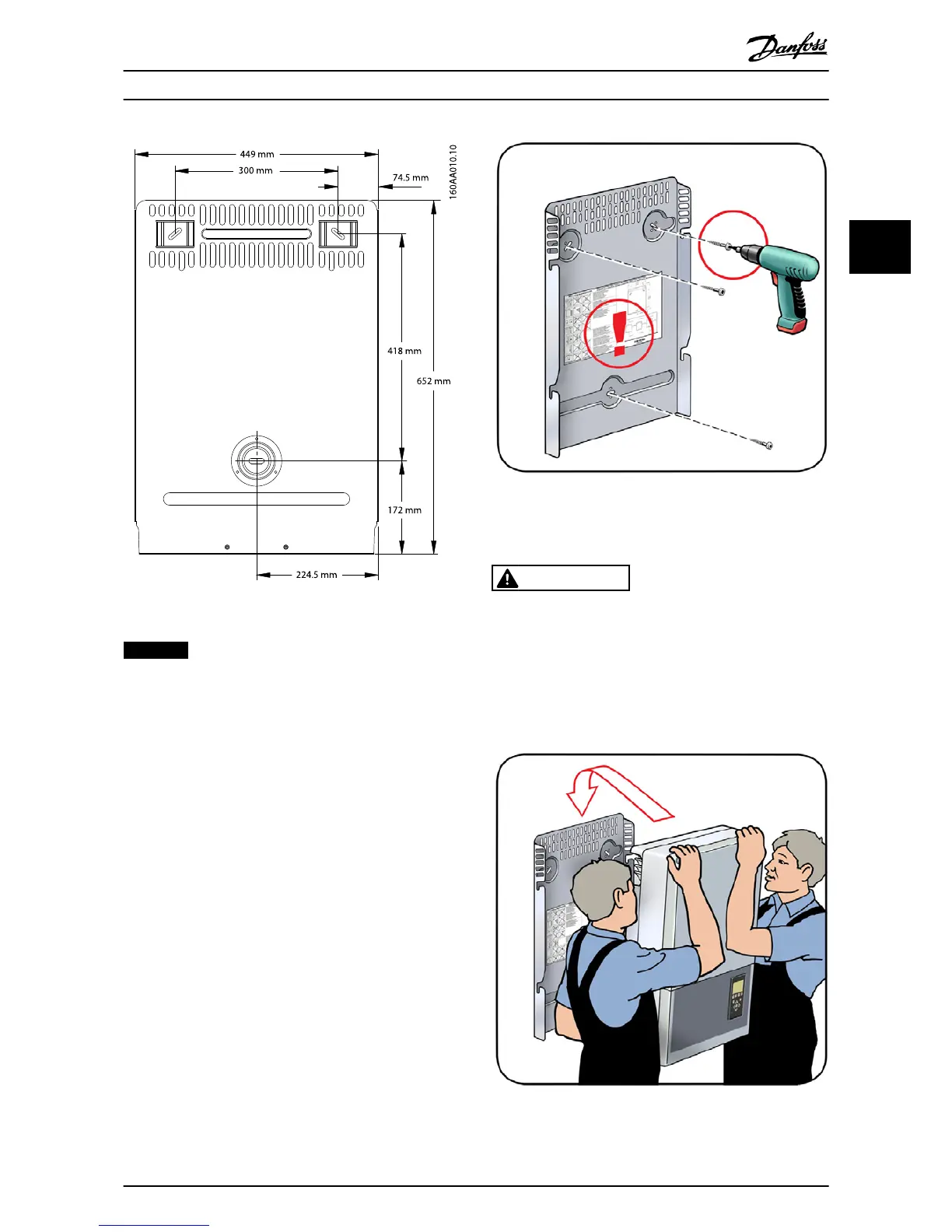

Illustration 2.9 Mounting Plate
NOTICE
Use of the mounting plate delivered with the inverter is
mandatory.
Mount the mounting plate:
•
Mount in the defined environment.
•
Use screws and rawl plugs that can safely carry
the weight of the inverter.
•
Ensure that the mounting plate is correctly
aligned.
•
Observe safe clearances when installing one or
more inverters, to ensure adequate airflow.
Clearances are specified in Illustration 2.8 and the
mounting plate label.
•
Mounting multiple inverters in a single row is
recommended. Contact the supplier for
guidelines, when mounting inverters in more
than one row.
•
Ensure adequate clearance at the front, for
service access to the inverter.
.
Illustration 2.10 Mounting the Mounting Plate
2.3 Mounting the Inverter
CAUTION
For safe handling of the inverter, 2 people must carry
the unit, or a suitable transport trolley must be used.
Wear safety boots.
Procedure:
1. Lift the inverter. Locate the slots on the side of
the mounting plate.
Illustration 2.11 Position the Inverter
Installation
L00410568-02_02 / Rev. date: 2013-12-10 9
2
