2. On the inverter, position the side screws against
the mounting plate slots.
3. Push the inverter as shown so the side screws
slide into the 2 lower slots, then the 2 upper
slots. See Illustration 2.12 and Illustration 2.13.

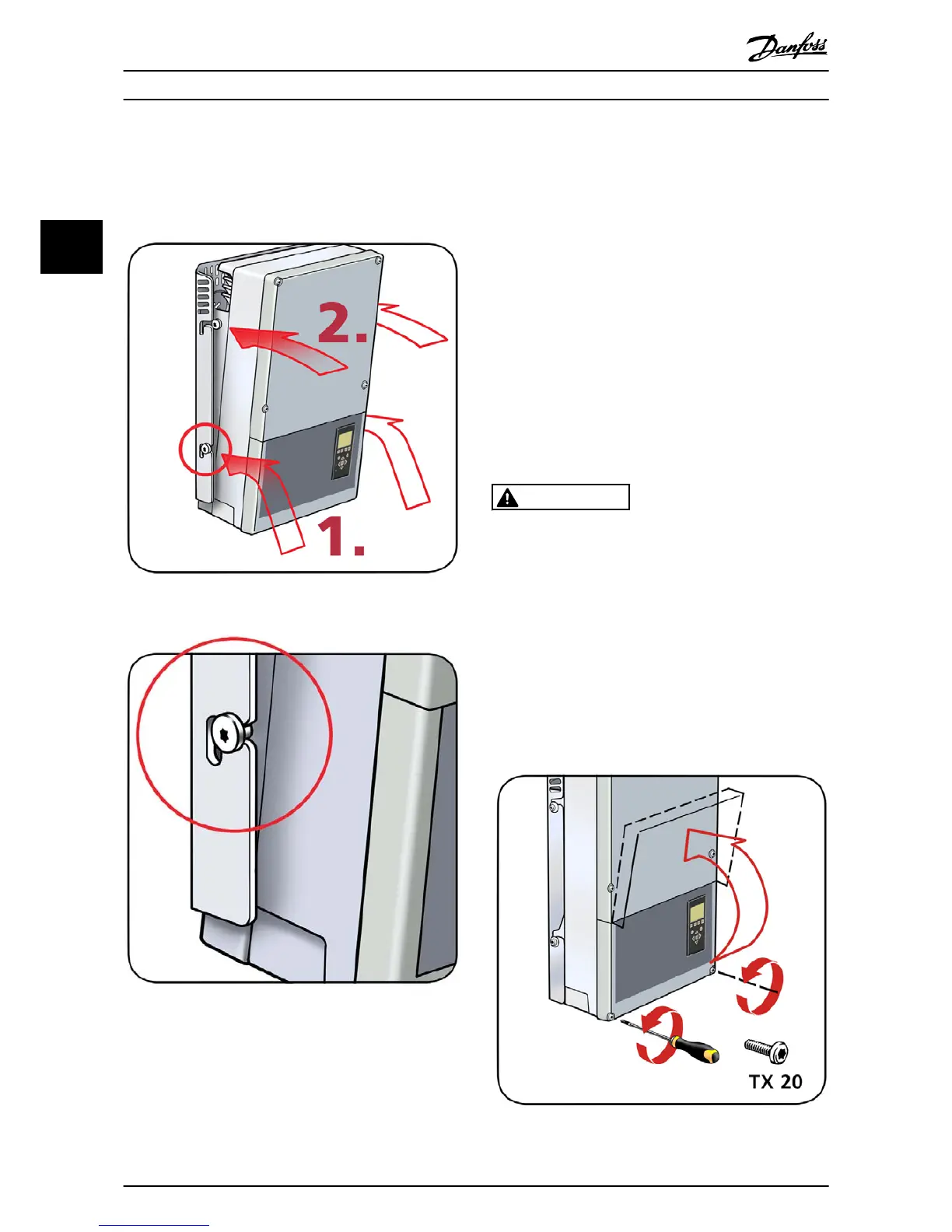

Illustration 2.12 Slide into Slots
Illustration 2.13 Detail of Sliding into Slot
4. Check that the 4 side screws sit securely in the
mounting plate slots.
5. Release the inverter.
Anti-theft Protection (Optional)
To protect the inverter against theft, fasten as follows:
1. Use 2 security screws, M5 x 8-12 (not supplied).
2. Insert screws through the pre-drilled anti-theft
holes (see Illustration 1.3), through the mounting
plate to the wall.
3. Tighten screws.
2.4 Removing the Inverter
Procedure:
1. Perform removal in the reverse order of
mounting.
2. Lift the inverter. 2 people must carry the unit.
3. With a firm grip at the base of the inverter, lift
and slide the inverter out of the mounting plate
slots.
4. Lift the inverter free of the mounting plate.
2.5 Access to the Installation Area
CAUTION
Observe ESD safety regulations. Discharge any electro-
static charge by touching the grounded enclosure,
before handling any electronic component.
Procedure:
1. To open the cover, loosen the 2 lower front
screws using a TX 20 screwdriver. The screws
cannot fall out.
2. Lift the cover 180 degrees. A magnet holds the
cover open.
3. To close the cover, lower it into place and fasten
the 2 front screws.
Illustration 2.14 Loosen Front Screws and Lift Cover
Installation
