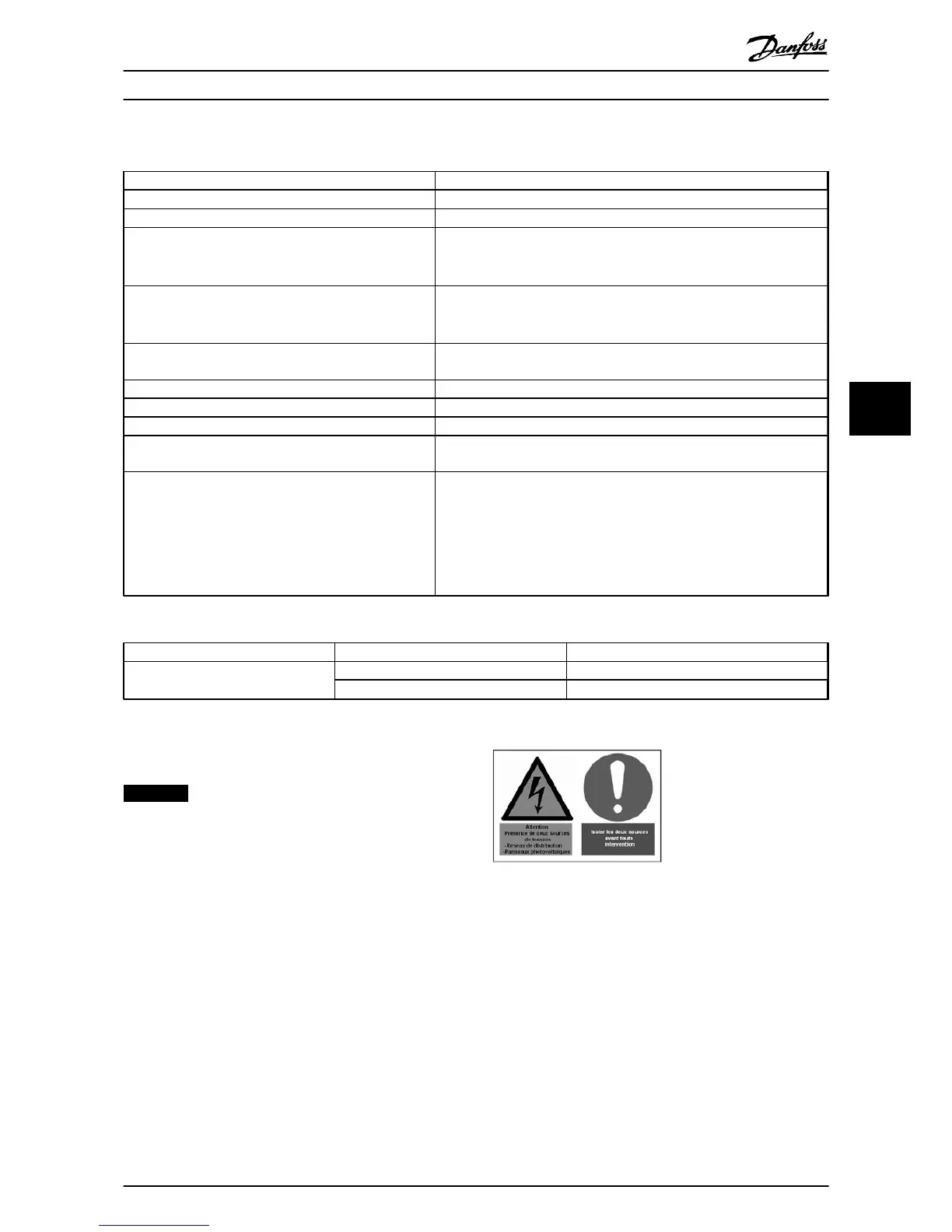

5.4 Installation Conditions
Parameter Specification
Temperature
−
25 °C - +60 °C (for temperature derating see the FLX Series Design Guide.)
Relative humidity 95 % (non-condensing)
Pollution degree PD2
Environmental class according to IEC IEC60721-3-3
3K6/3B3/3S3/3M2
Air quality - general ISA S71.04-1985
Level G2 (at 75% RH)
Air quality - coastal, heavy industrial and agricultural zones Must be measured and classified acc. to ISA S71.04-1985
Vibration 1G
Observe product ingress protection class IP65
Max. operating altitude 2000 m above sea level.
PELV protection is effective up to 2000 m above sea level only.
Installation Avoid constant stream of water.
Avoid direct sunlight.
Ensure adequate air flow.
Mount on non-flammable surface.
Mount upright on vertical surface.
Prevent dust and ammonia gases.
The FLX inverter is an outdoor unit.
Table 5.7 Conditions for Installation
Parameter Condition Specification
Mounting plate Hole diameter 30 x 9 mm
Alignment
Perpendicular
±
5° all angles
Table 5.8 Mounting Plate Specifications
5.4.1 France UTE Requirements
NOTICE
In France, observe the UTE C 15-712-1 and NF C 15–100
requirements.
For installation in France, apply warning label to front of
inverter.
Illustration 5.1 Warning Label
