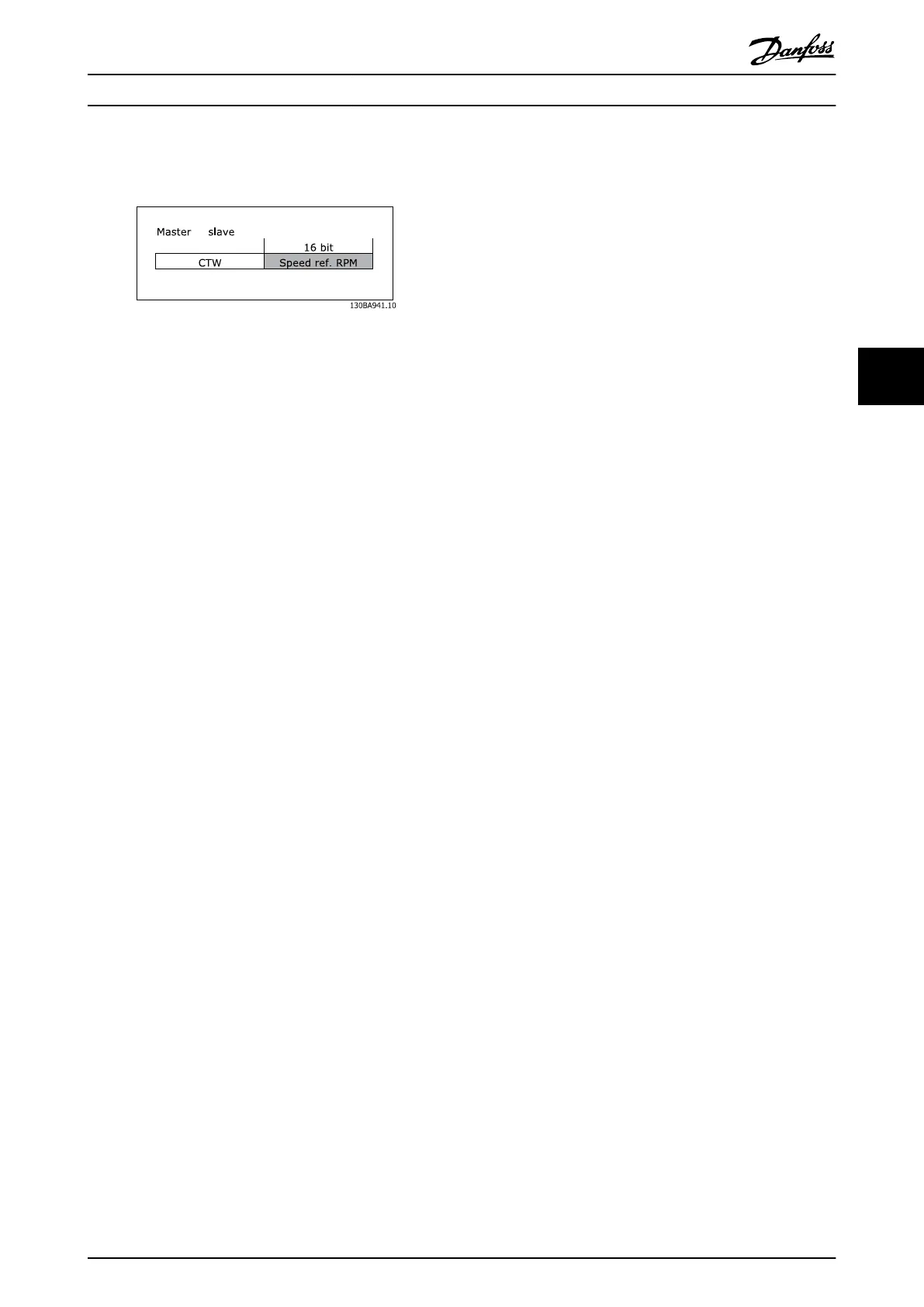

5.4.2
Bus
Speed
Value
under
Instances
20/70
and
21/71
→
The
speed
reference
value
should
be
transmitted
to
the
frequency
converter
in
the
form
of
a
16-bit
word.
The
value
is
transmitted
directly
in
RPM.
How to Control
MCA 121 EtherNet/IP
MG.90.J3.02 - VLT
®
is a registered Danfoss trademark
27
5
5
27
29
