Danfoss TP4000 Range Installation Guide

TP4000
6
GB
FR
ES
NL
GR
PL
CZ
TR
HR
RO
HU
LT
GB
3.0 Commissioning (RF models only)
If the thermostat and the receiver have been supplied together
in a combined pack, the units have been paired in the factory
and no commissioning is required (RX1 only).
To make the RX receiver learn the thermostat’s signal, follow steps 1-5
below.
Step 1
TP4000-RF - Reset the unit by pressing the recessed reset button.
Step 2
Press and hold V and + buttons for 3 seconds
(TP4000 RF now transmits unique signal
continuously for 3 minutes).
RX1
RX2 & RX3
12
3
4
ELECTRONICS
N
L
COM
ZONE
1 ON
ZONE
1 OFF
A
ELECTRONICS
B
C1
2
345
6
N
L
ZONE
1 ON
ZONE
1 OFF
ZONE
2 ON
ZONE
3 ON
COM
TERMINAL 6
RX3 ONLY

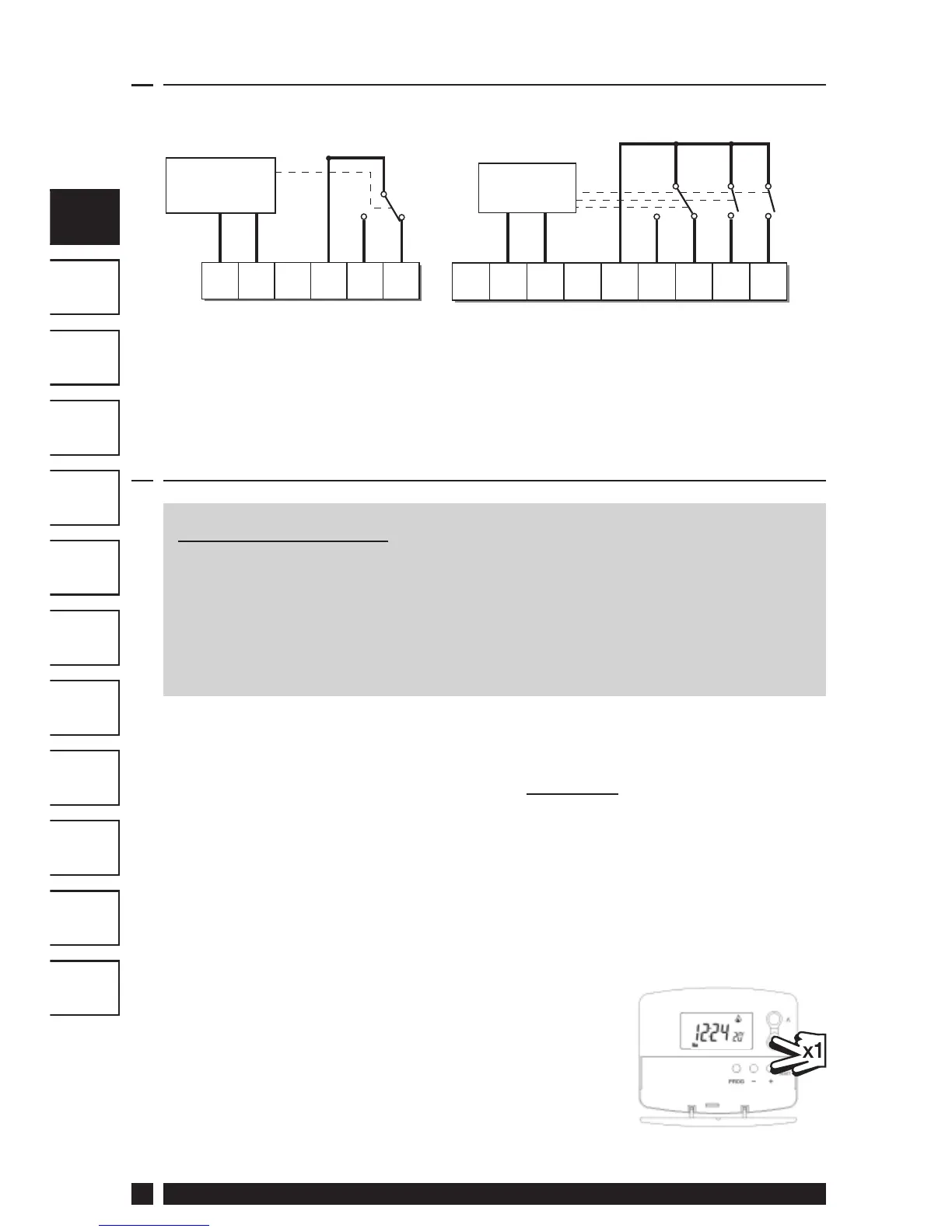

2.2 RX Receiver Wiring (RF models only)
1) For mains voltage operated systems link terminal 2 to mains live supply.
2) Power supply to unit must not be switched by timeswitch.
IMPORTANT
On initial installation, or if the batteries have been removed
from the unit for more than 1 minute before beginning
programming or commissioning the TP4000 unit; it is essential
that the RESET button be pressed to ensure the factory preset
programmes are set and the system is fully operational.

Danfoss TP4000 Range Specifications

General

Display	LCD
Mounting	Wall-mounted
Accuracy	±0.5°C
Protection Class	IP30
Temperature Range	5°C to 30°C
Power Supply	Battery powered (2x AA)
Switch Rating	3(1)A 230V AC
Switching Current	3A
Type	Electronic Room Thermostat
