Some existing thermostats will have a Neutral and/or Earth wire connected. These
are not required by the TP5001 (battery models) and must NOT be connected to
any TP5001 terminals. Instead they should be made electrically safe and coiled in
the recess at the back of the TP5001.

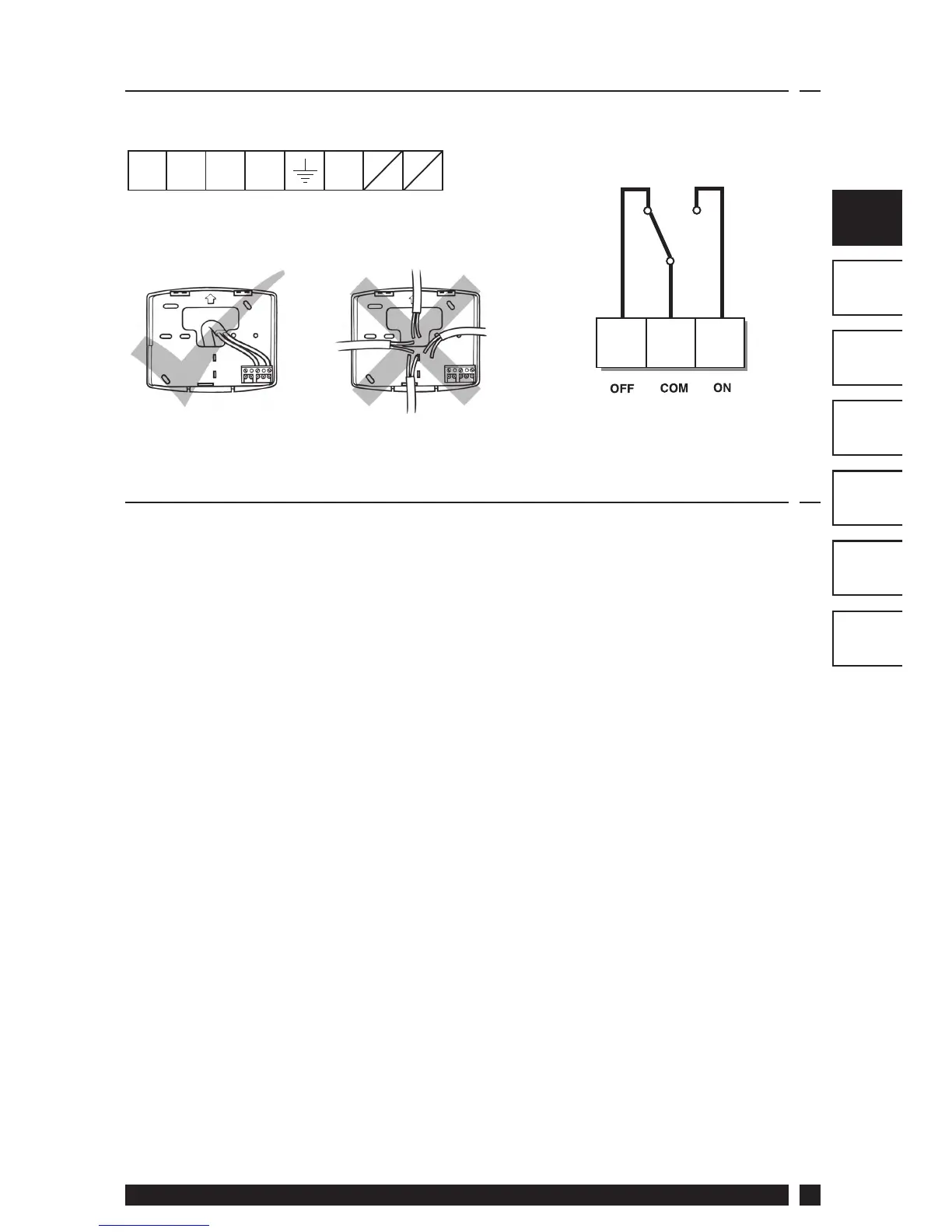

3.1 Wiring - TP5001
Models with remote sensor inputs
TP5001A and TP5001MA incorporate an input which can be used to
connect one of the following:
1) remote room temperature sensor (sold as accessory).
2) limit sensor, for example,  oor temperature sensor (sold as
accessory).
3) window contacts, card reader contacts or teleswitch contacts.
See Installer Advanced Programming Options for set-up
instructions.
3.2 Battery Installation
When installing the batteries in the TP5001 and TP5001 RF please
ensure that the correct polarity is observed as per the markings on
the inside of the battery compartment.
Important: After installing the batteries press and release the RESET
button to start the unit. The display may appear blank until this is
done. Once the button is released the display will appear. All date,
time, programming and override settings are maintained for the life
of the product.
1
2
3
Output Connections,
all hard wired models
L
N
DE
S1 S2
Remote Sensor
(A version only)
M 230V Models

Danfoss TP5001 Range Specifications

General

Control Mode	On/Off
Accuracy	±0.5°C
Protection Class	IP30
Type	Room Thermostat
Power Supply	230V AC
Temperature Range	5°C to 30°C
Mounting	Wall Mounted
