Page 31 of 108
M-AP-001-EN Rev. N

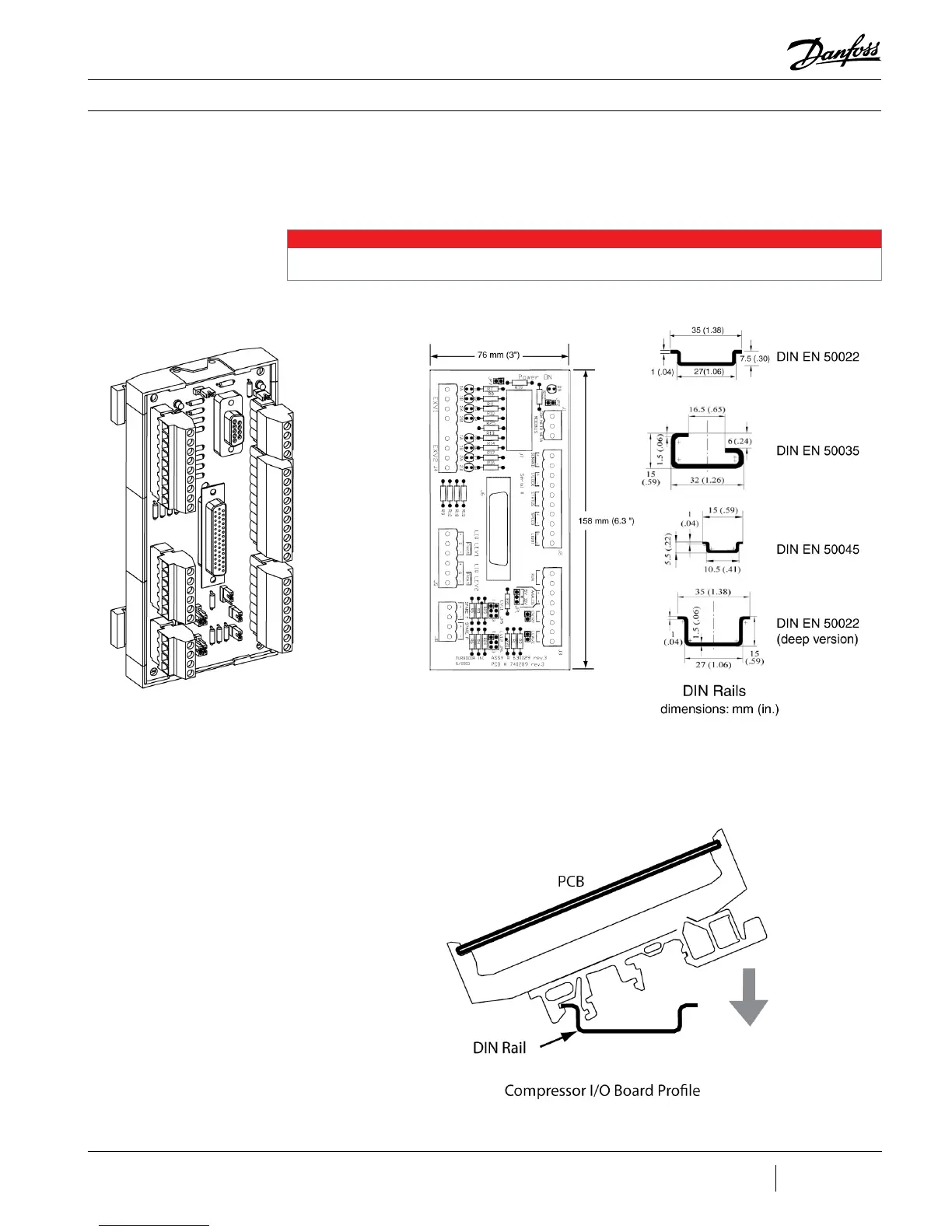

The Compressor I/O Board (Figure 4-4) must be installed in a UL-approved electrical
enclosure equipped with DIN EN 50022, 50035, or 50045 mounting rails. The board should
be mounted in a dry area free from vibration and electrical noise.
4.3 Compressor I/O Board
Mounting Details
Figure 4-4 - Compressor I/O
Board
Control Interface Wiring
NOTE
The UL listed enclosure should protect against moisture and other corrosive elements.
4.3.1 Compressor
I/O Board - Mounting
Instructions
1. Tilt the I/O Board as shown in Figure 4-5 in order to engage it into the DIN Rail.
2. Lower the I/O Board until it snaps into place.
Figure 4-5 - Compressor I/O
Board Installation
