Page 79 of 108

M-AP-001-EN Rev. N

Physical Data

Compressor valve ange details are shown in Figures 16-5 through 16-14. Refer to the

product specications in the Spare Parts Selection Guide for further details.

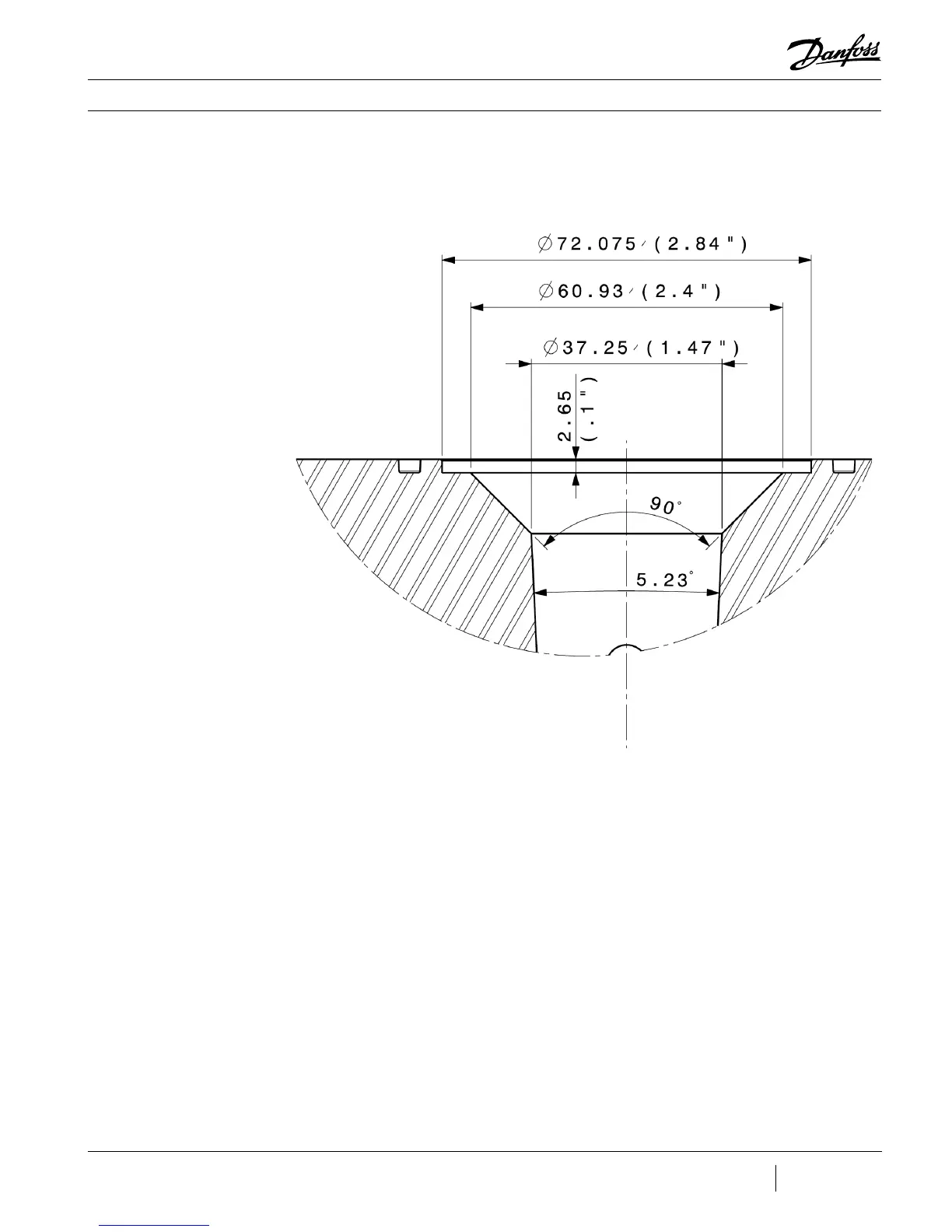

Figure 16-5 - Discharge Port

Details (TT300 and TG230)

Gas Flow

Default Chapter3
