Physical Data
This section contains data relative to compressor mounting, service clearance, and piping
connections.
Table 16-1 - Physical
Dimensions
Length Width Height Shipping weight
31.02" (788 mm) 20.4" (518 mm) 19.17"(487 mm)
TT300: 265 lbs. (120 kg)
TG230: 265 lbs. (120 kg)
TT350: 290 lbs. (132 kg)
TG310: 290 lbs. (132 kg)
TT400: 290 lbs. (132 kg)
TG390: 290 lbs. (132 kg)
TT700: 318 lbs. (144 kg)
TG520: 318 lbs. (144 kg)
16 Physical Data
Adequate clearance around the compressor is essential to facilitate maintenance and
service. Removal of the compressor top and service-side covers requires a minimum
clearance of 24" (600mm) and 16” (406mm), respectively.
16.1 Clearance

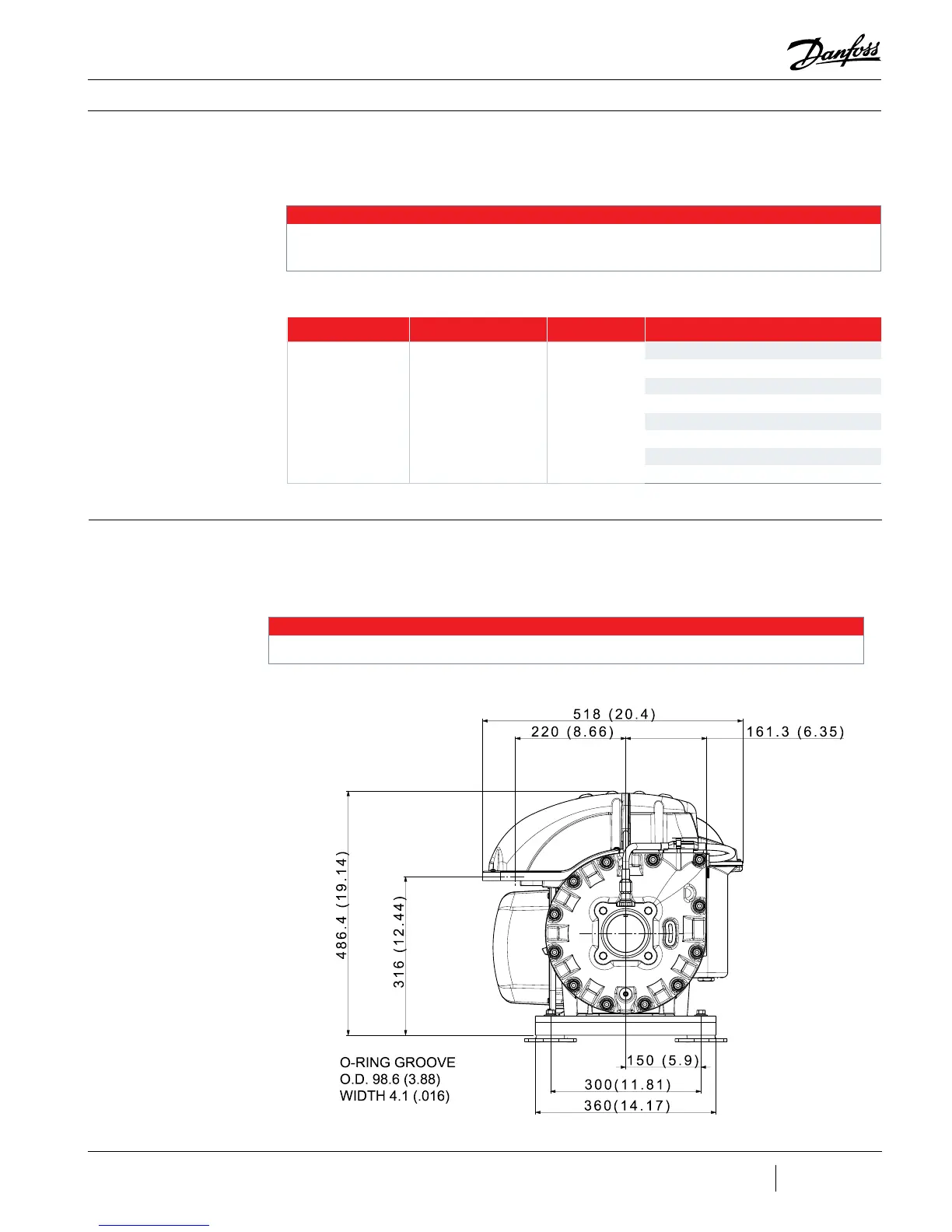

Figure 16-1 - Suction/Front
View All Models
NOTE
If insulators are used at the four (4) mounting base points, the overall height of the compressor will change. Be sure to measure
accordingly based on the insulator used.
NOTE
The dimensions in Figure 16-2 through 16-4 show measurements in metric with imperial in parenthesis.
