Page 45 of 108
M-AP-001-EN Rev. N
(1)
Operating Envelopes
NOTE
The maximum Saturated Discharge Temperature (SDT) of the operating envelope represents the limit for compressors with
maximum FLA settings. The SDT for a compressor with a lower maximum current rating is lower than that shown and is related to
the FLA rating of the particular compressor.
The lower limit is related to minimum pressure ratios required to eect proper motor and power electronics cooling with standard
refrigerant circuit components.
(1)
The actual obtainable capacity will be dependent on specic operating characteristics of each compressor model.
Refer to the current authorized compressor selection/rating software for more exact values and conditions.

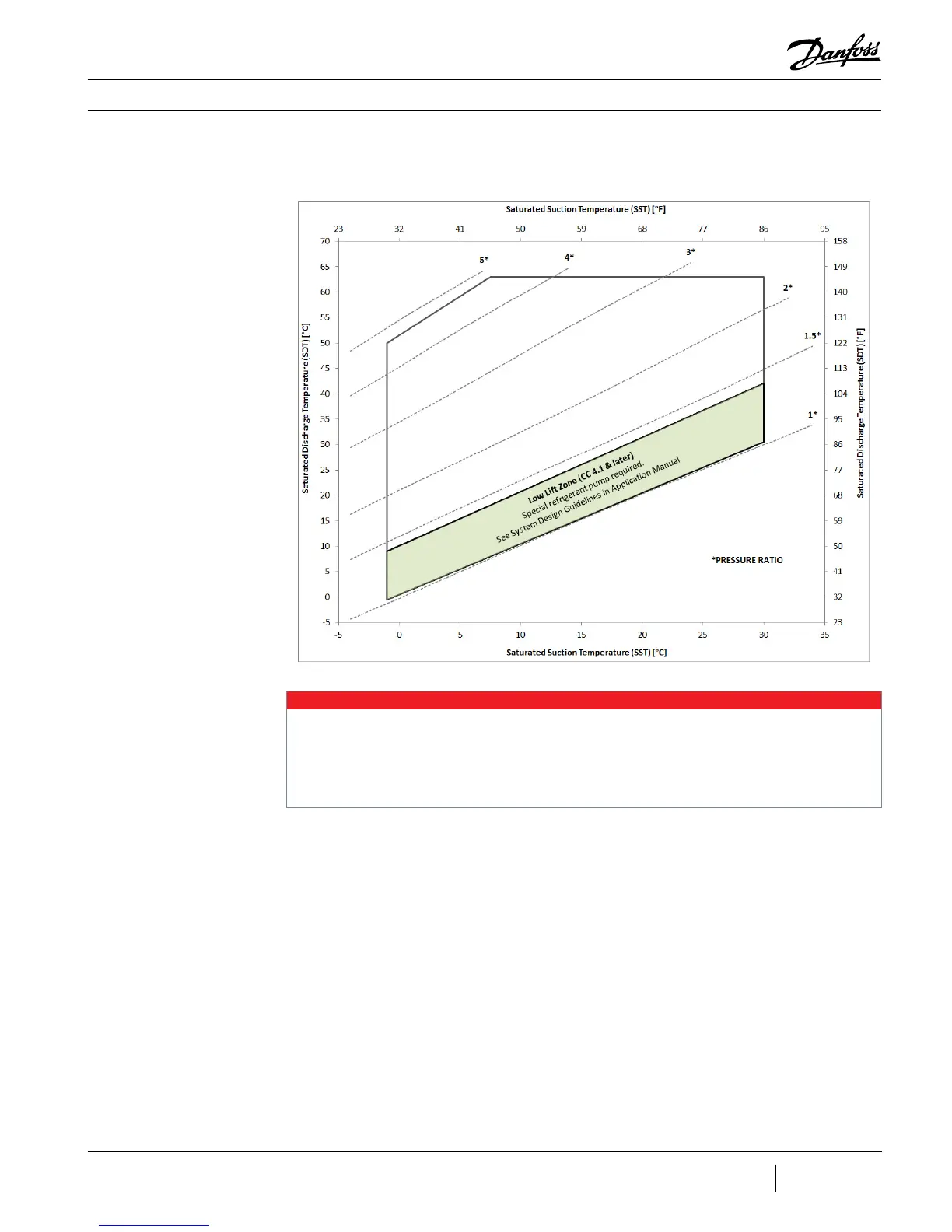

Figure 8-1 - Operating
Envelope, TT300 and TG230
8 Operating Envelopes
