Danfoss VLT 6000 Installation Guide

Note that the power cables are heavy and difficult to bend. Consider the optimum position of the
frequency converter for ensuring easy installation of the cables.
Each terminal allows use of up to 4 cables with cable lugs or use of standard box lug. Earth is
connected to relevant termination point in the drive.

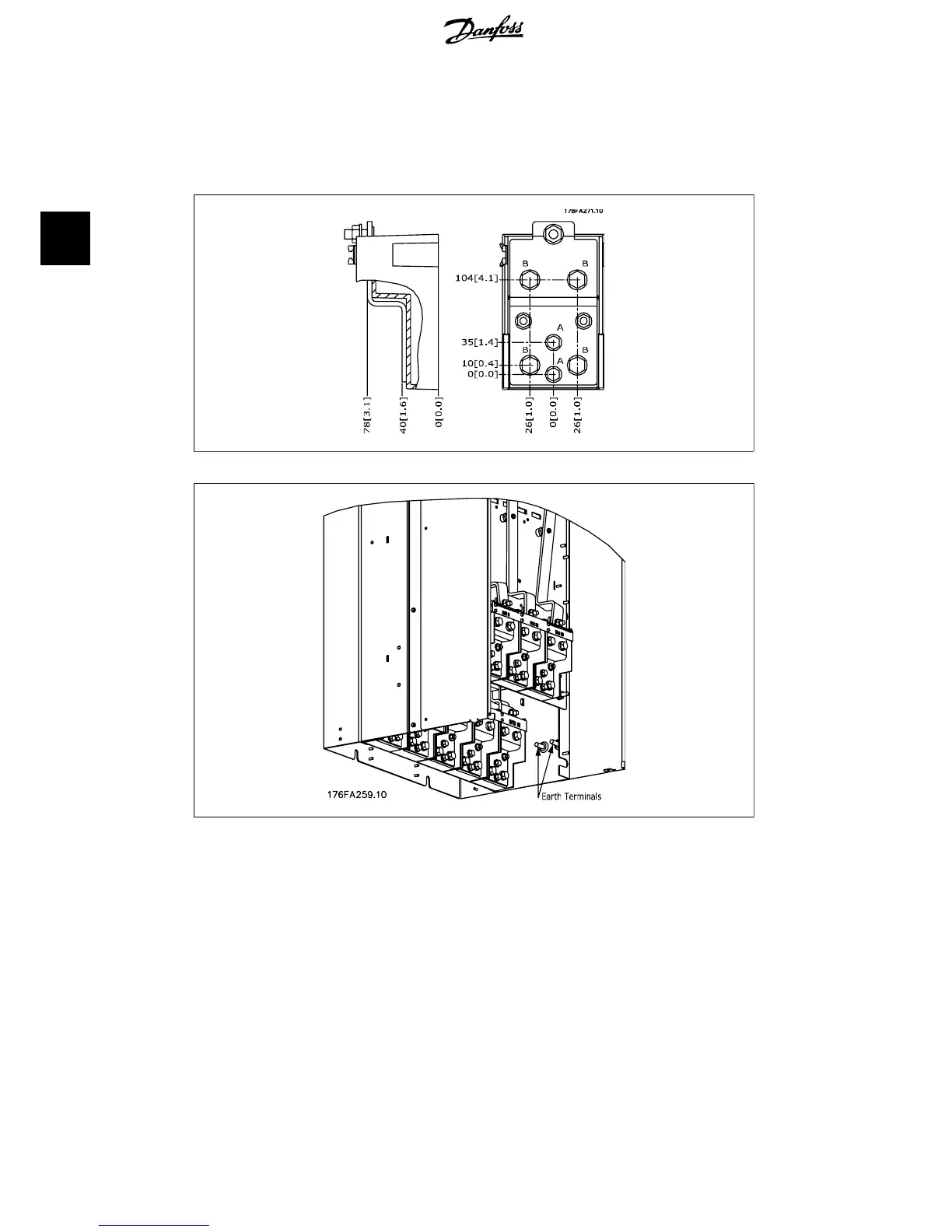

Illustration 3.13: Terminal in details
Illustration 3.14: Position of earth terminals IP00
3. Installation
VLT
®
5000/6000/8000
High Power Installation Guide
16 MI.90.J2.02 - VLT
®
is a registered Danfoss trademark
3
