VLT® 7000 Booster
Programming

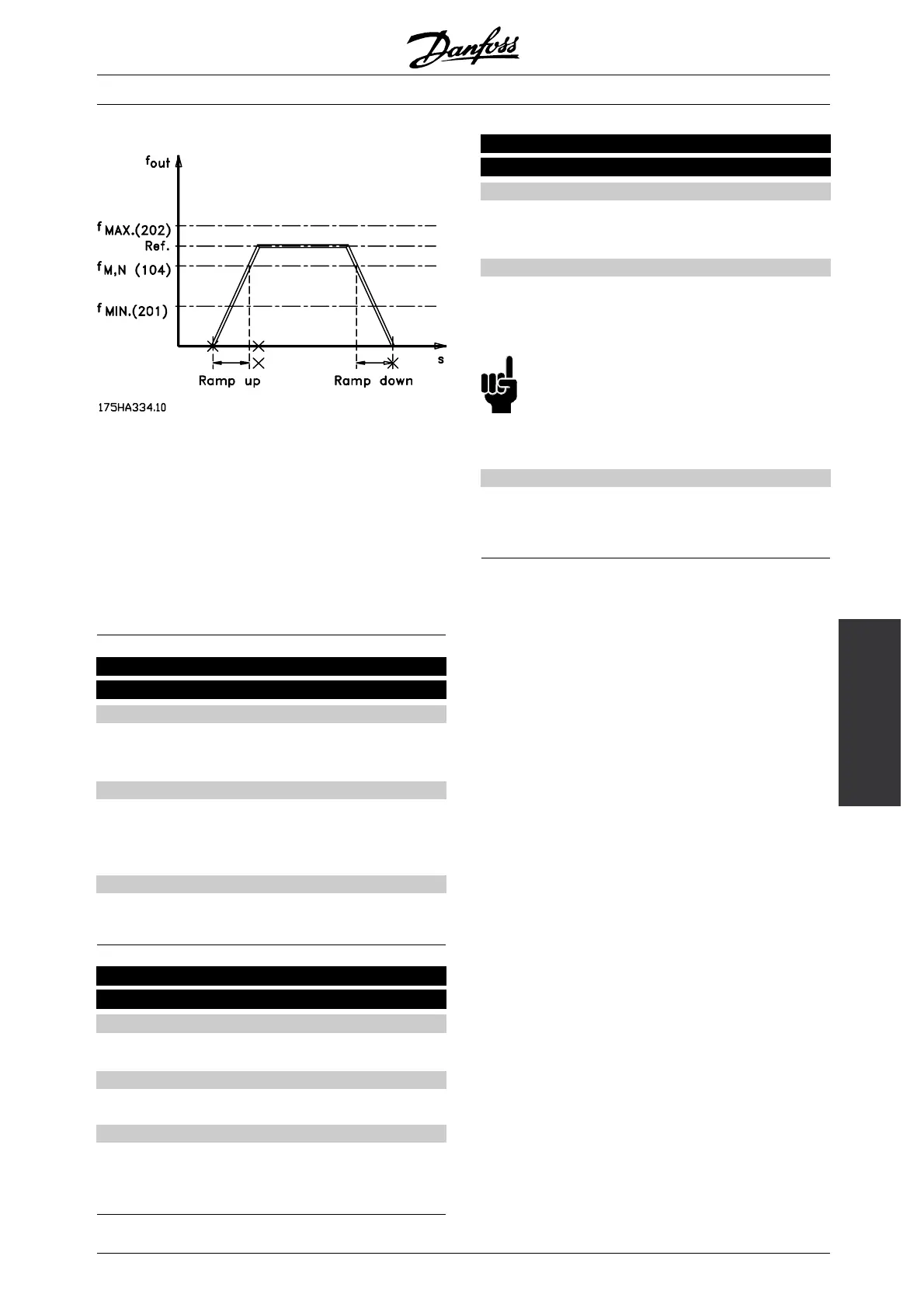

■ References and Limits 200-228
In this parameter group, the frequency and reference
range of the frequency converter are established.
This parameter group also includes:
- Setting of ramp times
- Choice of four preset references
- Possibility of programming four bypass frequencies.
- Setting of maximum current to motor.
- Setting of warning limits for current, frequency,
reference and feedback.
200 Output frequency range
(FREQUENCY RANGE)
Value:
✭0 - 120 Hz (0 - 120 HZ)
[0]
0 - 1000 Hz (0 - 1000 HZ)
[1]
Function:
This is where to select the maximum output
frequency range to be set in parameter 202
Output frequency high limit,f
MAX
.
Description of choice:
Select the required output frequency range.
201 Output frequency low limit, f
MIN
(MIN. FREQUENCY)
Value:
0.0 - f
MAX
✭ 20 HZ
Function:
This is where to select the minimum output frequency.
Description of choice:
A value from 0.0 Hz to the Output frequency high limit,
f
MAX
frequency set in parameter 202 can be selected.
202 Output frequency high limit, f
MAX
(MAX. FREQUENCY)
Value:
f
MIN
- 120/1000 Hz
(par. 200 Output frequency range)
✭ 50 Hz
Function:
In this parameter, a maximum output frequency
can be selected that corresponds to the highest
speed at which the motor can be.
NB!:
The output frequency of the frequency
converter can never assume a value higher
than 1/10 of the switching frequency
(parameter 407 Switching frequency.
Description of choice:
A value from f
MIN
to the choice made in parameter
200 Output frequency range can be selected.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.70.A1.02 - VLT is a registered Danfoss trademark
61
