Ordering no. 130B1113 Ordering no. 130B1114

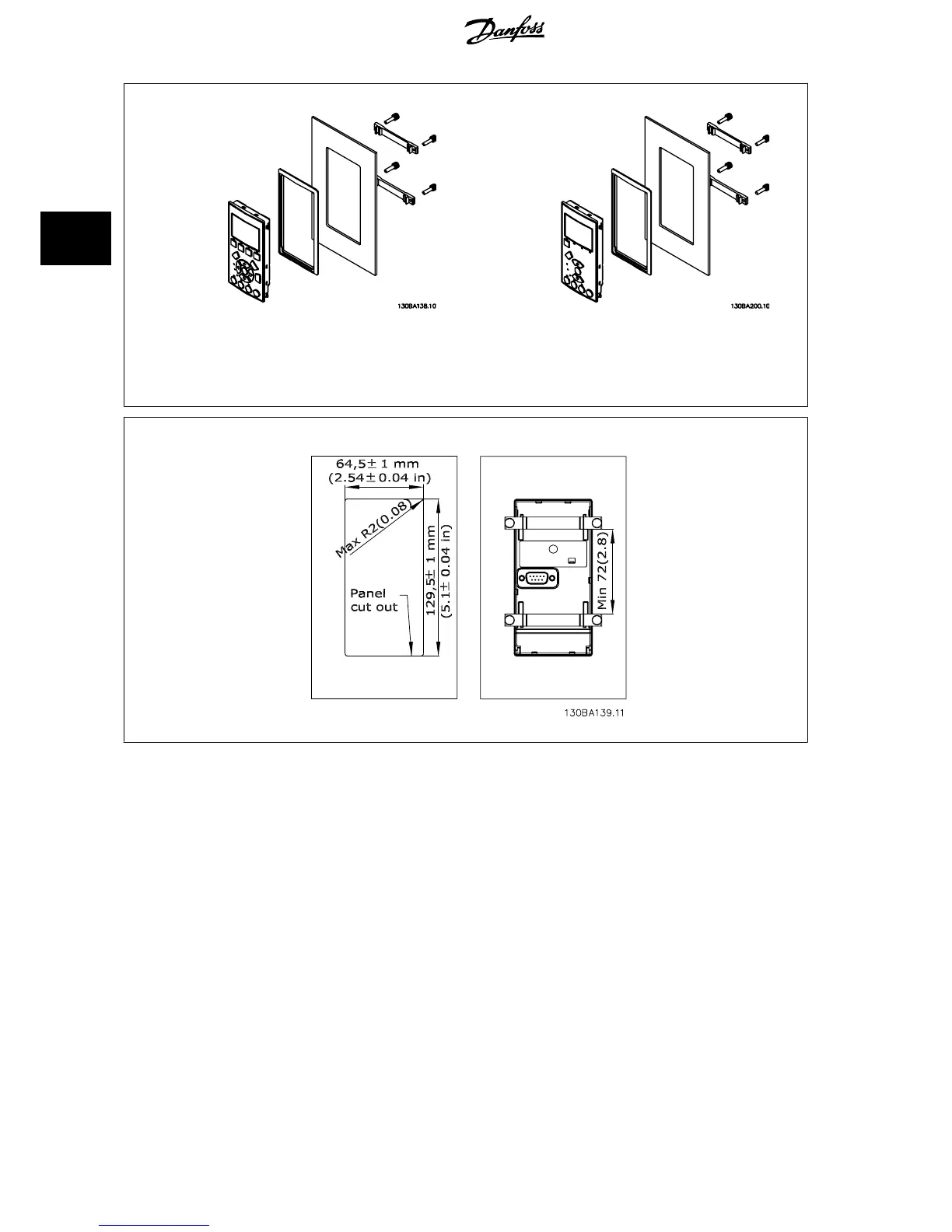

Illustration 3.26: LCP Kit with graphical LCP, fasteners, 3 m cable and
gasket.
Illustration 3.27: LCP Kit with numerical LCP, fasternes and gasket.
LCP Kit without LCP is also available. Ordering number: 130B1117
For IP55 units the ordering number is 130B1129.
3.6.15 IP 21/IP 4X/ TYPE 1 Enclosure Kit
IP 20/IP 4X top/ TYPE 1 is an optional enclosure element available for IP 20 Compact units, enclosure size A2-A3 up to 7.5 kW.
If the enclosure kit is used, an IP 20 unit is upgraded to comply with enclosure IP 21/ 4X top/TYPE 1.
The IP 4X top can be applied to all standard IP 20 VLT AQUA variants.
3 VLT AQUA Selection VLT
®
AQUA Drive Design Guide
78
MG.20.N5.02 - VLT
®
is a registered Danfoss trademark
3
