A – Top cover
B – Brim
C – Base part
D – Base cover
E – Screw(s)

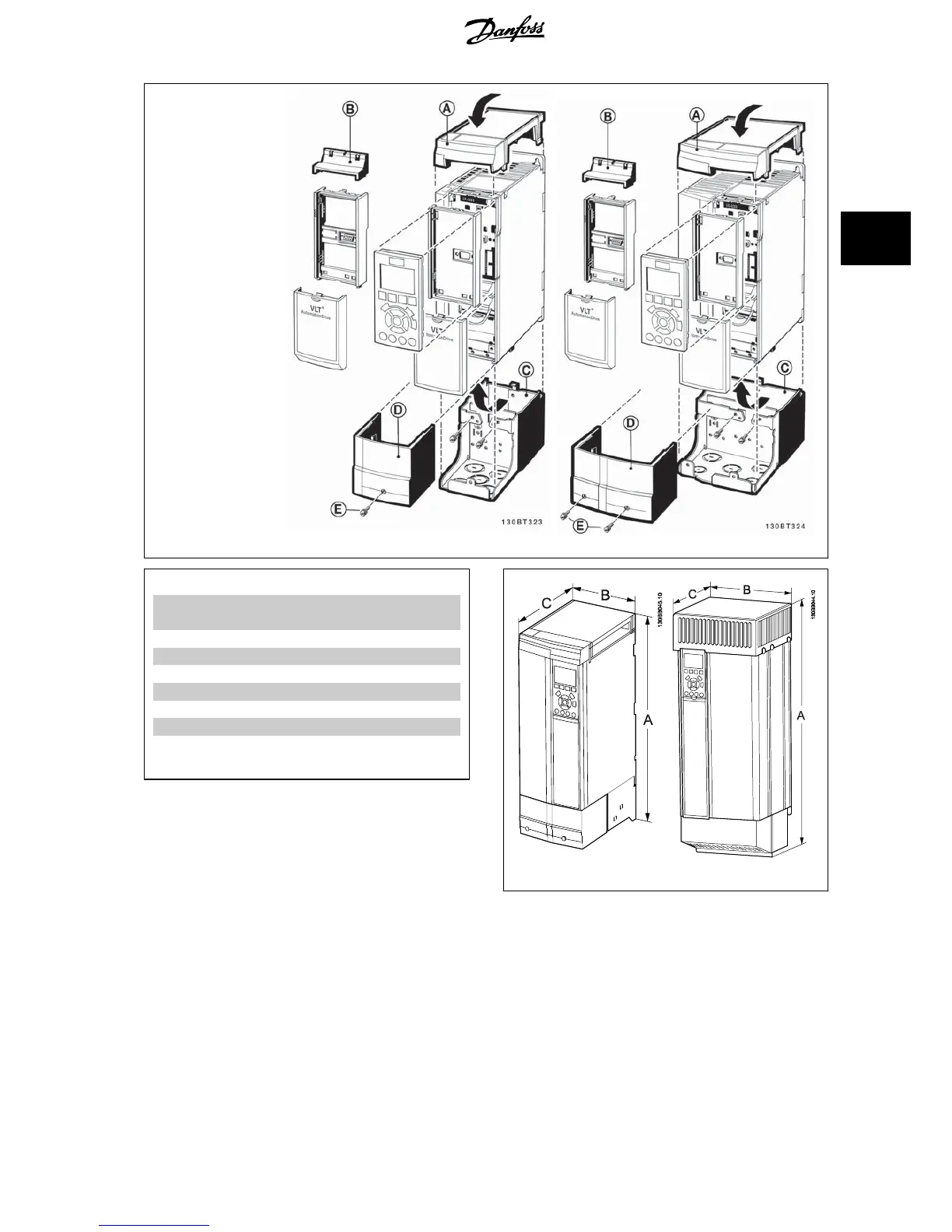

Place the top cover as
shown. If an A or B option
is used the brim must be fit-
ted to cover the top inlet.
Place the base part C at the
bottom of the drive and use
the clamps from the acces-
sory bag to correctly fasten
the cables. Holes for cable
glands:
Size A2: 2x M25 and 3xM32
Size A3: 3xM25 and 3xM32
A2 Enclosure A3 Enclosure
Dimensions
Enclosure
type
Height (mm)
A
Width (mm)
B
Depth (mm)
C*
A2 372 90 205
A3 372 130 205
B3 475 165 249
B4 670 255 246
C3 755 329 337
C4 950 391 337
* If option A/B is used, the depth will increase (see section Me-
chanical Dimensions for details)
A2, A3, B3 B4, C3, C4
VLT
®
AQUA Drive Design Guide 3 VLT AQUA Selection
