Danfoss VLT AQUA Drive - Page 152

60 AVM - Pulse Width Modulation, 525 - 600 V (except P315)

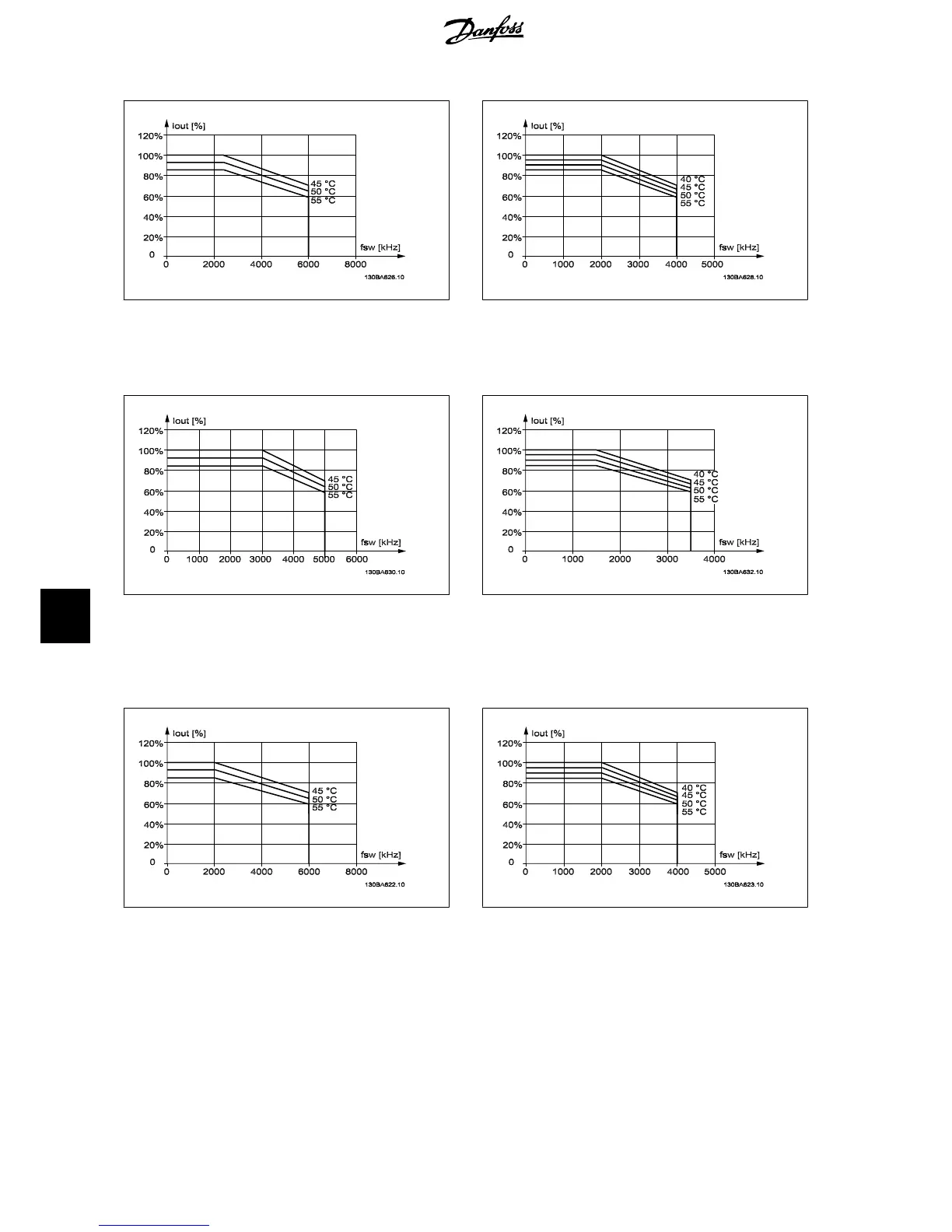

Illustration 10.11: Derating of I
out
for different T
AMB, MAX
for enclosure
D at 600 V, using 60 AVM in Normal torque mode (110% over torque).
Note:
not valid for P315.
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 10.12: Derating of I
out
for different T
AMB, MAX
for enclosure
D at 600 V, using SFAVM in Normal torque mode (110% over torque).
Note:
not valid for P315.
60 AVM - Pulse Width Modulation, 525 - 600 V, P315
Illustration 10.13: Derating of I
out
for different T
AMB, MAX
for enclosure
D at 600 V, using 60 AVM in Normal torque mode (110% over torque).
Note: P315
only .
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 10.14: Derating of I
out
for different T
AMB, MAX
for enclosure
D at 600 V, using SFAVM in Normal torque mode (110% over torque).
Note: P315
only .
E enclosures
60 AVM - Pulse Width Modulation, 380 - 480 V
Illustration 10.15: Derating of I
out
for different T
AMB, MAX
for enclosure E
at 480 V, using 60 AVM in Normal torque mode (110% over torque)
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 10.16: Derating of I
out
for different T
AMB, MAX
for enclosure E
at 480 V, using SFAVM in Normal torque mode (110% over torque)
10. Specifications
VLT
®
AQUA Drive
Operating Instructions
152 MG.20.M4.02 - VLT
®
is a registered Danfoss trademark
10
