Danfoss VLT AQUA Drive - Motor Wiring Overview

All types of three-phase asynchronous standard motors can be connected
to the frequency converter. Normally, small motors are star-connected
(230/400 V, D/Y). Large motors are delta-connected (400/690 V, D/Y).
Refer to the motor name plate for correct connection mode and voltage.

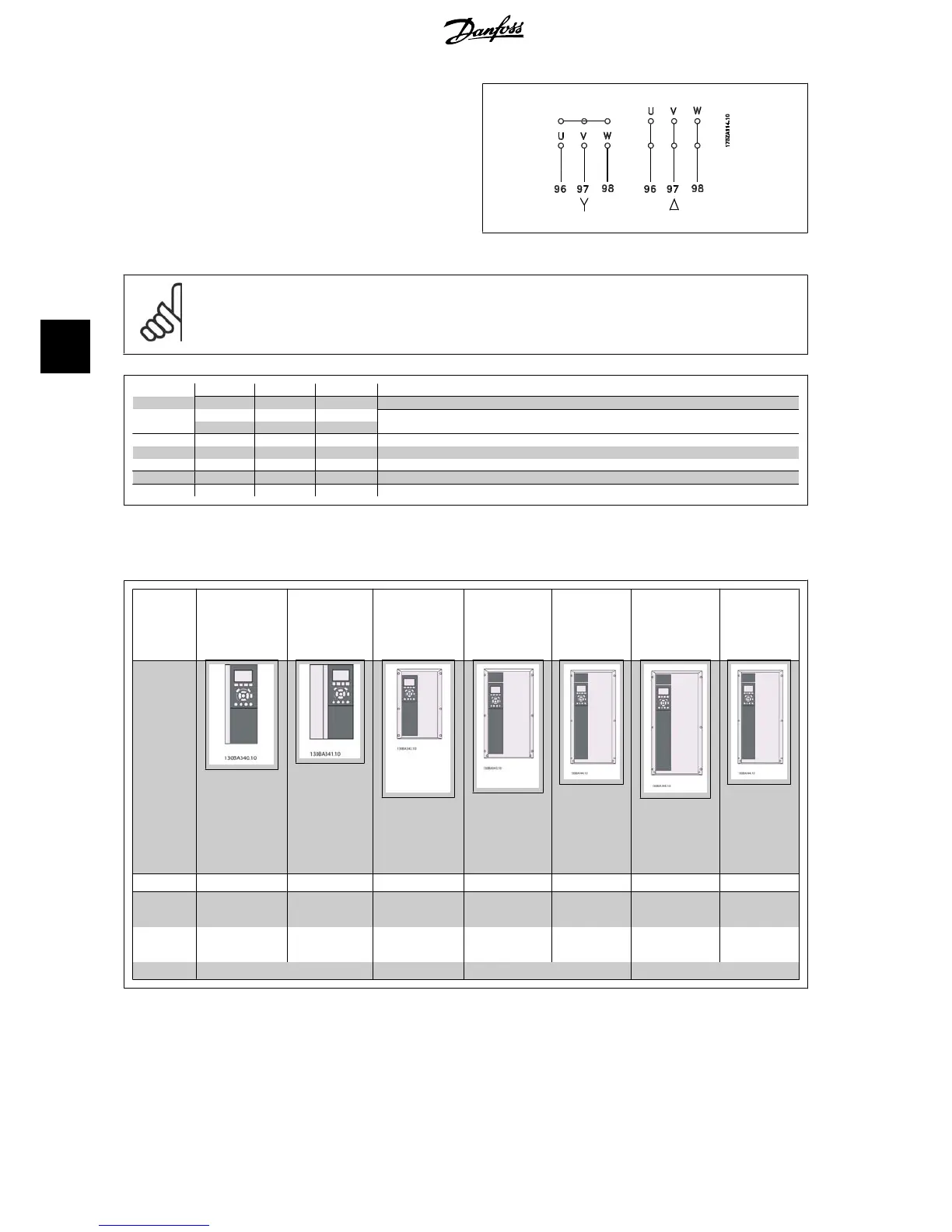

Illustration 5.12: Terminals for motor connection
NB!
In motors without phase insulation paper or other insulation reinforcement suitable for operation with voltage supply (such as a fre-
quency converter), fit a sine-wave filter on the output of the frequency converter. (Motors that comply with IEC 60034-17 do not require
an Sine-wave filter).
No. 96 97 98 Motor voltage 0-100% of mains voltage.
U V W 3 cables out of motor
U1 V1 W1
6 cables out of motor, Delta-connected
W2 U2 V2
U1 V1 W1 6 cables out of motor, Star-connected
U2, V2, W2 to be interconnected separately
(optional terminal block)
No. 99 Earth connection
PE
Table 5.6: 3 and 6 cable motor connection.
5.1.10. Motor wiring overview
Enclosure: A2
(IP 20/
IP 21)
A3
(IP 20/
IP 21)
A5
(IP 55/
IP 66)
B1
(IP 21/
IP 55/IP 66)
B2
(IP 21/
IP 55/IP 66)
C1
(IP 21/
IP 55/IP 66)
C2
(IP 21/
IP 55/IP 66)
Motor size:
200-240 V
0.25-3.0
kW
3.7
kW
0.25-3.7
kW
5.5-7.5
kW
11-15
kW
18.5-22
kW
30-45
kW
380-480 V
0.37-4.0
kW
5.5-7.5
kW
0.37-7.5
kW
11-18.5
kW
22-30
kW
37-55
kW
75-90
kW
Goto: 5.1.11 5.1.12 5.1.13 5.1.14
Table 5.7: Motor wiring table.
