5.1.11. Motor connection for A2 and A3
Follow these drawings step by step for connecting the motor to the frequency converter.

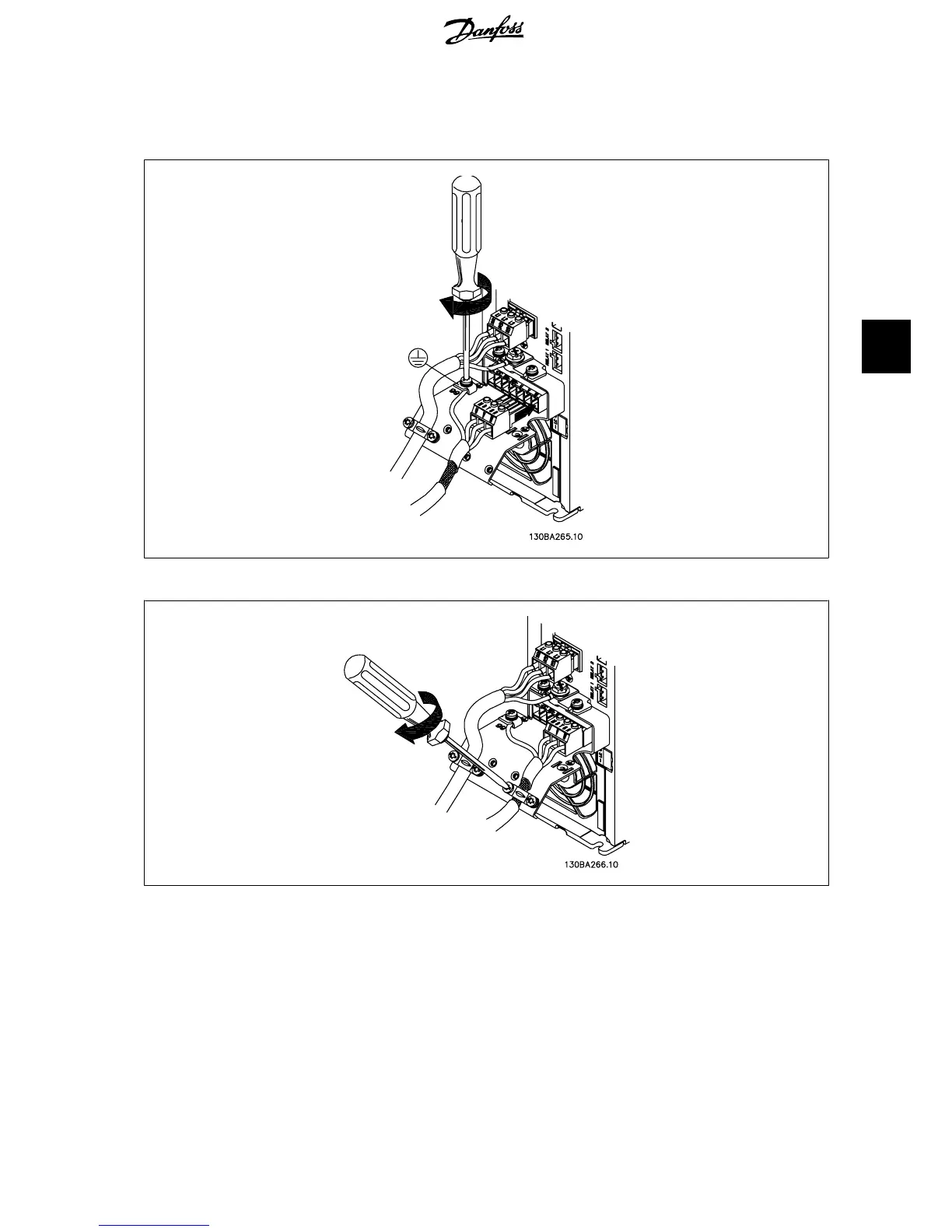

Illustration 5.13: First terminate the motor earth, then place motor U, V and W wires in plug and tighten.
Illustration 5.14: Mount cable clamp to ensure 360 degree connection between chassis and screen, note the outer insulation of the motor cable is
removed under the clamp.
VLT
®
AQUA Drive
Operating Instructions
5. Electrical installation
MG.20.M4.02 - VLT
®
is a registered Danfoss trademark
33
5
