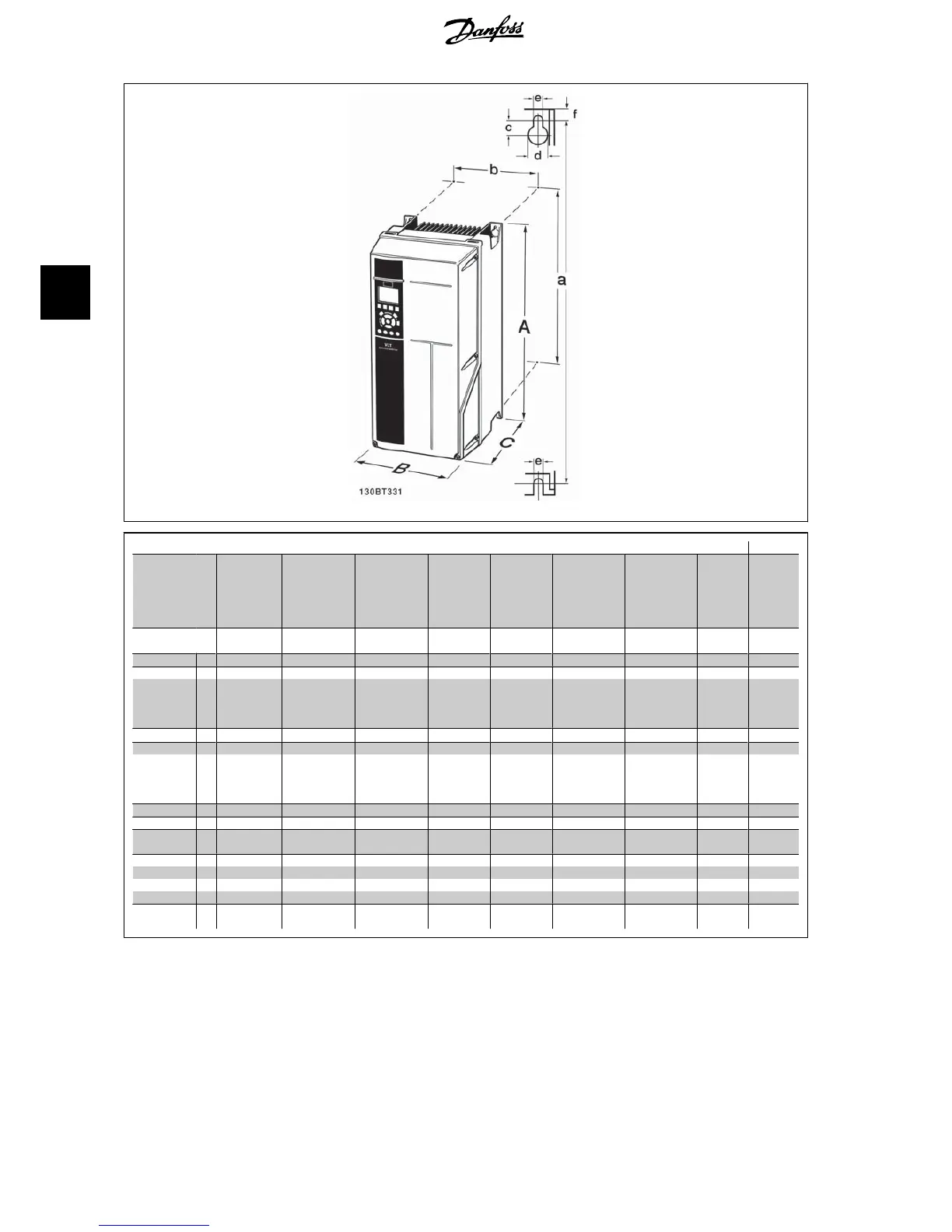

Mechanical dimensions
Voltage:
200-240 V
380-480 V
Frame size
A5
0.25-3.7
kW
0.37-7.5
kW
Frame size
B1
5.5-11 kW
11-18.5 kW
Frame size
B2
15 kW
22-30 kW
Frame size
B3
5.5-11 kW
11-18.5
kW
Frame size
B4
15-18.5
kW
22-37 kW
Frame size
C1
18.5-30 kW
37-55 kW
Frame size
C2
30-45 kW
75-90 kW
Frame
size C3
22-30
kW
45-55
kW
Frame
size C4
37-45
kW
75-90
kW
Encapsula-
tion
IP55/66 IP21/55/66 IP21/55/66 IP20 IP20 IP21/55/66 IP21/55/66 IP20 IP20
Height
1)
Height A 420 mm 480 mm 650 mm 399 mm 520 mm 680 mm 770 mm 550 mm 660 mm
Distance be-
tween
mounting
holes
a 402 mm 454 mm 624 mm 380 mm 495 mm 648 mm 739 mm 521 mm 631 mm
Width
1)
Width B 242 mm 242 mm 242 mm 165 mm 230 mm 308 mm 370 mm 380 mm 370 mm
Distance be-
tween
mounting
holes
b 215 mm 210 mm 210 mm 140 mm 200 mm 272 mm 334 mm 270 mm 330 mm
Depth
Depth C 195 mm 260 mm 260 mm 232 mm 239 mm 310 mm 335 mm 330 mm 330 mm
Screw
holes
c 8.25 mm 12 mm 12 mm 8 mm - 12.5 mm 12.5 mm - -
d ø12 mm ø19 mm ø19 mm 12 mm - ø19 mm ø19 mm - -
e
ø6.5 mm ø6.5 mm ø6.5 mm ø6.8 mm ø8.5 mm ø9 ø9 ø8.5 ø8.5
f 9 mm 9 mm 9 mm 7.9 mm 15 mm 9.8 9.8 17 17
Max.
weight
13.5 / 14.2 23 kg 27 kg 12 kg 23.5 kg 45 kg 65 kg 35 kg 50 kg
Table 4.4: A5, B1, B2, B3, B4, C3 and C4 mechanical dimensions.
1) The dimensions state the maximum height, width and depth needed for mounting the frequency converter, when the top cover is mounted.
