5.1.7. Mains connection for B1, B2 and B3

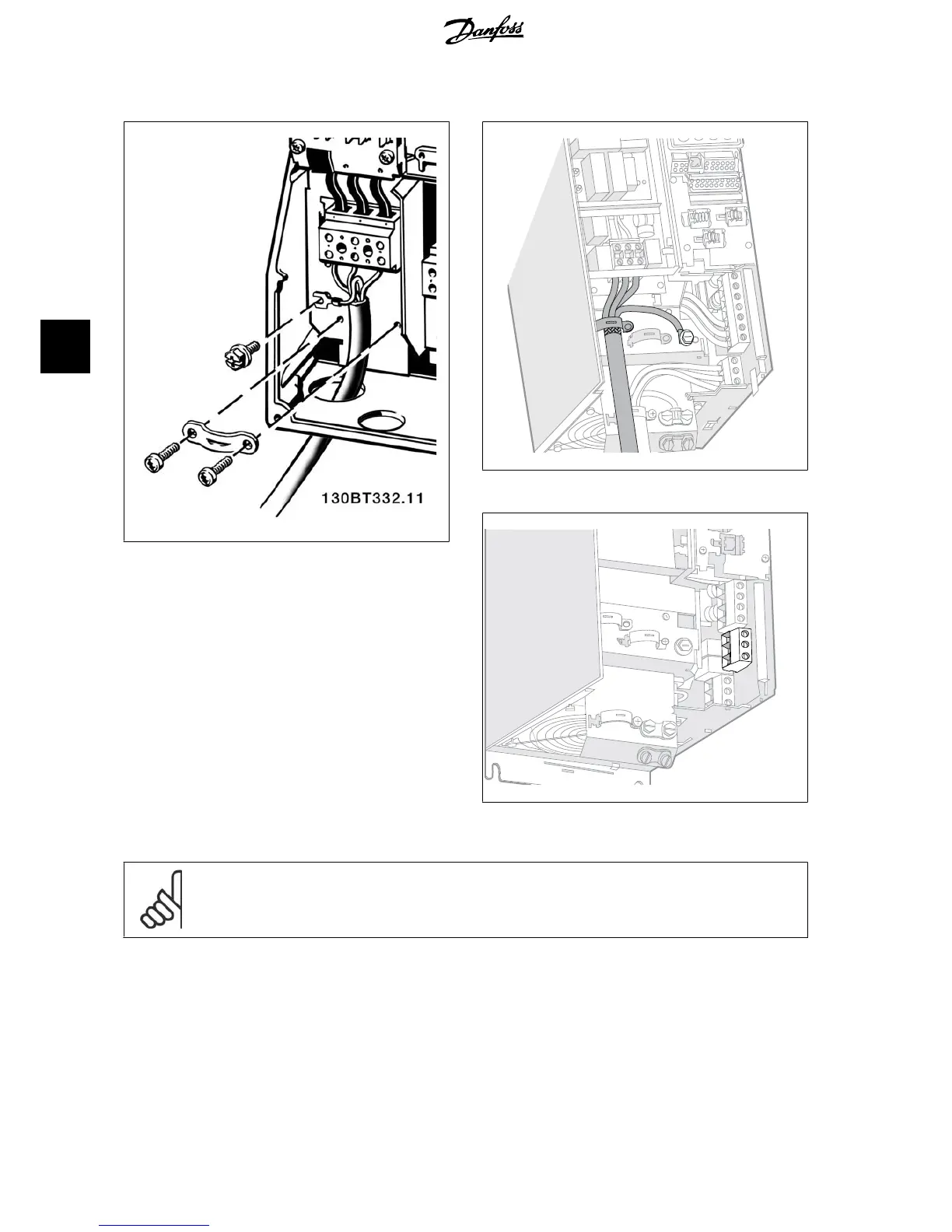

Illustration 5.8: How to connect to mains and earthing for B1 and B2.
130BA720.10
Illustration 5.9: How to connect to mains and earthing for B3 with RFI.
130BA725.10
Illustration 5.10: How to connect to mains and earthing for B3 without
RFI.
NB!
For correct cable dimensions please see the section General Specifications at the back of this manual.
