5.1.14. Motor connection for C1 and C2

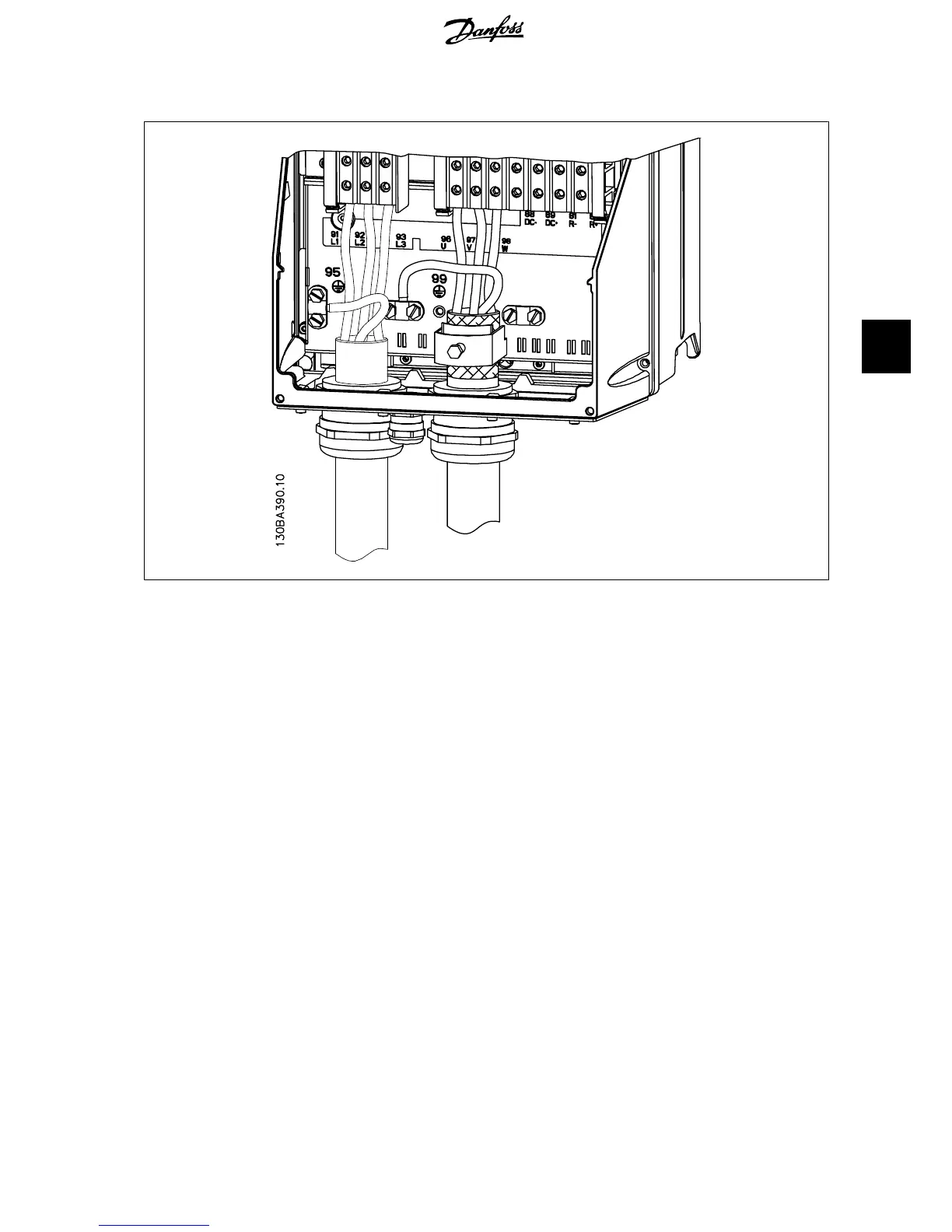

Illustration 5.17: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that the outer insulation
of the motor cable is removed under the EMC clamp.
5.1.15. Wiring Example and Testing
The following section describes how to terminate control wires and how to access them. For an explanation of the function, programming and wiring of
the control terminals, please see chapter,
How to programme the frequency converter.
VLT
®
AQUA Drive
Operating Instructions
5. Electrical installation
MG.20.M4.02 - VLT
®
is a registered Danfoss trademark
35
5
