Min. Reference Par. 3-01 (30 Hz)
Max. Reference Par. 3-02 (50/60 Hz)
Initial Ramp Up Time Par. 3-84 (2 sec.)
Final Ramp Down Time Par. 3-88 (2 sec.)
Normal Ramp Up Time Par. 3-41 (8 sec. depending on size)
Normal Ramp Down Time Par. 3-42 (8 sec. depending on size)
Motor Min. Speed Par. 4-11 (30 Hz)
Motor Max. Speed Par. 4-13 (50/60 Hz)
Use the “Closed Loop” wizard under “Quick Menu_Funtion_Setup”, to easily set up the feedback settings in the PID controller.

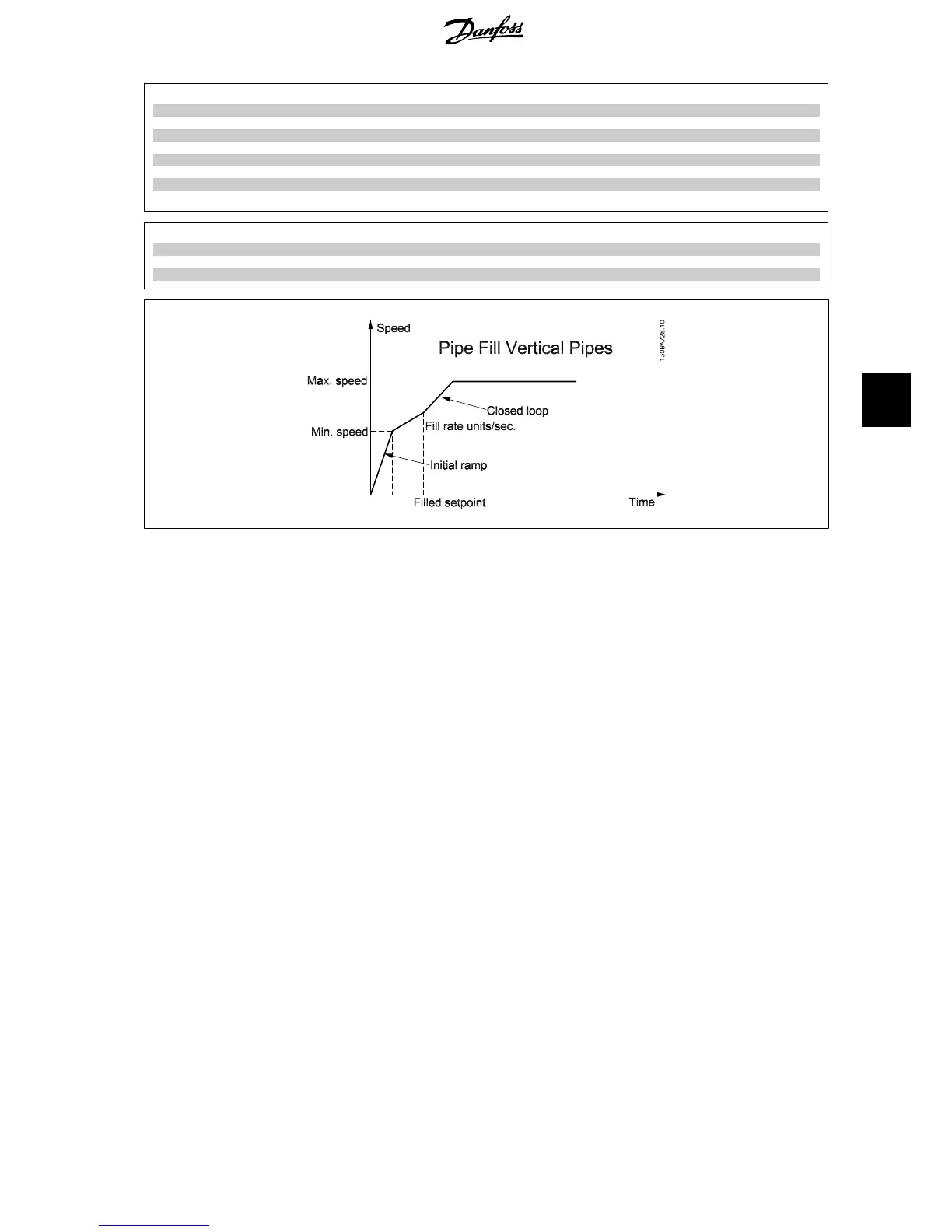

Pipe Fill Mode
Pipe Fill Enable Par. 29-00
Pipe Fill Rate Par. 29-04 (Feedback units/sec.)
Filled Set Point Par. 29-05 (Feedback units)
