3.3.6 Access to Control Terminals
All terminals to the control cables are located underneath the terminal cover
on the front of the frequency converter. Remove the terminal cover with a
screwdriver.

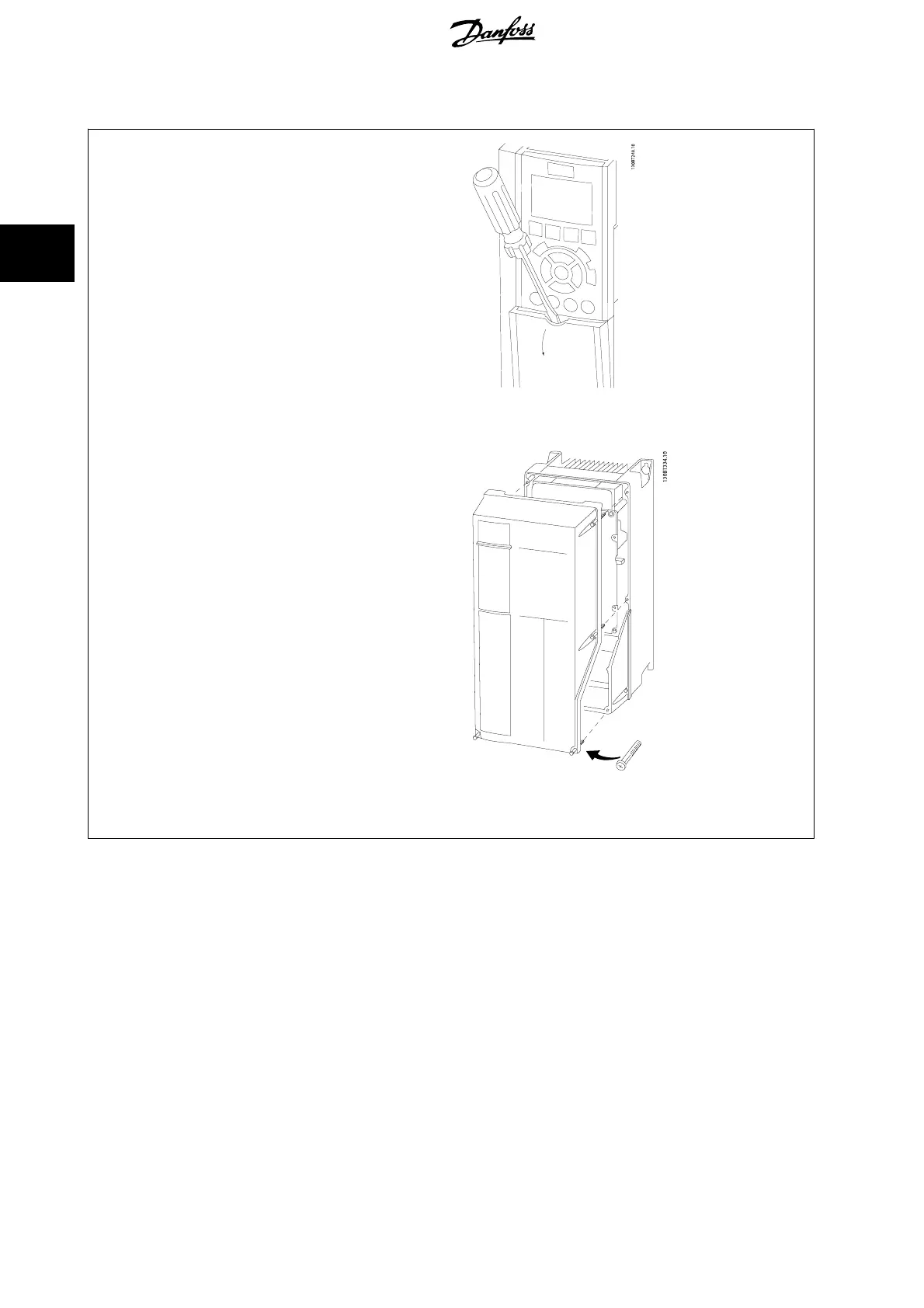

Illustration 3.20: Access to control terminals for A2, A3, B3, B4, C3
and C4 enclosures
Remove front-cover to access control terminals. When replacing the front-
cover, please ensure proper fastening by applying a torque of 2 Nm.
Illustration 3.21: Access to control terminals for A4, A5, B1, B2, C1
and C2 enclosures
3 How to Install
VLT
®
AutomationDrive FC 300 Operating
Instructions
32 MG.33.AG.02 - VLT
®
is a registered Danfoss trademark
