Danfoss VLT AutomationDrive FC 302 Service Guide

8.3.9 Gate Drive Card in E-sized Drives
1
3 4 5 6 7
2
8
130BF936.10
1 MK101: Gate drive signals to power card 5 MK601: V phase IGBT gate signal
2 Gate drive card 6 MK201: Brake IGBT gate signal (optional)
3 MK501: U phase IGBT gate signal 7 MK701: W phase IGBT signal
4 MK100: IGBT temperature feedback 8 Screw (T20)

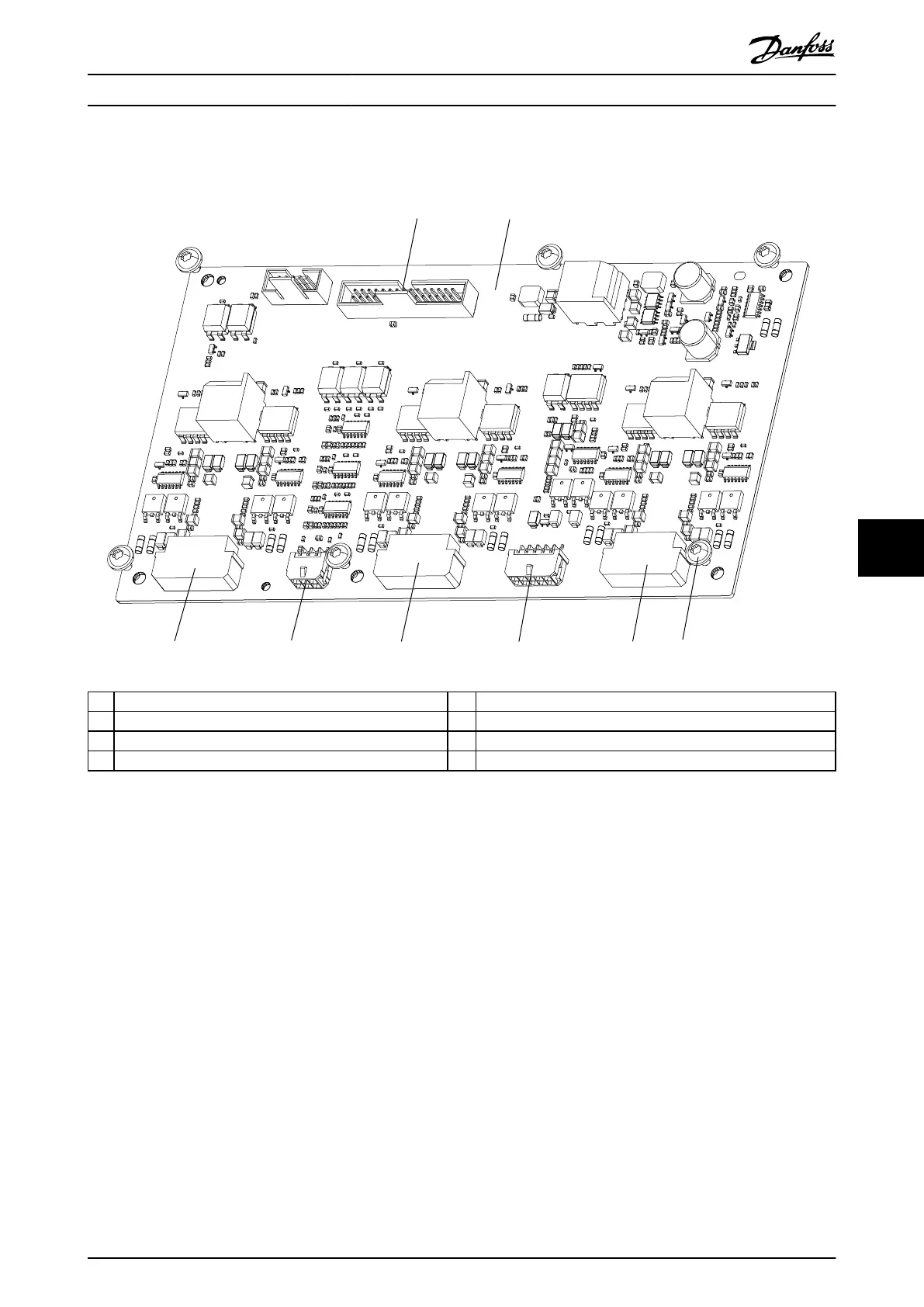

Illustration 8.9 Gate Drive Card in E-sized Drives
Test Procedures Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 99
8 8
