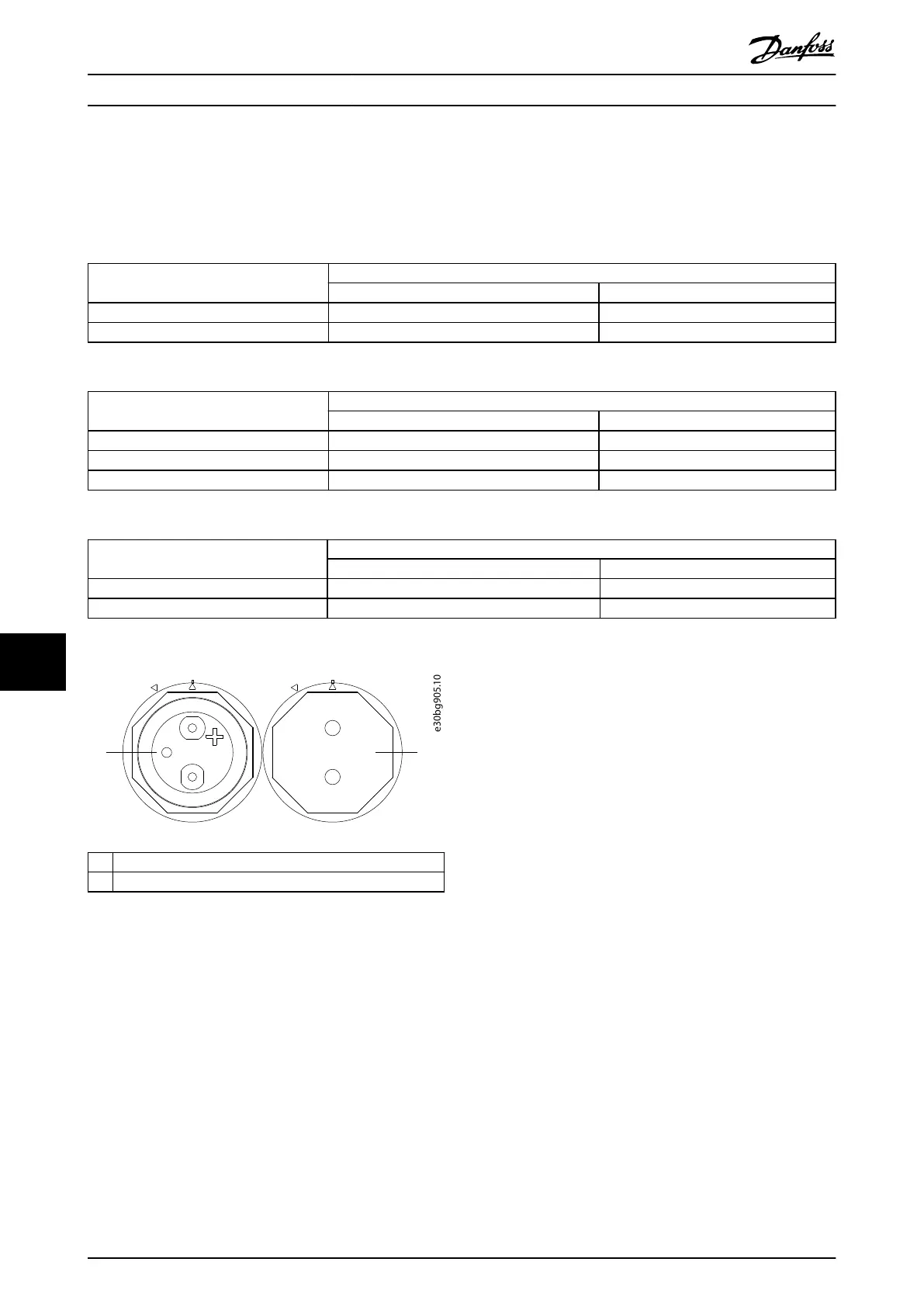

10.2.23 Twistlock DC Capacitor Bank Layouts
Twistlock DC capacitor banks dier in the number of capacitors and plugs present and the location of fasteners, such as
screws and standos. The drive size and power rating determine the layout of the twistlock DC capacitor bank. Use
Table 10.7 to Table 10.9 to nd the twistlock DC capacitor bank layout for a particular drive in D1h/D3h/D5h/D6h/J8 sizes.
Graphic reference Model
FC 102, FC 103, and FC 202 FC 302
Illustration 10.22 N55K N45K
Illustration 10.22 N75K N55K
Table 10.7 Twistlock DC Capacitor Bank Layout 200–240 V
Graphic reference Model
FC 102, FC 103, and FC 202 FC 302
Illustration 10.21 N110 N90K
Illustration 10.22 N132 N110
Illustration 10.22 N160 N132
Table 10.8 Twistlock DC Capacitor Bank Layout 380–500 V
Graphic reference Model
FC 102, FC 103, and FC 202 FC 302
Illustration 10.22 N132 N110
Illustration 10.22 N160 N132
Table 10.9 Twistlock DC Capacitor Bank Layout 525–690 V
1 Twistlock DC capacitor
2 Plug
Illustration 10.20 Twistlock DC Capacitor and Plug
