14.1.2 Unique Torque Values in E1h–E4h Drives
Some fasteners in E1h–E4h drives require unique, non-standard torque values. Refer to Illustration 14.1 for the type and
location of these fasteners.
130BF930.10
1
2
3
4
5
1 All M4 fasteners
Torque: 2.27 Nm (20.1 lb-in)
4 6 M5 fasteners attaching gate drive card
Torque: 2.27 Nm (20.1 lb-in)
2 3 M5 fasteners
Torque: 3.91 Nm (34.6 lb-in)
5 All M5 fasteners attaching input plates to side mounting rail
Torque: 3.91 Nm (34.6 lb-in)
3 All gasketed M5 fasteners except door screws
Torque: 3.91 Nm (34.6 lb-in)
– –

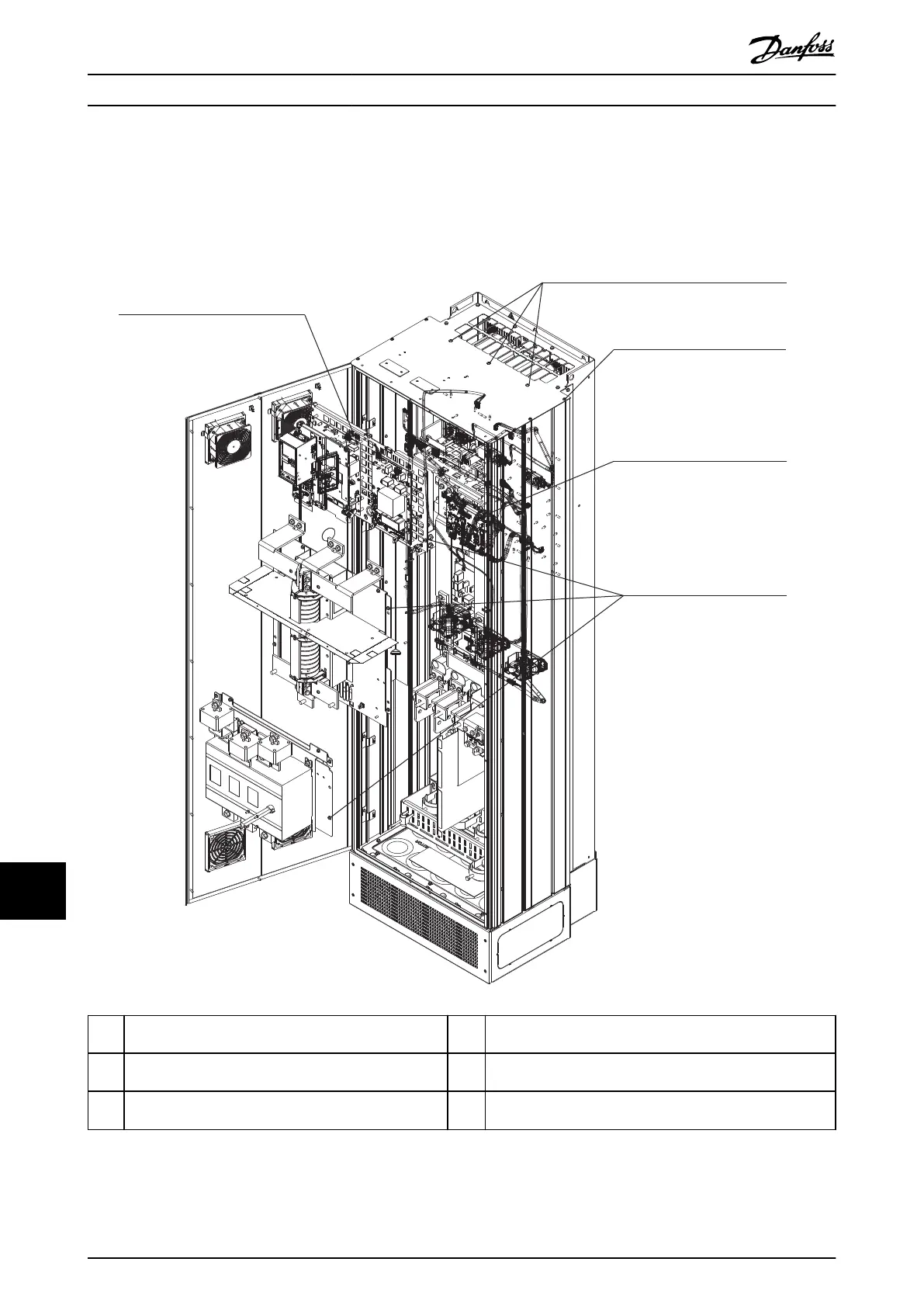

Illustration 14.1 Unique Torque Values, E1h–E4h Drives
