3.6.6 View of Parallel Drive Module
Each drive module has an IP00 protection rating. Either 2 or 4 modules can be connected in parallel to create a drive
system.
130BE561.11
2
3
4
1
5
6
7
8
9
12
13
11
10
1 DC-link terminal and DC fuse 8 Ground terminals
2 MDCIC plug 9 Top fan
3 Microswitch to DC fuse connector 10 Drive module label
4 Relay 1 and 2 connector 11 Motor output terminals (inside the unit)
5 Brake fault jumper and connector 12 Heat sink and heat sink fan
6 Mains input terminals (inside the unit) 13 Ground plate
7 Terminal cover – –

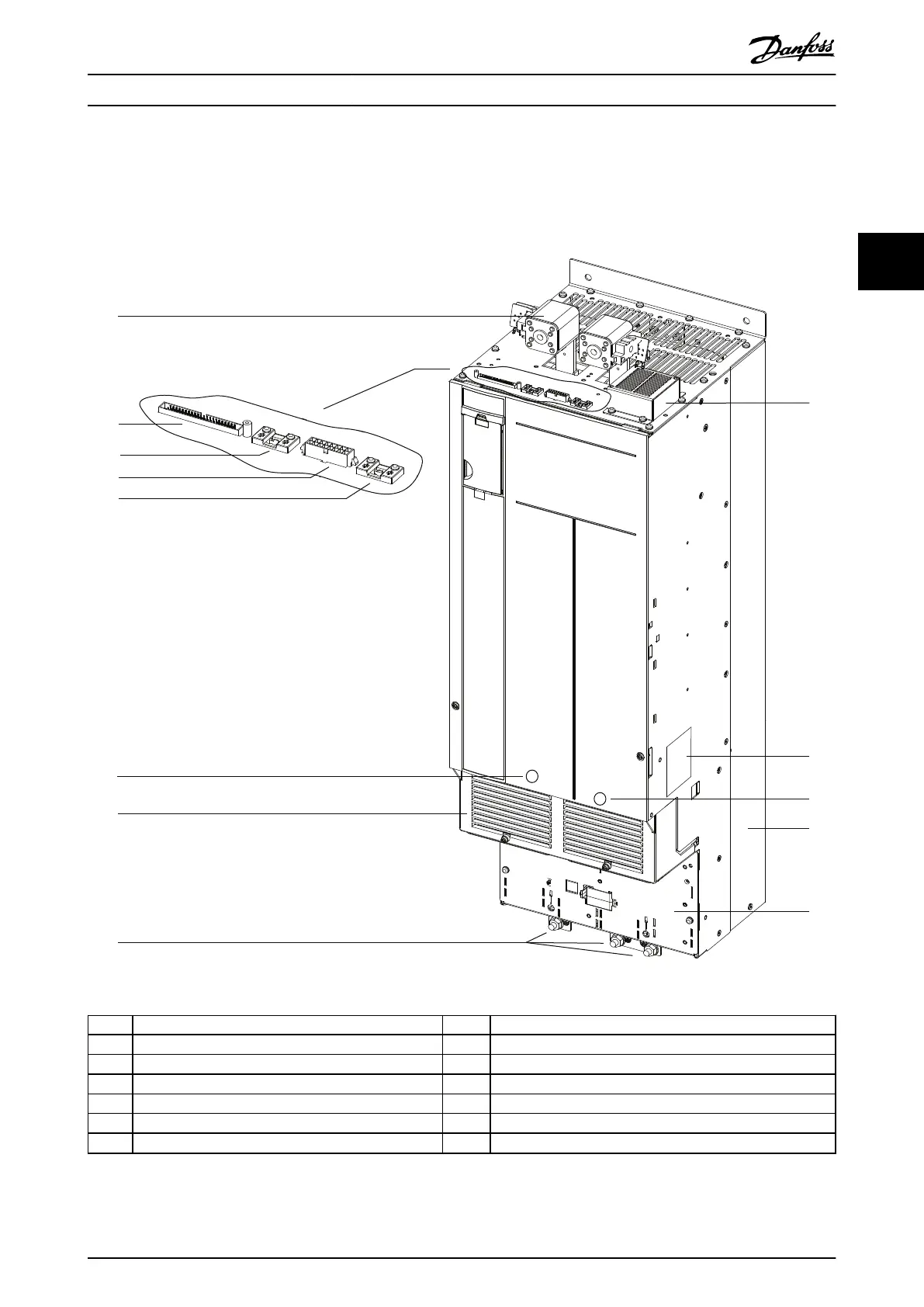

Illustration 3.7 View of Parallel Drive Module
