Danfoss VLT AutomationDrive FC 302 - Page 178

1
2
3
4
5
6
e30bg394.10

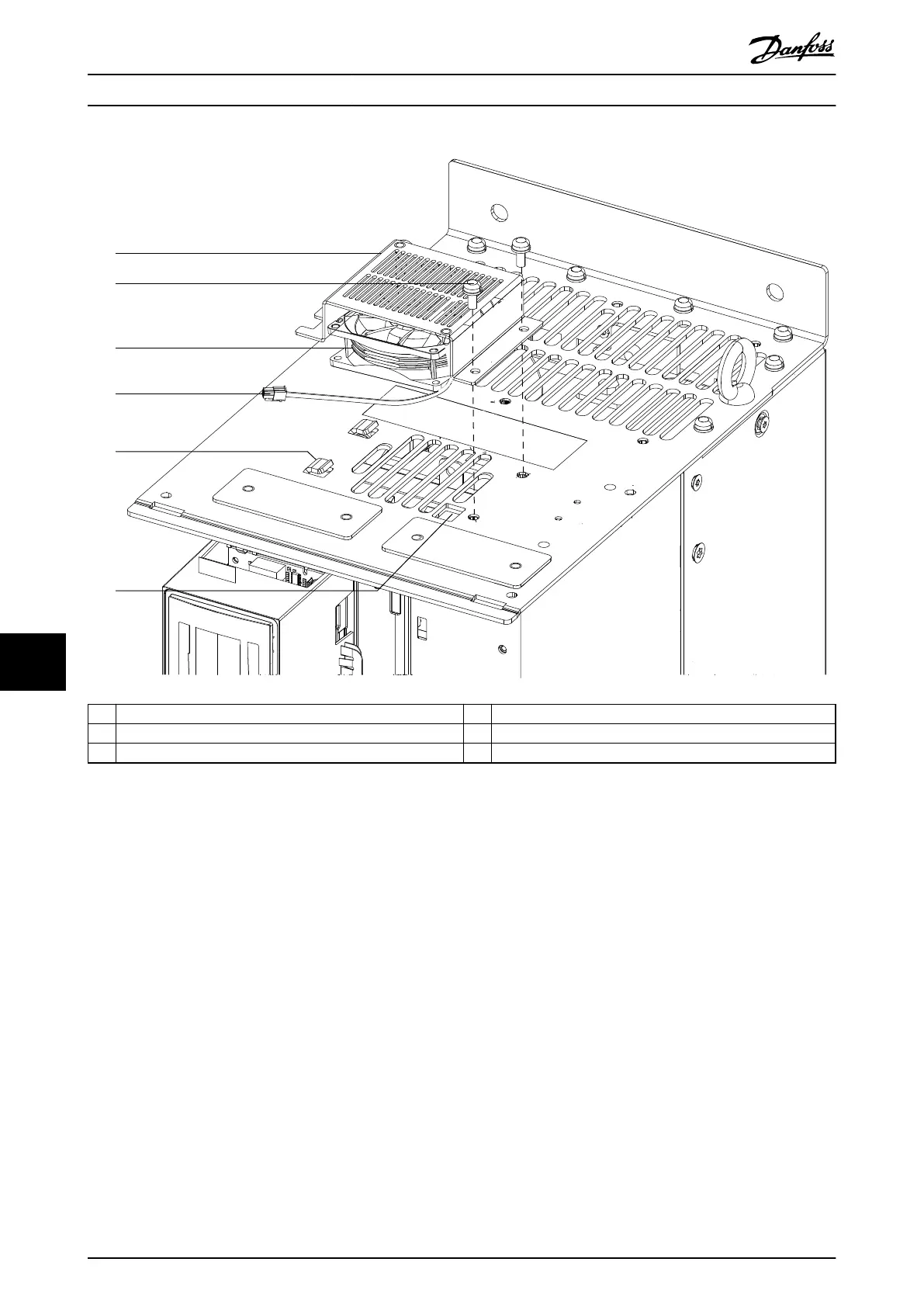

1 Top fan housing 4 Top fan cable and connector
2 Screw (T25) 5 Retaining clip
3 Top fan 6 Cable access hole
Illustration 10.27 Top Fan with Housing
