e30bg564.10
1
2
3
4
5
6
7
8
9
11
12
10
14 15 16 17 18
19
21
22
23
24
20
25
26
27
13
1 R/S/T terminal label 10 Cable clamp adapter 19 Motor busbar, W
2 Machine screw 11 Power terminal mounting plate 20 Torx screw
3 Nut 12 Mixing fan 21 Screw
4 Mains input terminal block 13 Mixing fan housing 22 Cylinder busbar
5 Machine screw 14 EMC shield 23 Nomex tube
6 U/V/W terminal label 15 Plastic mounting button 24 Current sensor
7 Motor terminal block 16 Busbar insulator sleeve 25 Thread-forming screw
8 Cable retaining clip 17 Motor busbar, U 26 Nut
9 Nut with captive washer 18 Motor busbar, V 27 Current sensor cables

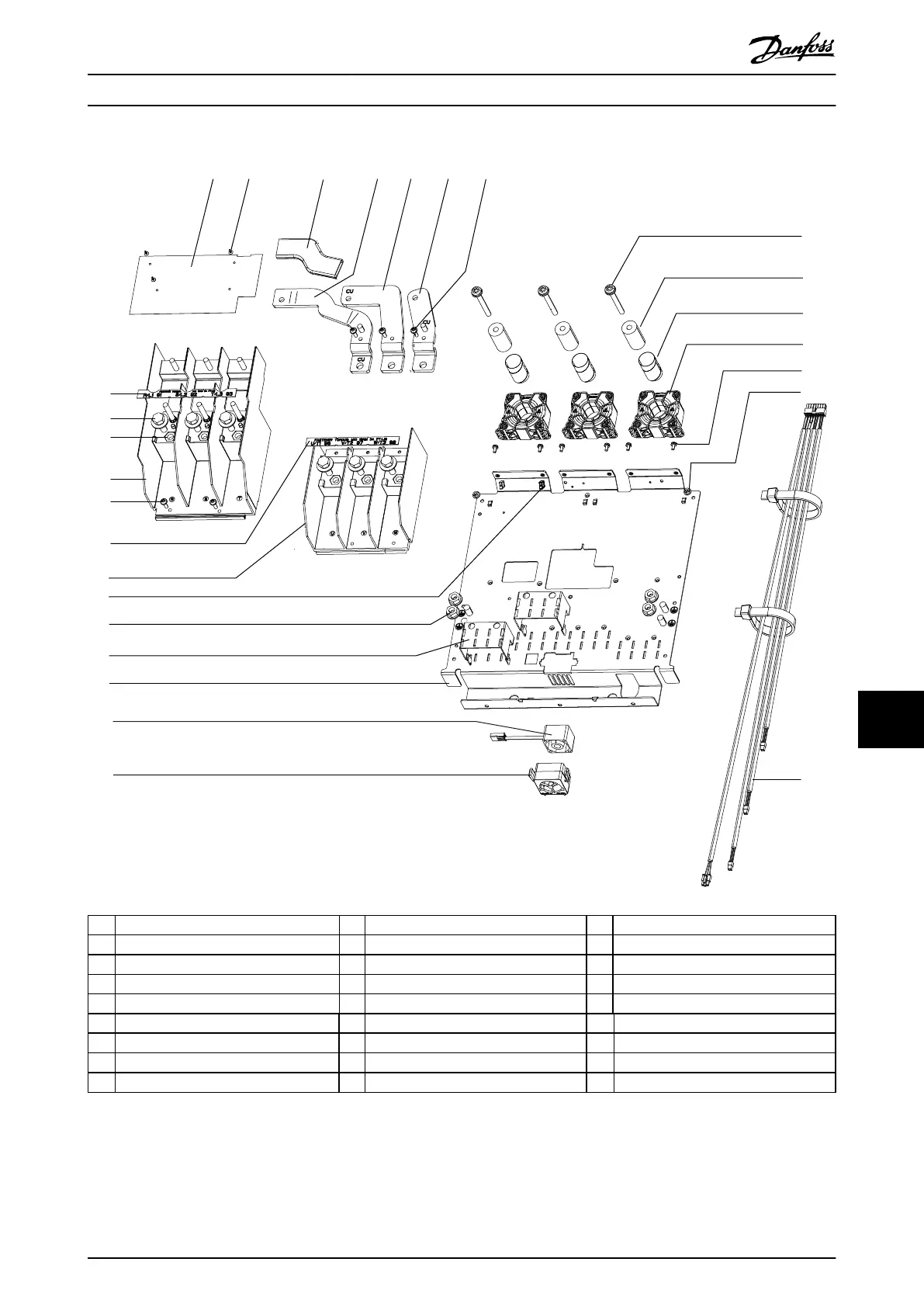

Illustration 11.4 Exploded View of Terminal Blocks and Current Sensors
D2h/D4h/D7h/D8h/J9 Unit Dis... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 195
