Danfoss VLT AutomationDrive FC 302 Service Guide

1
7
8
10
12
6
5
11
9
4
2
3

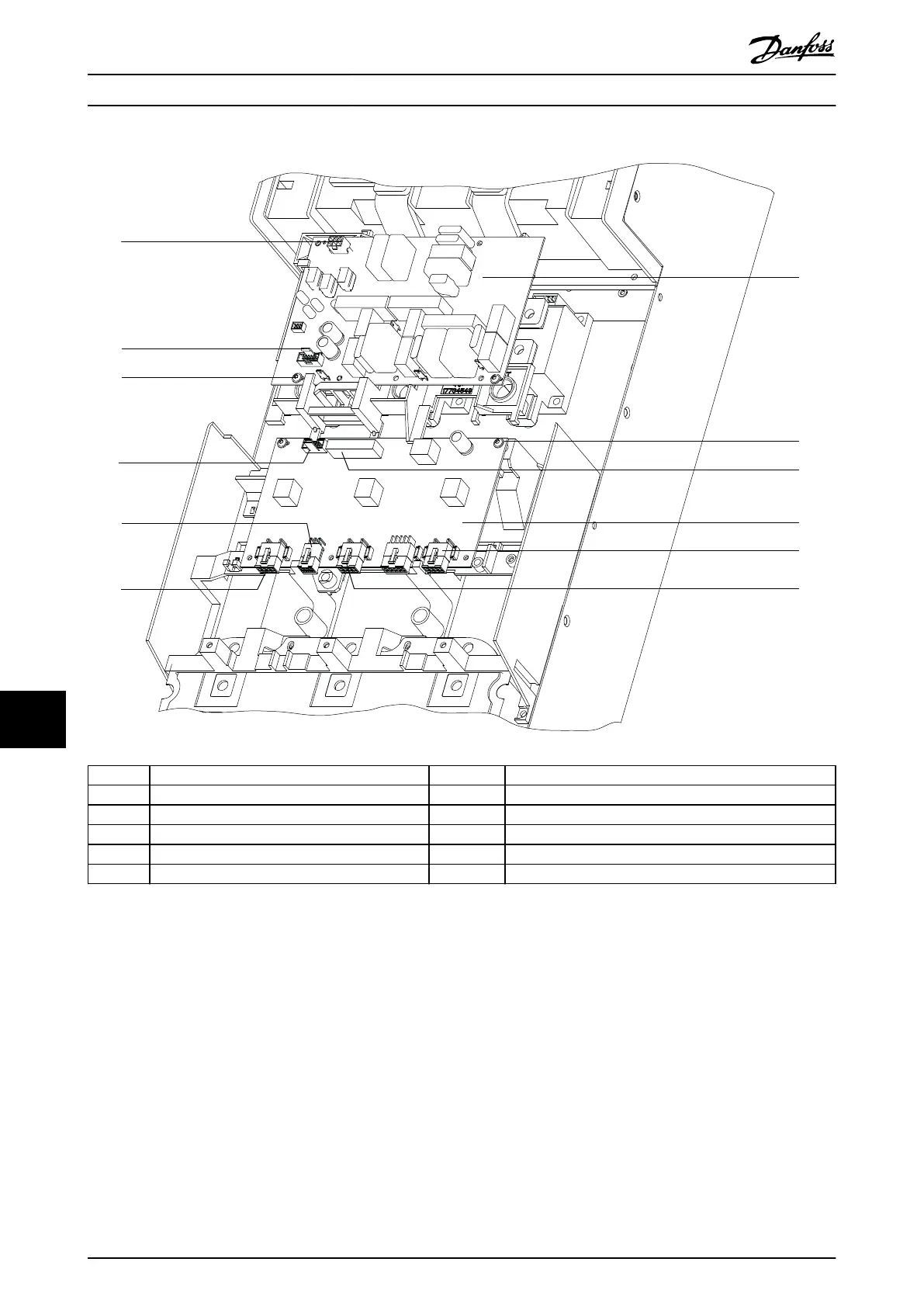

130BF857.10
1 MK1802 7 Inrush card
2 MK1800 8 Screw (T20)
3 Screw (T20) 9 MK101
4 MK102 10 Gate drive card
5 MK100 11 MK701
6 MK501 12 MK601
Illustration 11.9 Inrush Card and Gate Drive Card
D2h/D4h/D7h/D8h/J9 Unit Dis...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
208 Danfoss A/S © 02/2019 All rights reserved. MG94A502
