Danfoss VLT AutomationDrive FC 302

e30bg856.10
1
2
3
4
5
6
7
8
9
10
11
12
1 Balance/high frequency card 7 Insulator sheet 3
2 DC(+) plate 8 Capacitor locking plate
3 Midplate 9 Capacitor gasket
4 DC(-) plate 10 Plug
5 Insulator sheet 1 11 Twistlock DC capacitor
6 Insulator sheet 2 12 Capacitor bank housing

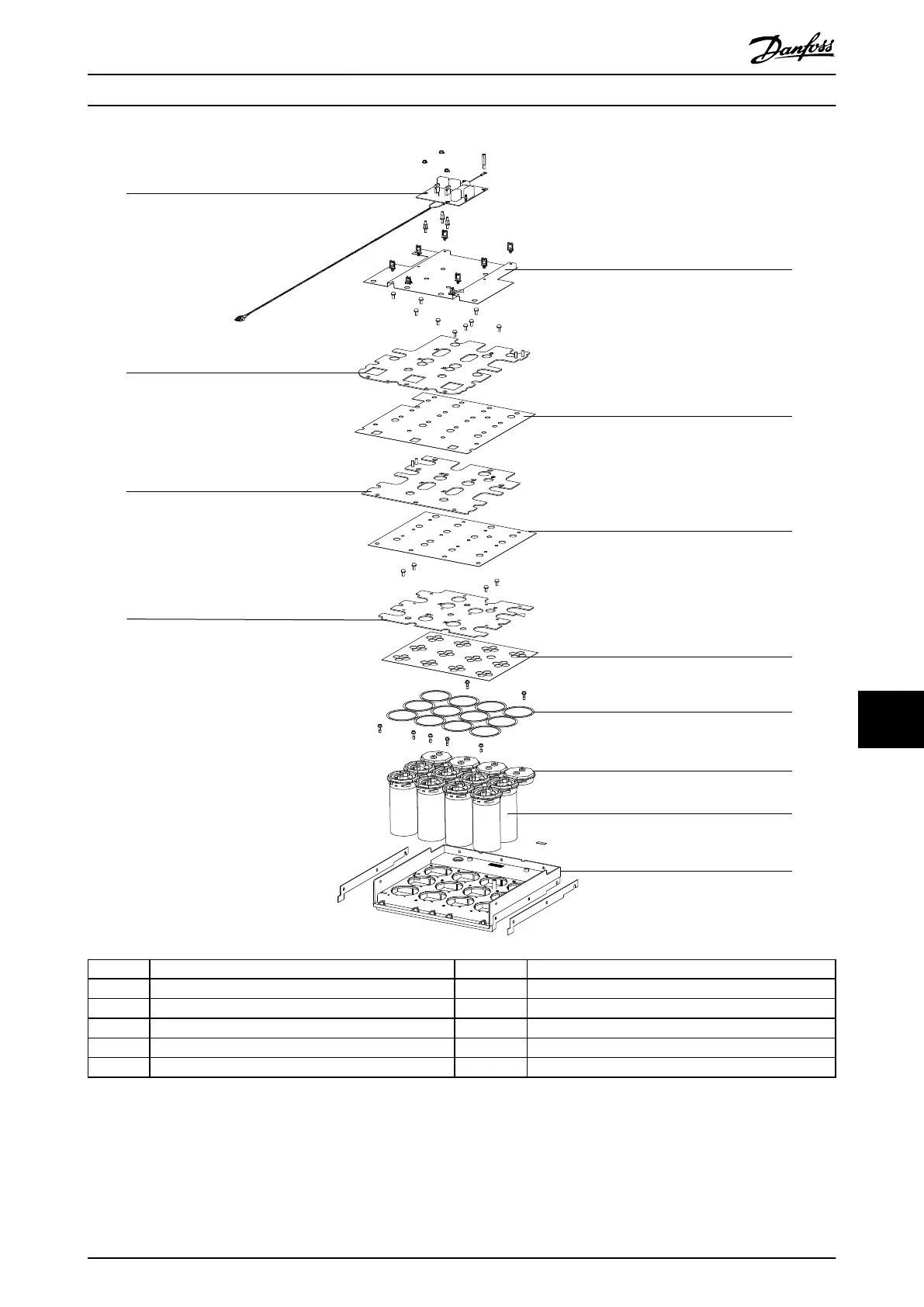

Illustration 11.22 DC Twistlock Capacitors, 240/400 V AC Unit
D2h/D4h/D7h/D8h/J9 Unit Dis... Service Guide
