Danfoss VLT AutomationDrive FC 302

1
2
4
5
6
7
8
9
3
130BF883.10

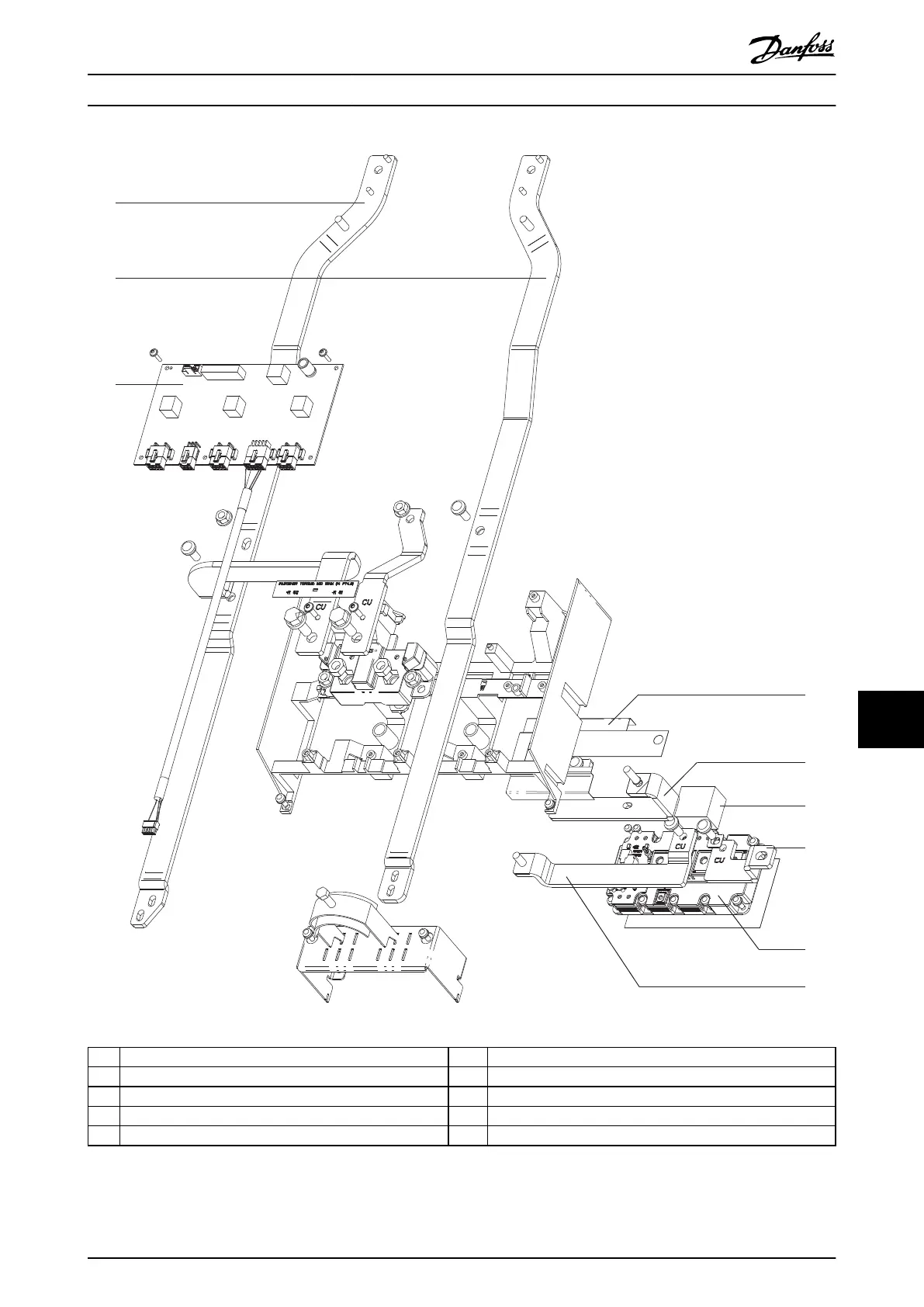

1 DC(+) bus rail 6 Snubber capacitor
2 DC(-) bus rail 7 DC(-) to brake IGBT busbar
3 Gate drive card 8 Brake IGBT module
4 Insulator shield 9 DC(+) to brake IGBT busbar
5 Brake IGBT output to R(-) terminal busbar – –
Illustration 11.30 Brake IGBT Module
D2h/D4h/D7h/D8h/J9 Unit Dis... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 231
