1 Power card mounting plate 10 MK103 (to gate drive card)
2 Power card 11 MK902 (to fan power card MK803)
3 MK102 (connector to control card ribbon cable) 12 Plastic stando
4 Current scaling card 13 Screw (T20)
5 MK100 (current scaling card connector) 14 MK106 (to brake temperature switch)
6 MK105 (to fan power card MK1200) 15 Metal stando (7 mm)
7 MK104 (signal test connector) 16 MK500 (to customer relays)
8 MK502 (to EMC relays) 17 Cable retaining clip
9 MK101 (to current sensors) 18 MK501 (to mixing fans)

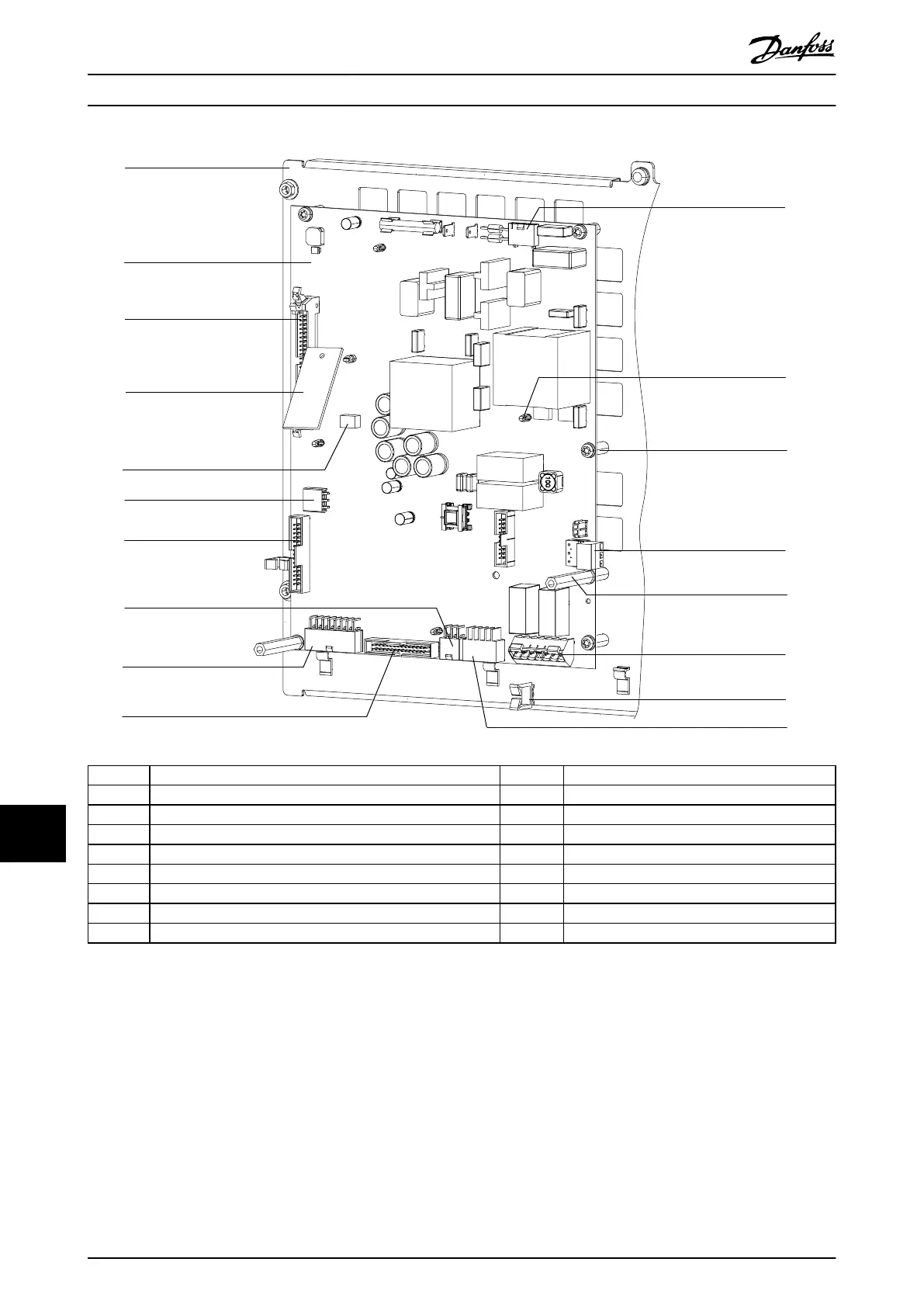

Illustration 13.3 Power Card
