Danfoss VLT AutomationDrive FC 302

130BF766.10
1
2
3
5
6
7
9
10
4
8

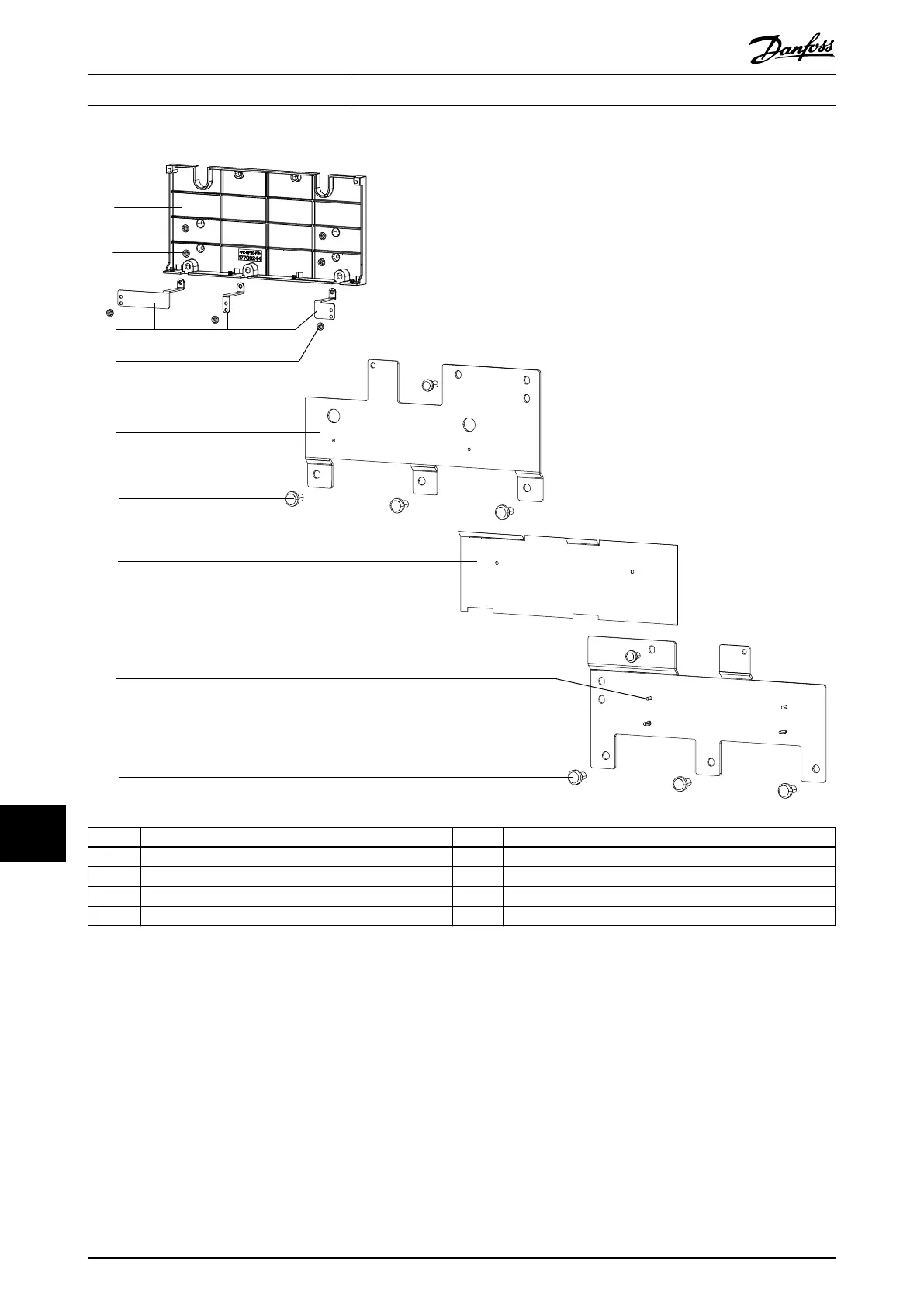

1 Inrush card frame 6 Bus plate screw (T40)
2 Nut (7 mm) 7 Insulator sheet
3 Inrush busbars 8 Insulator sheet alignment pin
4 Nut (7 mm) 9 Rectier(+) bus plate
5 Rectier(-) bus plate 10 Bus plate screw (T40)
Illustration 13.6 Inrush Card Frame and Rectier Bus Plates
E1h–E4h Drive Disassembly a...
