130BF775.10

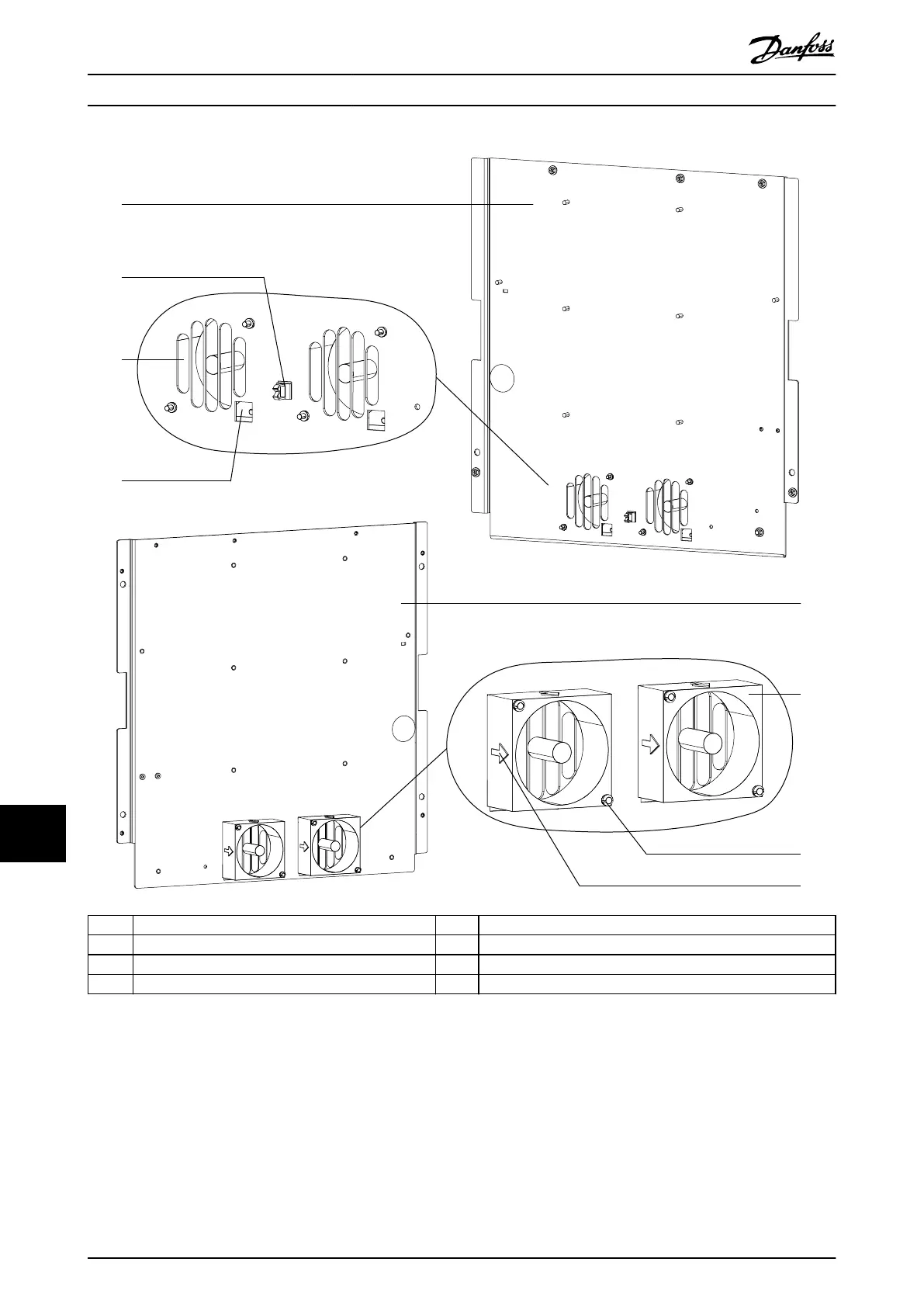

1 Upper input plate (front view, with options not shown) 5 Upper input plate (back view)
2 Cable retaining clip 6 Mixing fan
3 Mixing fan vent 7 Screw (T20)
4 Cable access hole 8 Alignment arrow
Illustration 13.10 E1h/E3h Input Plate Mixing Fan (E2h/E4h is Similar).
