130BF928.10
1
2
3
4
5
6
7
8
9
10
11
12

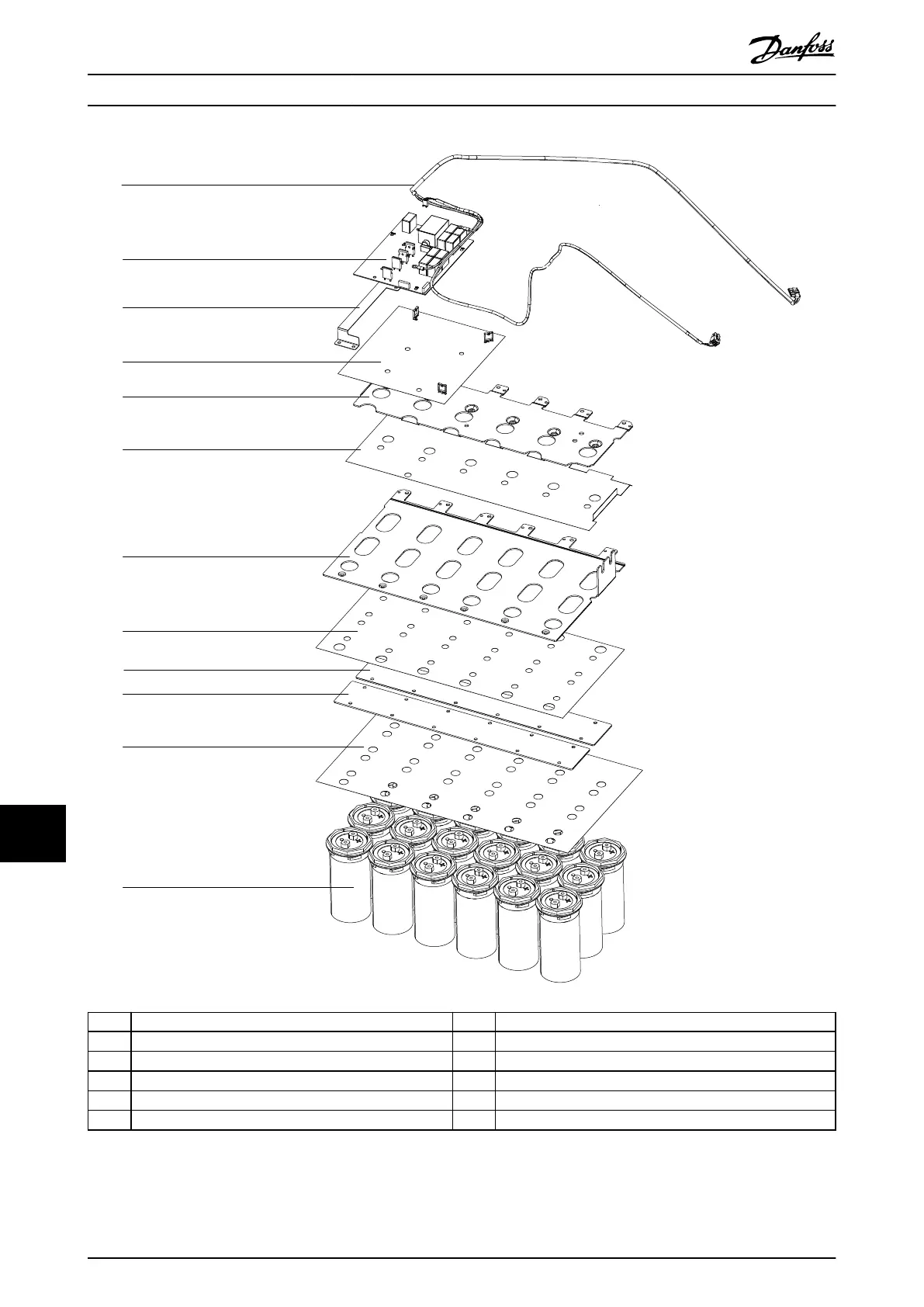

1 DC power cable (to power card shelf) 7 DC(-) bus plate
2 Balance/high frequency card 8 Insulator sheet 2
3 Ground bar 9 Midplate 1 (upper)
4 Insulator sheet (for balance/high frequency card) 10 Midplate 2 (lower)
5 DC(+) bus plate 11 Insulator sheet 3
6 Insulator sheet 1 12 DC capacitors
Illustration 13.21 E1h/E3h Capacitor Bank, 525–690 V AC (T7), 18 DC Capacitors
E1h–E4h Drive Disassembly a...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
300 Danfoss A/S © 02/2019 All rights reserved. MG94A502
1313
