Danfoss VLT AutomationDrive FC 302

etalp poT
BRF
Microswitch
Connector
TB11
FOR DC FUSE
Regen -
Regen +
yaleR remotsuC
POWER CARD PCA2
INRUSH PCA4
GATEDRIVE PCA5
L1
DC INDUCTOR
BAL/HF
PCA7
IGBT1
TB4
TB2
IGBT2 IGBT3BRAKE IGBT
MODULE
IGBT4
TOP FAN (IP20)
DOOR FAN (IP54)
F3
MIXING FAN
CBANK 1
TB1
FUSE OPTION
F1
130BF087.10

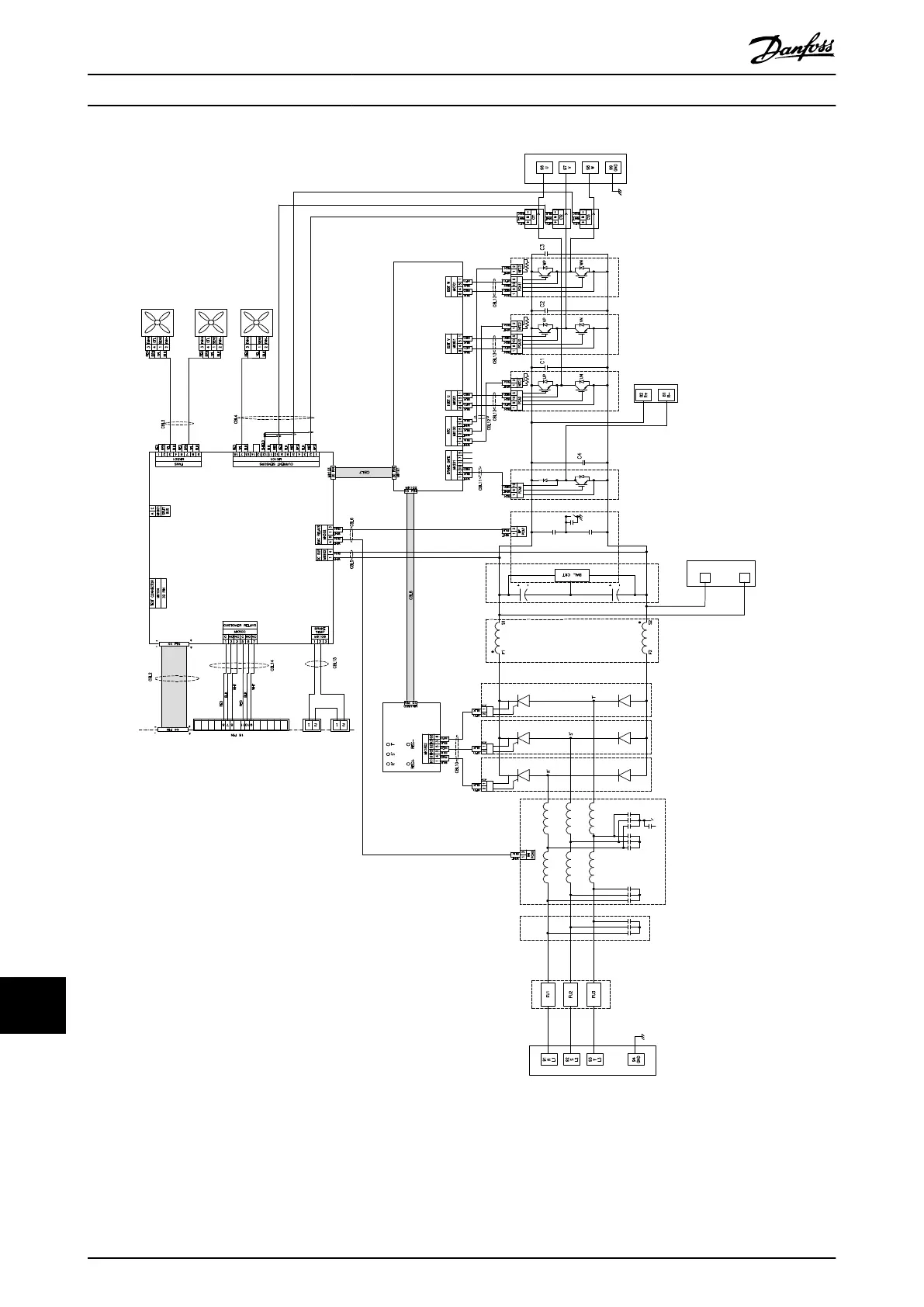

Illustration 16.3 Internal Block Diagram of Parallel Drive Module
Block Diagrams
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
