Danfoss VLT AutomationDrive FC 302 Instruction Manual

1
2
5
6
7
8
9
10
11
12
4
3
130BX331.11

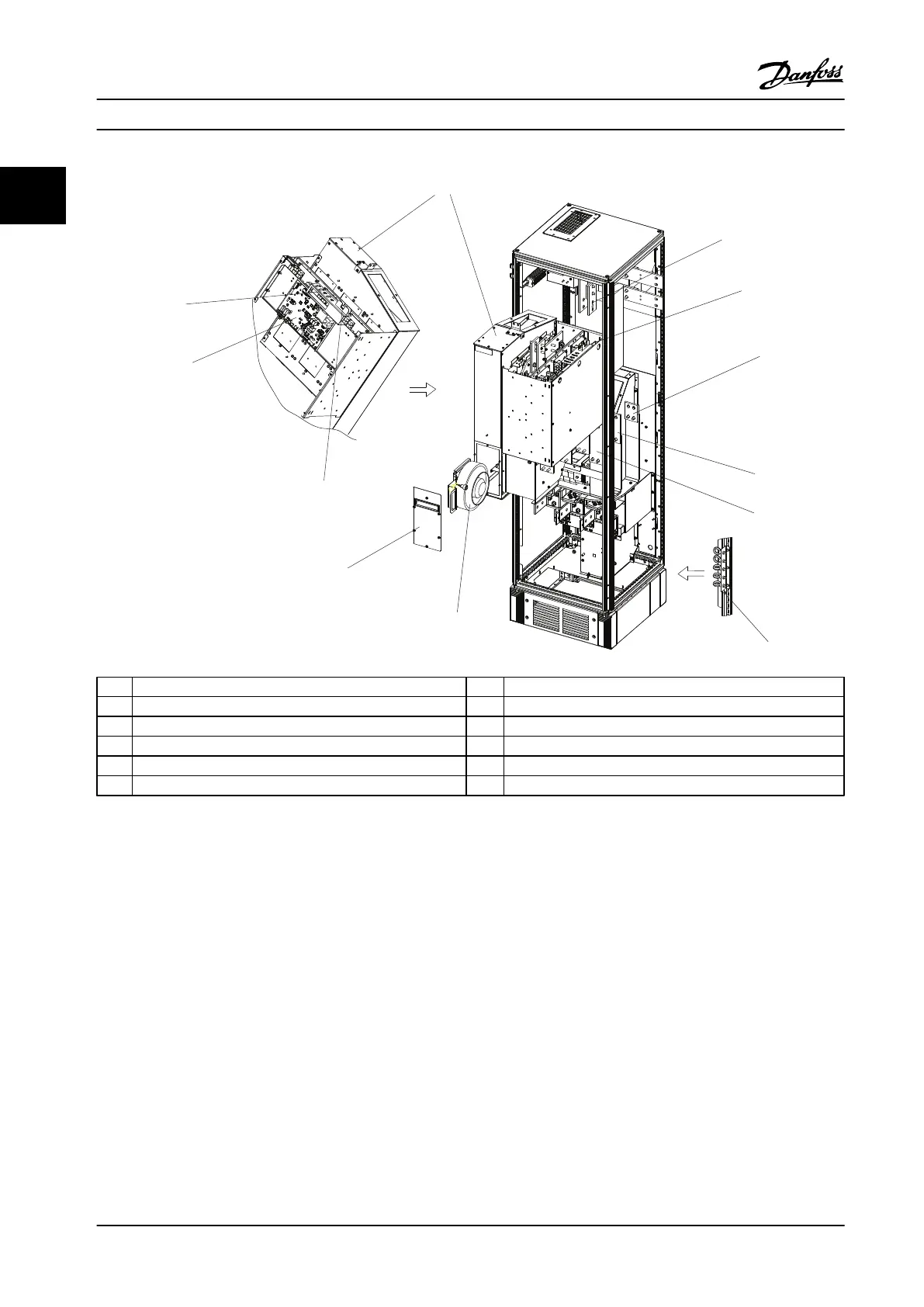

1 Rectifier module 7 Module lifting eye bolts (mounted on a vertical strut)
2 DC bus bar 8 Module heatsink fan
3 SMPS fuse 9 Fan door cover
4 (Optional) back AC fuse mounting bracket 10 SMPS fuse
5 (Optional) middle AC fuse mounting bracket 11 Power card
6 (Optional) front AC fuse mounting bracket 12 Panel connectors
Figure 2.7 Frame Size F18 Rectifier Cabinet
