3.3.5 Terminal Locations - Frame Size E9
130BC604.10
383
[15.1]
518.0
[20.4]
90.0
[3.5]
153.8
[6.1]
517.5
[20.4]
225.0
[8.9]
112.5
[4]
900.0
[35.4]
368.3
[14.5]
323.3
[12.7]
180.0
[7.1]
90.0
[3.5]
168.7
[6.6]
MAINS
INPUT TERMINAL
MOTOR
OUTPUT TERMINAL

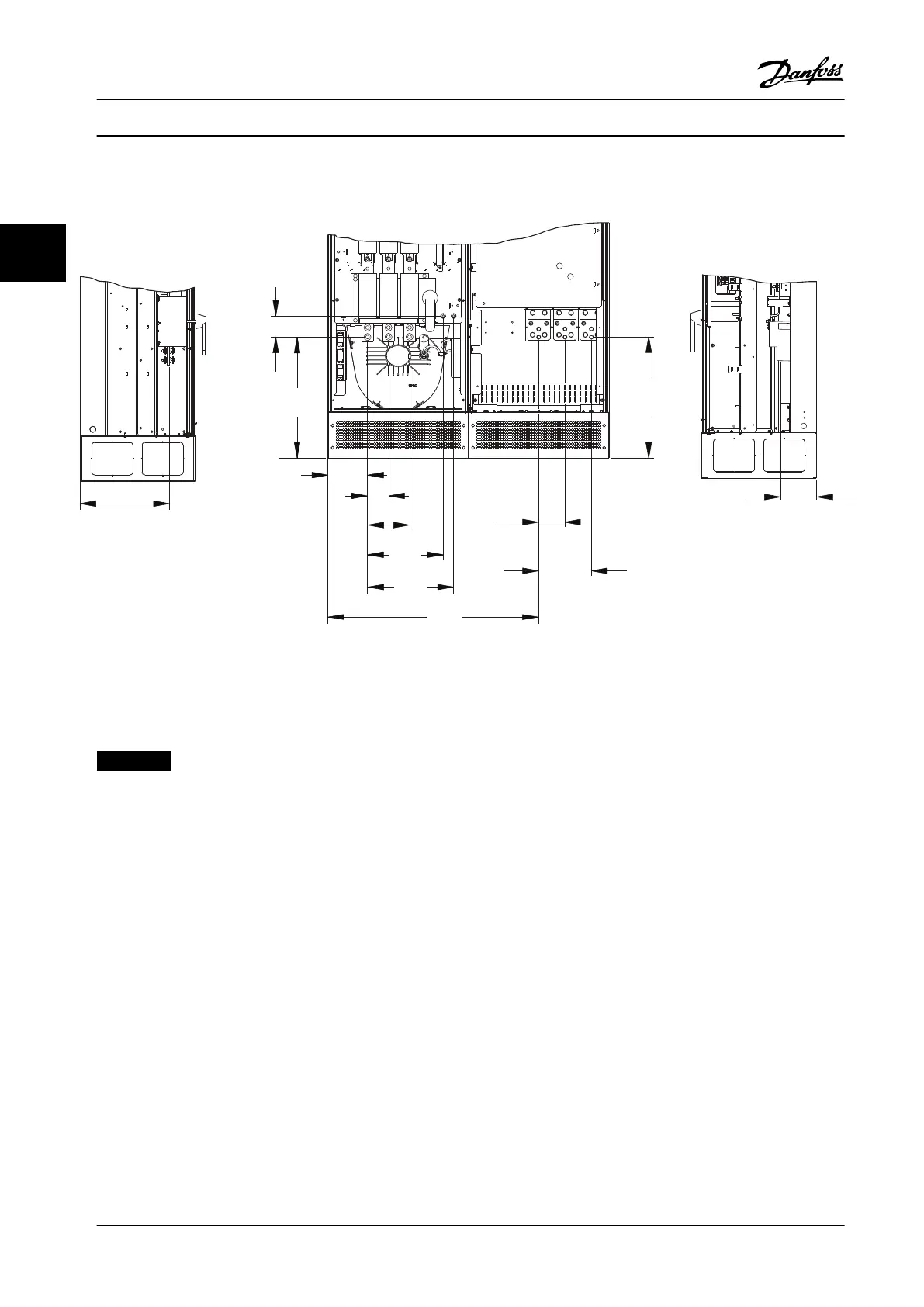

Figure 3.14 Frame Size E9 Terminal Locations
Allow for bend radius of heavy power cables.
NOTICE!
All E-frames are available with standard input terminals, fuse, or disconnect switch
Installation
VLT
®
AutomationDrive FC 302 Low Harmonic Drive
132–630 kW
30 Danfoss A/S © Rev. 04/2015 All rights reserved. MG37A322
