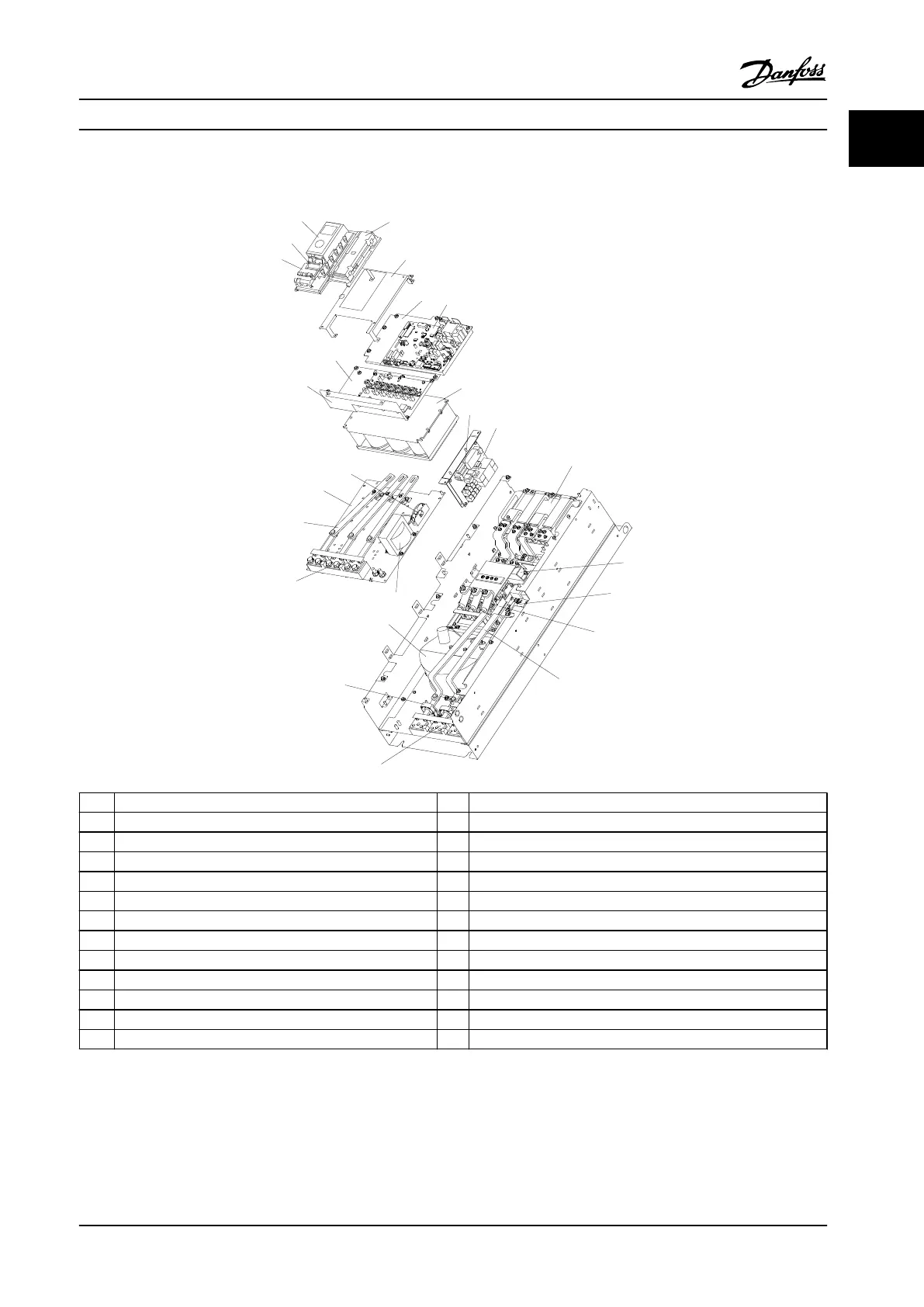

1.3.3 Exploded View Drawings
130BX167.10
1
19
13
12
25
5
4
22
21
20
18
17
3
16
15
14
11
24
2
10
9
8
7
6
23
1 Control card 14 SCR/diode module
2 Control input terminals 15 IGBT output bus bar
3 Local control panel (LCP) 16 Output motor terminals
4 Control card C option 17 Current sensor
5 Mounting bracket 18 Fan assembly
6 Power card mounting plate 19 Fan transformer
7 Power card 20 AC input terminals
8 Capacitor bank assembly 21 AC input bus bar
9 Soft-charge fuses 22 Input terminal mounting plate assembly
10 Soft-charge card 23 Fan fuse
11 DC inductor 24 Capacitor bank cover plate
12 Soft charge module 25 IGBT gate drive card
13 IGBT module
Figure 1.2 Frame Size D13 Drive Enclosure
Introduction Installation Manual
MG37A322 Danfoss A/S © Rev. 04/2015 All rights reserved. 7
1 1
