Danfoss VLT AutomationDrive FC 302

130BA150.10
9 - 10 mm
(0.37 in)

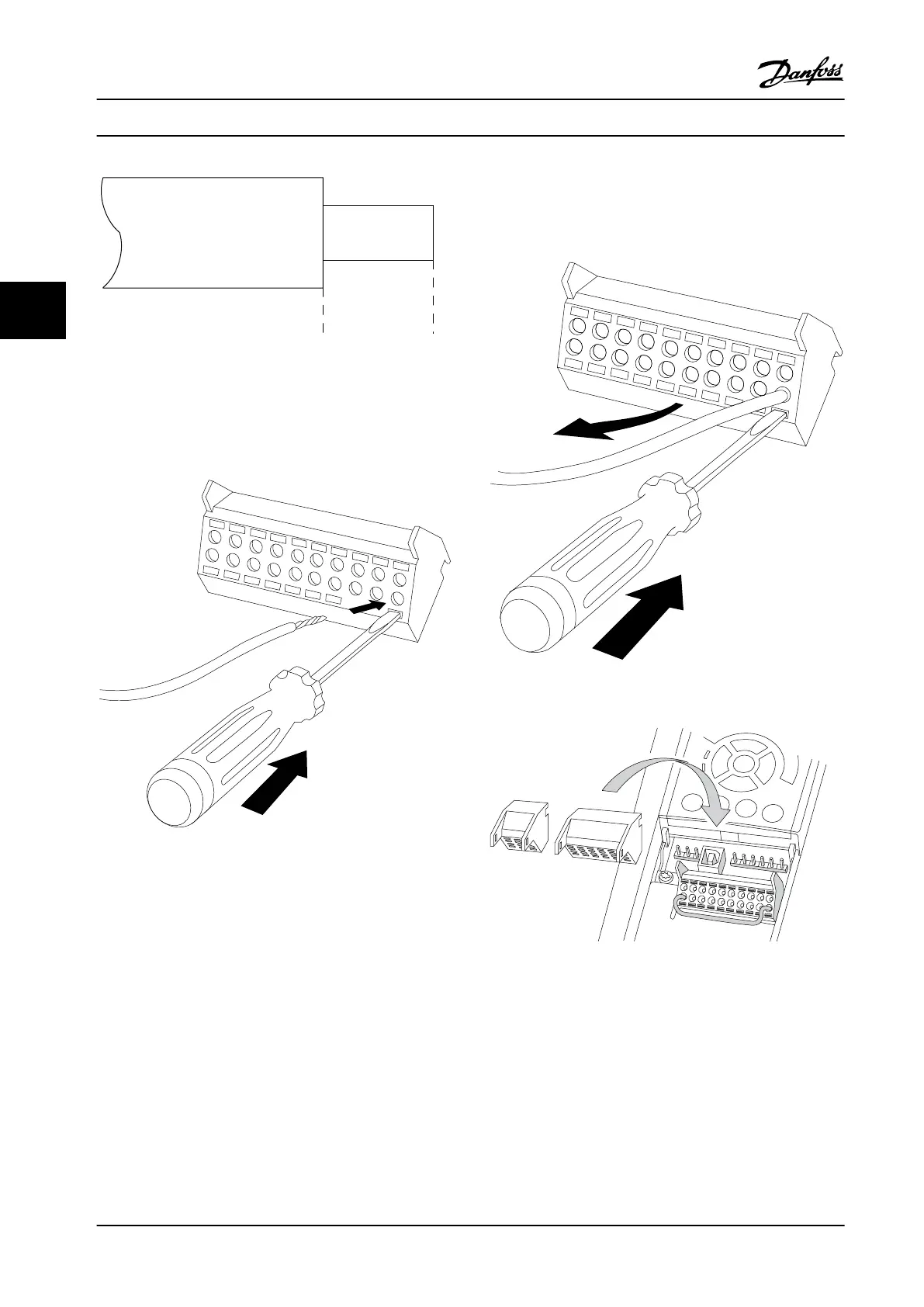

Figure 4.9 Length to Strip the Insulation
2. Insert a screwdriver (max. 0.016x0.1 in [0.4x2.5
mm]) in the square hole.
3. Insert the cable in the adjacent circular hole.
130BT312.10
Figure 4.10 Inserting the Cable in the Terminal Block
4. Remove the screwdriver. The cable is now
mounted in the terminal.
To remove the cable from the terminal:
1. Insert a screwdriver (max. 0.016x0.1 in [0.4x2.5
mm]) in the square hole.
2. Pull out the cable.
130BT311.10
Figure 4.11 Removing the Screwdriver after Cable Insertion
130BT306.10
Figure 4.12 Control Terminal Locations
Electrical Installation
VLT
®
AutomationDrive FC 302 Low Harmonic Drive
132–630 kW
