A Pump on (wake)
C Falling fluid level
B Pump off (sleep)
D Rising fluid level
Illustration 6: Rising Pressure (Tank Empty)
6.5.2.2 Pressure-based Operation
2
1
4
6 6
3
A
D
B
C
E
F
K
G
L
H
I
J
M
N
O
e77ha750.10
20 mA
4 mA
5 7
Analog output
Time
1 Parameter 32-1 High Pressure Trip Level
3 Pump wake (parameter 33-2 Start Pressure Level)
5 Parameter 33-5 Stop Response Delay
7 Parameter 6-2 Aute-Reset Delay
B Pipe filling
D Pressure at stop threshold, pump stops (sleep)
F Pressure below start threshold, start response delay
H Pump running
J Falling system pressure
L Low-pressure trip level
N Pump wakes
2 Pump sleep (parameter 33-4 Stop Pressure Level)
4 Parameter 32-4 Low Pressure Trip Level
6 Parameter 33-3 Start Response Delay
A Smart card control enabled, pump starts
C Normal pressure variation
E Falling system pressure
G Pump wakes
I Normal pressure variation
K Pressure below start threshold, start response delay
M Soft starter auto-reset
O Normal operation

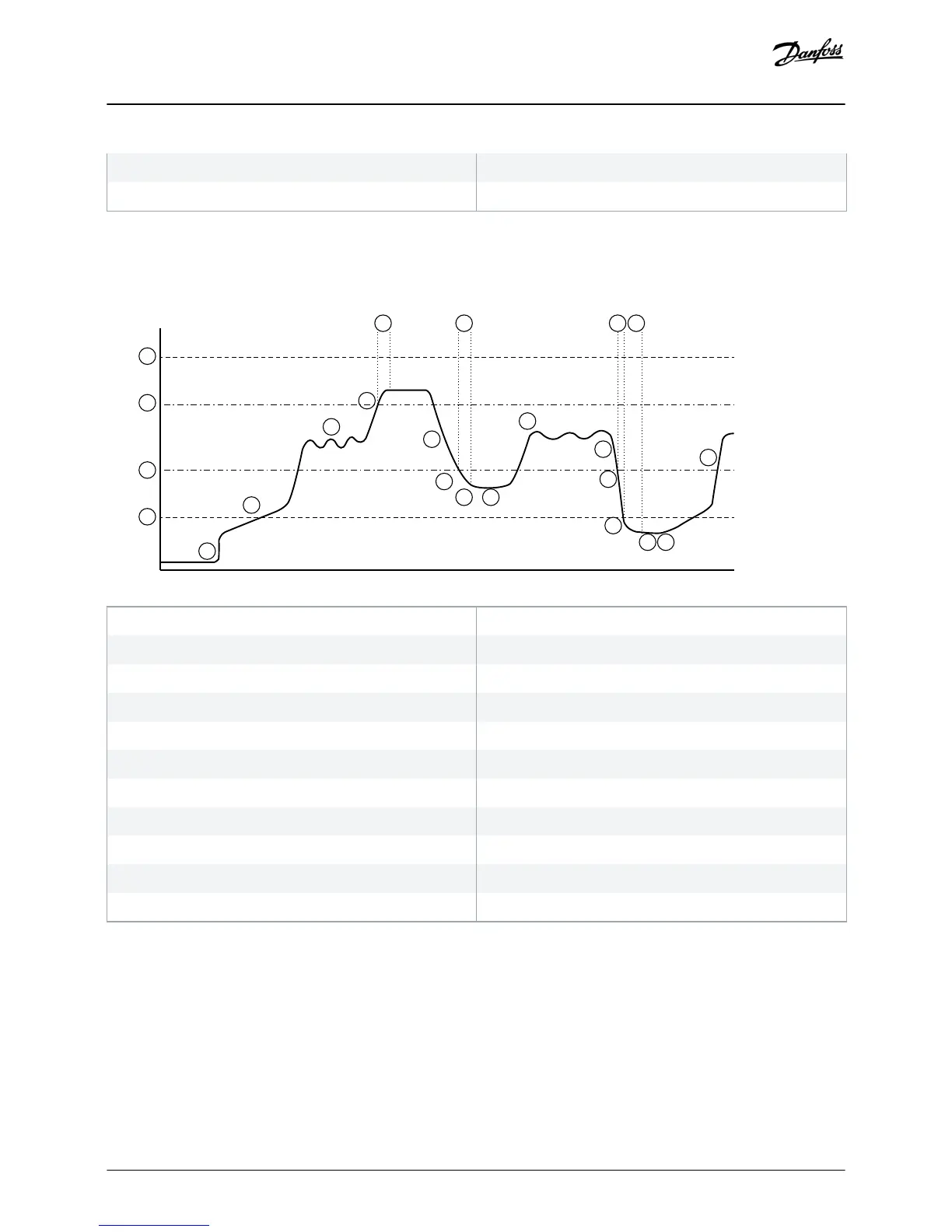

Illustration 7: Example of Pressure-based Operation
Configuration
Installation Guide | Pumping Smart Card
AN279052730268en-000102 / 175R1183
22 | Danfoss A/S © 2018.10
