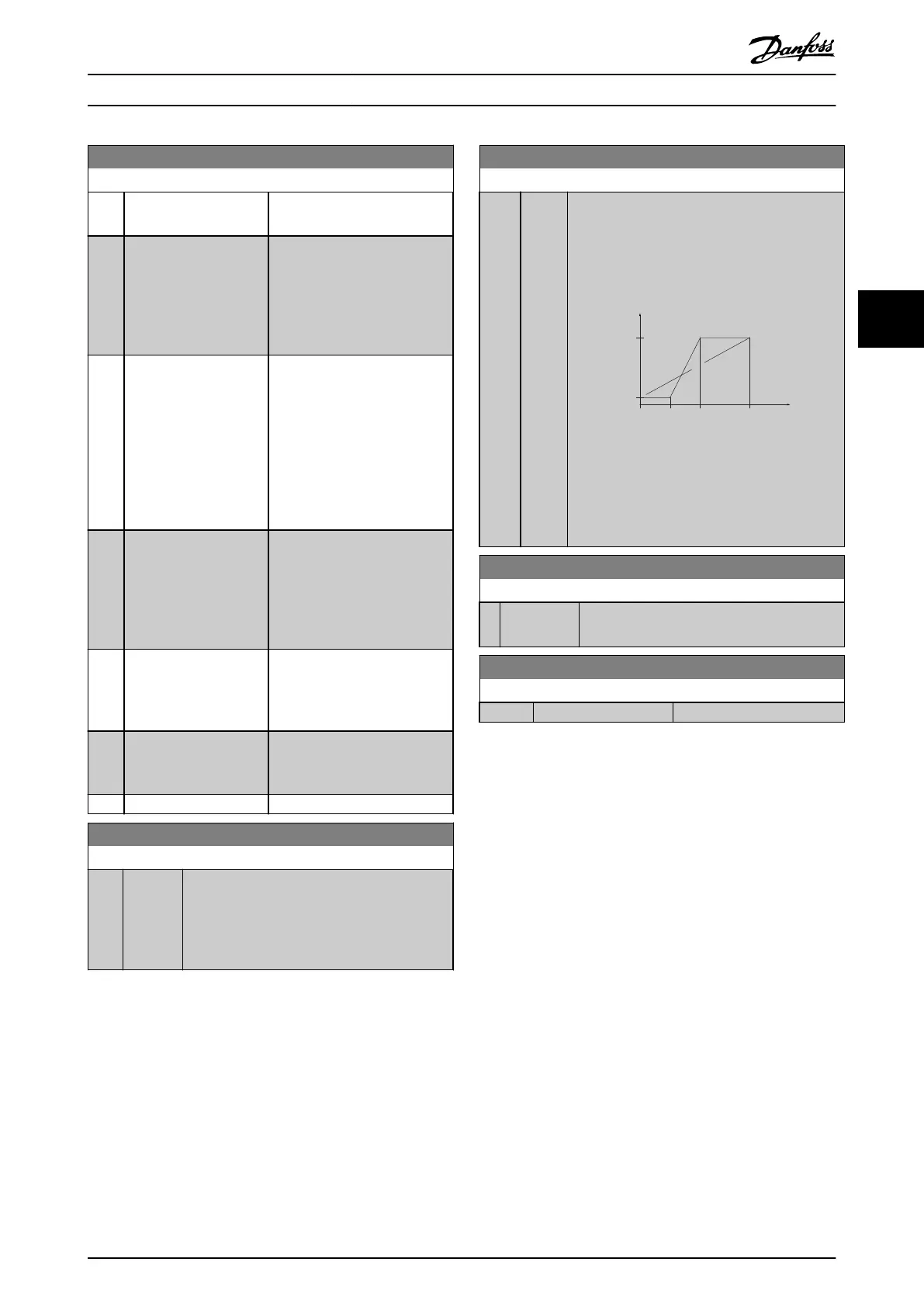

6-92 Terminal 42 Digital Output
Option: Function:
Mode is set to [2] Position
Control.
[171] Target Position Reached The target position is reached.
This option is only eective
when
parameter 37-00 Application
Mode is set to [2] Position
Control.
[172] Position Control Fault A fault occurred in the
positioning process. Refer to
parameter 37-18 Pos. Ctrl Fault
Reason for details about the
fault. This option is only
eective when
parameter 37-00 Application
Mode is set to [2] Position
Control.
[173] Position Mech Brake Selects mechanical control for
positioning. This option is only
eective when
parameter 37-00 Application
Mode is set to [2] Position
Control.
[193] Sleep Mode The frequency converter/system
has entered sleep mode. See
parameter group 22-4* Sleep
Mode.
[194] Broken Belt Function A broken-belt condition has
been detected. See parameter
group 22-4* Sleep Mode.
[198] Drive Bypass
6-93 Terminal 42 Output Min Scale
Range: Function:
0 %* [0 -
200 %]
Scale for the minimum output (0 mA or 4 mA)
of the analog signal at terminal 42. Set the
value to be the percentage of the full range of
the variable selected in parameter 6-91 Terminal
42 Analog Output.
6-94 Terminal 42 Output Max Scale
Range: Function:
100
%*
[0 -
200 %]
Scale for maximum output (20 mA) of the scaling
at terminal 42. Set the value to be the
percentage of the full range of the variable
selected in parameter 6-91 Terminal 42 Analog
Output.
(mA)
0%
20
0/4
100%
Current
Analog
output
Min Scale
par. 6-93
Variable
for
output
example:
Power
Analog
Output
Max Scale
par. 6-94
130BB772.10
Illustration 4.14 Output Scale versus Current
6-96 Terminal 42 Output Bus Control
Range: Function:
0* [0 - 16384 ] Holds the analog output at terminal 42 if
controlled by bus.
6-98 Drive Type
Range: Function:
0* [0 - 0 ]
Parameter Descriptions Programming Guide
MG07C102 Danfoss A/S © 12/2015 All rights reserved. 65
4 4
